StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - DisplayPort Certified - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - Latching DP Connector

StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - DisplayPort Certified - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - Latching DP Connector (DP2VGA2)

Key Features

• DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display/projector supporting 2048x1280, 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 9" (22.5cm) cable / DisplayPort Certified
• COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
• CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA display adapter; Compact design makes it easy to travel to and from office or home

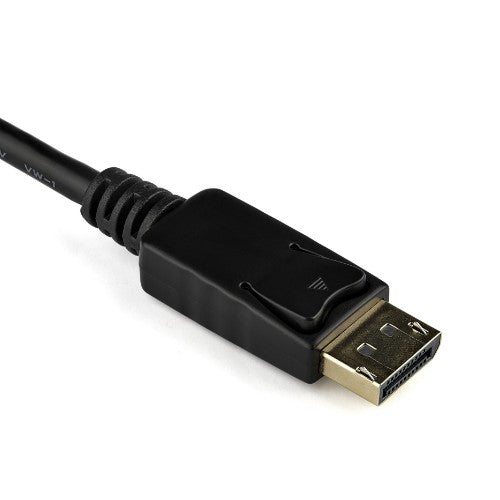

• LATCHING DISPLAYPORT & SCREW LOCKING VGA: Video adapter has latching DP connector to ensure a solid host connection / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / Tested w/ VGA cables up to 25ft
• EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female

Description

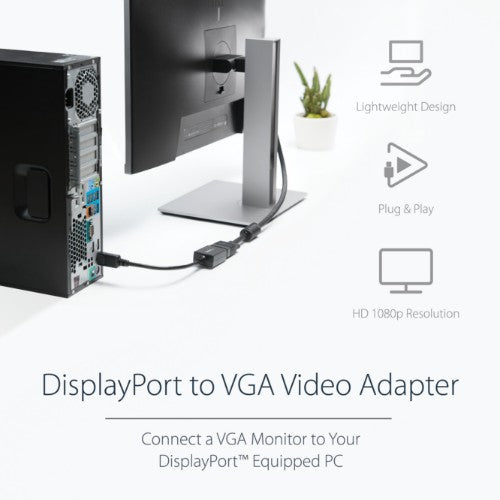

Connect a VGA monitor to a DisplayPort-equipped PC

This DisplayPort to VGA adapter lets you connect your DP computer to a VGA monitor or projector. The adapter works with DisplayPort computers like your HP Elitebook Revolve 810 G3.

Easily connect your DisplayPort computer to a VGA display

The DP to VGA adapter lets you connect your DisplayPort laptop or desktop computer to a VGA display. The adapter supports plug-and-play connectivity ensuring a hassle-free setup.

Works with legacy VGA monitors

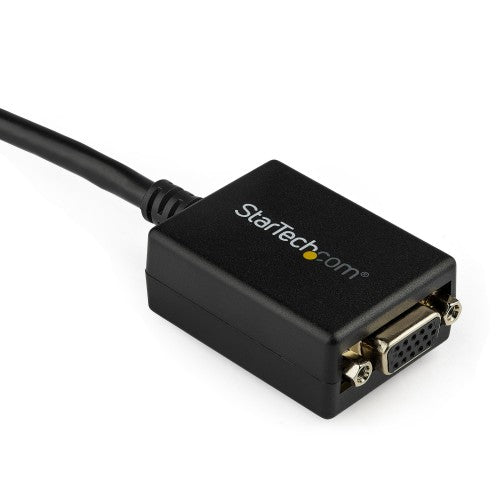

The DisplayPort adapter makes your DP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won’t get disconnected.

Designed for maximum portability

The DisplayPort to VGA converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort laptop, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Crystal-clear picture quality

With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DP connection to deliver every detail in stunning high-definition.

The DP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Country of origin	Canada
Product colour	Black
Cable length	0.225 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2048 x 1280 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Supported video modes	1080p
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	CE, RoHS
Technical details
Country of origin	Canada
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Other features

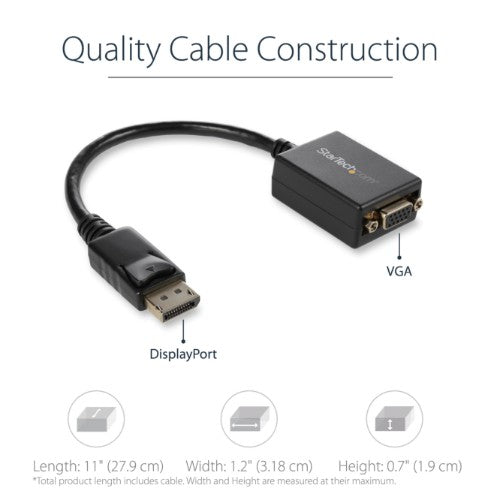

Width	31.8 mm
Height	19 mm
Depth	279 mm
Weight & dimensions
Width	31.8 mm
Height	19 mm
Depth	279 mm
Weight	43 g
Package width	200 mm
Package depth	220 mm
Package height	21 mm
Package weight	52 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	21 mm
Package weight	52 g
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	515 mm
Master (outer) case height	214 mm
Products per master (outer) case	140 pc(s)
Harmonized System (HS) code	84733080
