StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - Durable - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - DP 1.2 to VGA - Latching DP Connector

StarTech.com DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - Durable - DP/DP++ Source to VGA Monitor Cable Adapter Dongle - DP 1.2 to VGA - Latching DP Connector (DP2VGA)

Key Features

• DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 3" (8cm) attached cable
• COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

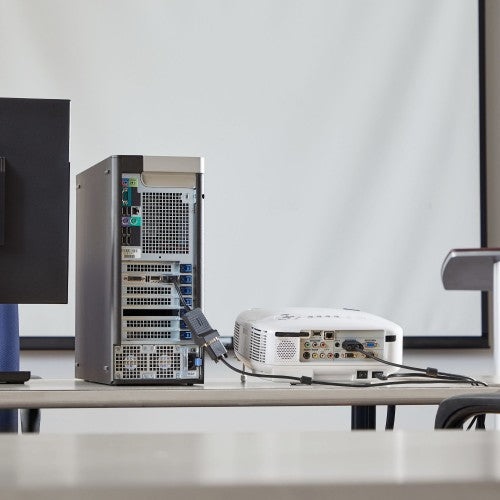

• CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using the DP to VGA display adapter; Durable housing makes it ideal for travel to & from office/home /Tested w/ VGA cables up to 25'

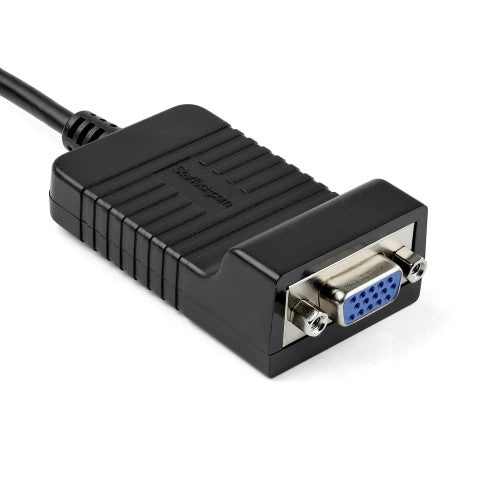

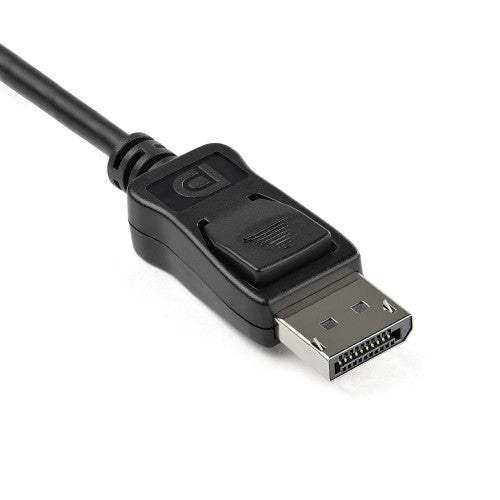

• LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / EMI shielding protects from line noise/distortion
• EASY TO USE: With no software or drivers required, the DP to VGA adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female video adapter dongle

Description

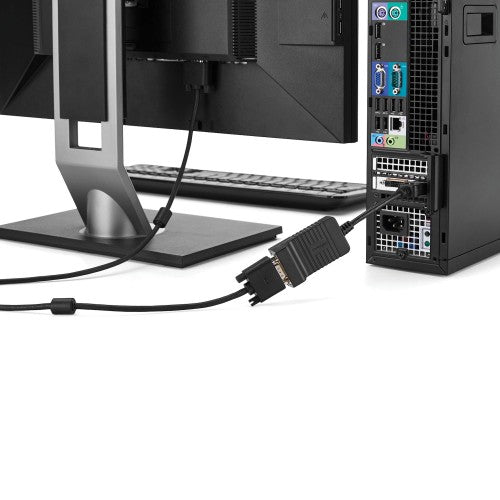

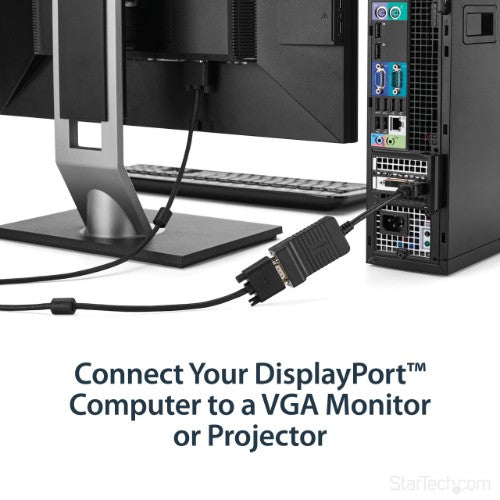

Connect your VGA monitor to a DisplayPort equipped computer

The StarTech.com DP2VGA DisplayPort to VGA adapter lets you connect a VGA computer monitor to a DisplayPort video card or other DisplayPort source, eliminating the expense of upgrading the monitor for compatibility.

The DP to VGA adapter uses an integrated chip to provide an active digital to analog conversion.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.08 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2048 x 1280 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Weight & dimensions
Weight	68 g
Package width	12 mm
Package depth	216 mm
Package height	192 mm
Package weight	72 g
Packaging data
Package width	12 mm
Package depth	216 mm
Package height	192 mm
Package weight	72 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	498 mm
Master (outer) case length	332 mm
Master (outer) case height	234 mm
Products per master (outer) case	90 pc(s)
Harmonized System (HS) code	84733080
