Tripp Lite U444-06N-HDB-AM USB-C to HDMI 4K Adapter with Alternate Mode - DP 1.2, Black

USB-C to HDMI 4K Adapter with Alternate Mode - DP 1.2, Black

Key Features

• Transmits video signals from sources supporting USB DisplayPort Alt Mode
• Delivers UHD picture quality at resolutions up to 4K @ 24/25/30 Hz
• Supports USB 3.2 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
• Reversible USB-C plug connects in either direction for immediate no-fuss use
• Easy installation with plug-and-play operation—no software required

Description

USB-C to HDMI Cable Connects a 4K HDMI Display to Your USB-C or Thunderbolt 3 Device

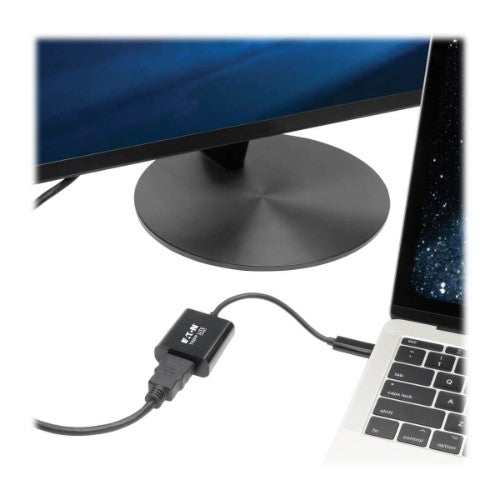

This USB 3.2 to HDMI adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a 4K HDMI-enabled television, monitor or projector. It’s ideal for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 4K.

Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 4K HDMI Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (sold separately). The HDMI port supports UHD video resolutions up to 3840 x 2160 (4K) at 24/25/30 Hz and lush 7.1 surround sound. It also supports 36-bit Deep Color (12 bits per channel) and per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR). This USB-C to HDMI cable is backward compatible with non-4K displays.

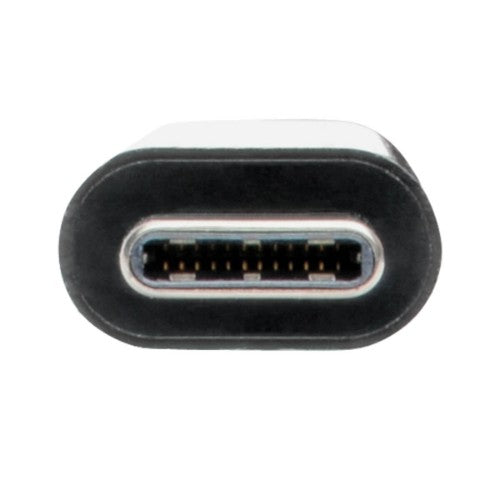

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package
The plug-and-play USB 3.2 to HDMI adapter requires no software, drivers or external power. It’s about half the size of a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go.

3-Year Warranty and Environmentally Responsible Design
The U444-06N-HDB-AM comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting commitment to environmental responsibility.

Specifications

Features
Country of origin	Vietnam
HDMI version	1.4
Product colour	Black
Cable length	0.15 m
Connector 1	HDMI Type A (Standard)
Connector 2	USB Type-C
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Nickel
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2160
HDCP	Yes
Connector 1 form factor	Straight
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Technical details
Country of origin	Vietnam
Harmonized System (HS) code	84733080
Other features
Width	12.5 mm
Height	6.7 mm
Depth	35 mm
Weight & dimensions
Width	12.5 mm
Height	6.7 mm
Depth	35 mm
Weight	20 g
Package width	119.9 mm
Package depth	100.1 mm
Package height	20.1 mm
Package weight	30 g
Packaging data
Package width	119.9 mm
Package depth	100.1 mm
Package height	20.1 mm
Package weight	30 g
Logistics data
Master (outer) case width	255 mm
Master (outer) case length	119.9 mm
Master (outer) case height	115.1 mm
Master (outer) case gross weight	520 g
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332210668
Harmonized System (HS) code	84733080
