Sony SRG-A40 8.5 MP White 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5")

SRG-A40 PTZ camera with PTZ Auto Framing

Key Features

• High speed pan/tilt
• Wide angle zoom lens
• Powerful Zoom, wide angle
• PTZ Auto Framing
• Preset camera positions
• Picture Freeze Preset
• AF, AE and AWB
• PTZ Motion Sync
• Simple, flexible setup
• Single network cable
• HDMI/SDI outputs

Description

SRG-A40 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.

A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.

PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.

Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.

Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.

Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).

Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller, just like professional broadcast cameras.

Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.

Light, compact design
The camera’s stylish, compact body fits unobtrusively into any environment.

Choice of colour finishes
The camera is available in a choice of black or while colour finishes, to suit the needs of any application.

Specifications

Camera
Megapixel (approx.)	8.5 MP
Sensor type	CMOS
Optical sensor size	25.4 / 2.5 mm (1 / 2.5")
Optical zoom	30x
Focal length range	4.4 - 88 mm
Minimum illumination	1.6 lx
White balance	Indoor, One push, Outdoor, Auto, Manual, Daylight
Focus adjustment	Auto/Manual
Gain control type	Auto/Manual
Horizontal field of view (wide)	70°
PTZ control	Yes
Minimum working distance (wide)	8 cm
Maximum working distance (tele)	80 cm
Aperture range (F-F)	2 - 3.8
Auto exposure	Yes
Slowest camera shutter speed	1 s
Fastest camera shutter speed	1/10000 s
Light exposure modes	Manual, Auto, Shutter priority AE
Flip & mirror	Yes
PTZ protocols	VISCA
Camera type	Single camera
Zoom capability	Yes
Video
Maximum video resolution	3840 x 2160 pixels
Maximum frame rate	60 fps
Video formats supported	H.264, H.265
Supported graphics resolutions	3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720)
HD type	4K Ultra HD
Number of TV lines	1700
Design
Product colour	White
Image stabilizer	Yes
Tilt angle range	-20 - 90°
Pan range	-170 - 170°
Tilt speed (min)	0.5 °/sec
Tilt speed (max)	126 °/sec
Pan speed (min)	0.5 °/sec
Pan speed (max)	300 °/sec
Tally light	Yes

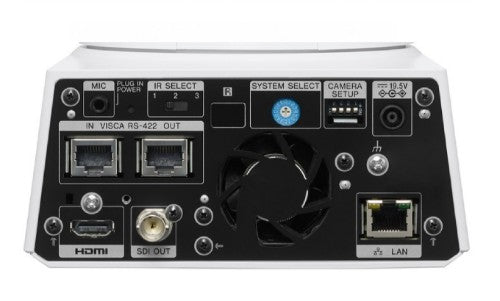

Ports & interfaces
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
3G-SDI output	Yes
Microphone in	Yes
VISCA input ports	1
VISCA output ports	1
Power
DC input voltage	19.5 V
Power consumption (typical)	80 W
Power source type	AC, DC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
System requirements
Windows operating systems supported	Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Audio
Audio codecs	AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP)
Audio channels	2
Protocols
Supported network protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
Network
Supported network protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
Multi-stream capability	3
Bit rate range	512 - 50000 Kbit/s
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Packaging content
Cables included	AC, HDMI
Power supply included	Yes
Warranty card	Yes
Screws included	Yes
Mounting brackets included	Yes
Performance
Auto framing	Yes
Weight & dimensions
Width	156.7 mm
Depth	200 mm
Height	184 mm
Weight	2 kg
