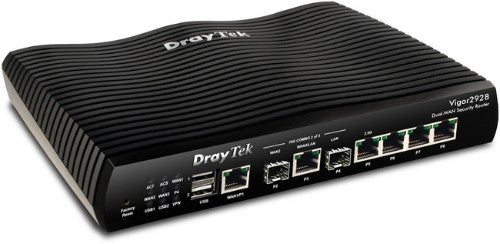

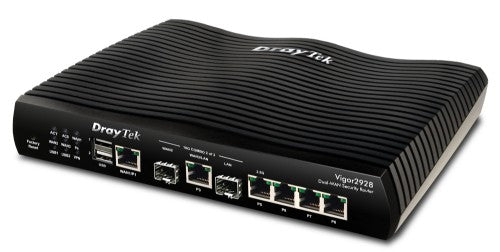

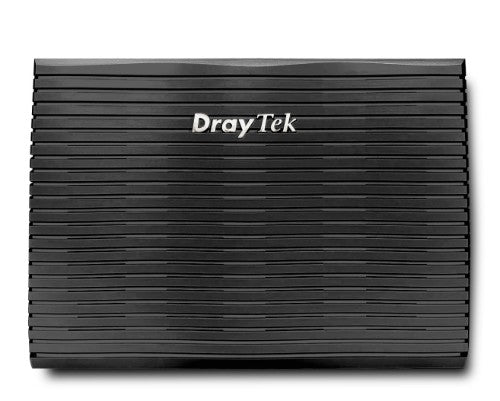

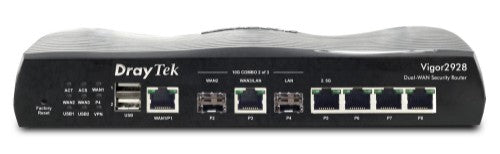

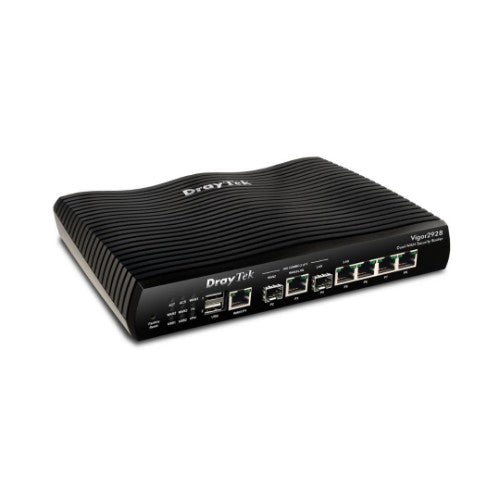

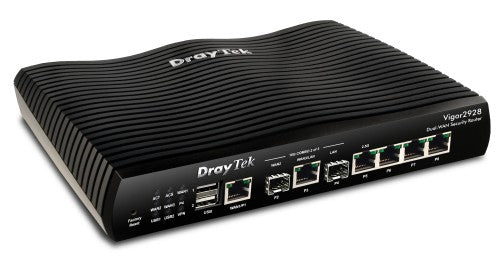

DrayTek Vigor 2928 Multi-Gigabit Multi-WAN Wired FTTP Router

Vigor 2928 Multi-Gigabit Multi-WAN Wired FTTP Router

Key Features

• Multi-WAN FTTP Router with Failover and Load Balancing
• 10 Gigabit and SFP+ Ports for future-proof connectivity
• Up to 9.3Gbps Total Maximum Throughput
• Up to 430Mbps IPsec VPN Throughput
• 50 LAN-to-LAN & Remote Teleworker VPN Tunnels
• Switchable 10GbE/SFP+ and dedicated 1x 2.5GbE and 3x GbE RJ-45 LAN Ports
• QoS and VLAN support for traffic prioritisation and network segmentation
• SPI Firewall and Content Filtering
• Optional VigorCare Available
• Can be centrally Managed by VigorACS

Reasons To Buy

Multi-Gigabit Dual-WAN Router

Fully compatible Fibre FTTP router with future-ready 10Gb interfaces. Delivers up to 9.3Gbps throughput with integrated Firewall, Content Filtering and Quality of Service for secure, optimised network performance.

Benefits: Compatible with a wide range of ISPs and line types. Flexible deployment for business or high-performance networks.

High-Performance VPN

Supports up to 50 VPN tunnels with 430Mbps IPsec throughput. Ideal for secure remote access and connecting multiple offices seamless

Benefits: Secure remote access. Scalable for multiple users.

Advanced Firewall & Content Filtering

Integrated SPI firewall, DoS protection, and content filters keep your network safe while controlling access and blocking unwanted content.

Benefits: Enhanced network security. Flexible content management.

Flexible WAN Architecture

Multi-WAN ready with 10GbE, SFP+, and Gigabit ports. Balance traffic or switch seamlessly to backup connections as needed.

Benefits: Optimise traffic across connections. Ensure fast, stable performance.

3x 1Gb + 1x 2.5Gb + 10Gb LAN Ports with VLAN Support

Connect computers, servers, NAS, and high-speed devices directly with multiple LAN ports. Use VLANs to create separate networks for broadband, VPN, or guest access.

Benefits: Optimise traffic for different users. Flexible mix of physical and virtual networks.

Flexible Standalone or Centralised Management

Operate the router independently or manage multiple devices via VigorACS for streamlined monitoring and control.

Benefits: Easy management. Scalable for growing networks.

Description

A highspeed 2.5GbE / 10GbE multi speed 2.5GbE / 10GbE multi-WAN business router firewall designed for demanding fibre WAN business router firewall designed for demanding fibre-based networks. It delivers powerful routing performance, dependable failover, secure VPN access for remote teams, and flexible high based networks. An ideal next generation FTTP gateway for SMBs, branch offices, and organisations that need a reliable generation FTTP gateway for SMBs, branch offices, and organisations that need a fast, secure, and flexible network foundation.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Full duplex	Yes
Network
Guest access	Yes
Wake-on-LAN ready	Yes
Network address translation (NAT)	Yes
Port forwarding	Yes
Concurrent connections	2
Flow control support	Yes
Traffic control	Yes
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Full duplex	Yes
Throughput	9.3 Gbit/s
Static route	Yes
Multicast support	Yes
Policy-based routing	Yes
VLAN support	Yes
Differentiated services (DiffServ) supported	Yes
Ethernet interface type	Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Performance
Concurrent connections	2
Traffic control	Yes
Firmware upgradeable	Yes
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
Management features
Wake-on-LAN ready	Yes
Universal Plug and Play (UPnP)	Yes
Firmware upgradeable	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Traffic shaping	Yes
Priority mapping	Yes
Ports & interfaces
Gigabit Ethernet (copper) ports quantity	3
USB ports quantity	2
USB version	2.0
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
SFP+ module slots quantity	2
WAN/Ethernet LAN ports quantity	1
Protocols
Routing protocols	BGP, OSPF, RIP, OSPFv2, RIPng
DMZ support	Yes
DHCP server	Yes
DHCP client	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Technical details
On/off switch	Yes
Rack mounting	Yes
Firmware upgradeable	Yes
LED indicators	WAN, SFP, ACS
Policy-based routing	Yes
Security
Guest access	Yes
DoS attack prevention	Yes
IP address filtering	Yes
Network address translation (NAT)	Yes
URL filtering	Yes
Firewall	Yes
Security algorithms	3DES, AES, SSH, HTTPS, WPA2, SSH-2, IPSec, SSID, WPA2-AES, SSL/TLS, MD5, WPA2-Enterprise, DES, OWE, TKIP, WPA3, WPS, SHA-1, SHA-256, WPA-Personal, WPA-RADIUS, WPA2-RADIUS, WPA3-Enterprise
VPN tunnels quantity	50
System event log	Yes
MAC address filtering	Yes
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard, EasyVPN
ARP attack prevention	Yes
Access Control List (ACL)	Yes
ICMP attack prevention	Yes
Packaging content
AC adapter included	Yes
Quick start guide	Yes
Cables included	LAN (RJ-45)
Packaging content	Vigor 2928 series router Quick Start Guide Cat-5e RJ-45 Network Cable DC 12V Power Supply with UK Plug
Package type	Box
Design
Housing material	Plastic
Country of origin	Taiwan
Wall mountable	Yes
On/off switch	Yes
Rack mounting	Yes
LED indicators	WAN, SFP, ACS
Rack capacity	1U
Power
Power consumption (typical)	18 W
Power consumption (max)	18 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	241 mm
Depth	165 mm
Height	43 mm
Weight	590.6 g
Packaging data
Package type	Box
AC adapter included	Yes
Quick start guide	Yes
Cables included	LAN (RJ-45)
