Cisco Business 240AC 802.11ac 4x4 Wave 2 Access Point 2 GbE Ports - Ceiling Mount, Limited Lifetime Protection (CBW240AC-E)

Business 240AC 802.11ac 4x4 Wave 2 Access Point 2 GbE Ports - Ceiling Mount, Limited Lifetime Protection (CBW240AC-E)

Key Features

• PERFORMANCE: Superior MU-MIMO (4x4) performance supporting up to 200 wireless devices and a maximum wireless coverage up to 3000 square feet
• DEPLOYMENT: Flexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)
• ENHANCED COVERAGE: Supports up to 25 mesh extenders while delivering a reliable user experience
• SET UP IN MINUTES: Simplify management and monitor your network from Cisco Business Mobile app or web browser
• ADVANCED SECURITY: Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
• NETWORK ACCESS: Prioritize network access based on use cases (i.e. point of sales system, surveillance) or guest privileges
• PEACE OF MIND: One-year technical support and limited lifetime warranty

Description

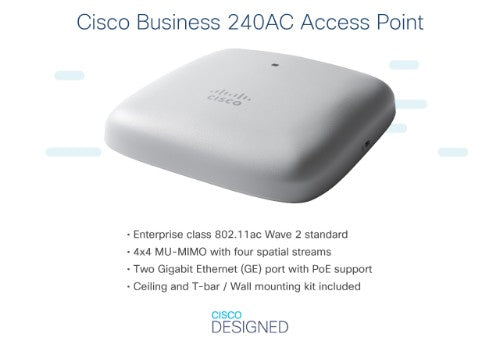

The Cisco Business 240AC Access Point delivers high density MU-MIMO (4x4) wireless connectivity for small offices. Designed with simplicity, flexibility and security in mind, the Cisco Business 240AC provides superior performance and enhanced range for an optimal user experience.

Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1733 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Country of origin	China
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Number of users	400 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Channels quantity	29 channels
Maximum data transfer rate	1733 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Internal memory	1000 MB
Flash memory	512 MB
Wireless LAN features
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Channels quantity	29 channels
Network
Number of users	400 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support	Yes
Memory
Internal memory	1000 MB
Flash memory	512 MB
Features
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Number of users	400 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Channels quantity	29 channels
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1733 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	1000 MB
Flash memory	512 MB
Security
Security algorithms	WPA, WPA2, WPA3, WPA2-Enterprise
Remote Authentication Dial-In User Service (RADIUS)	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Cabling technology	10/100/1000Base-T(X)
Power
Power plug type	Type C
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Design
Placement	Ceiling, Wall
Country of origin	China
Product colour	Grey
LED indicators	Yes
Market segment	Business
Technical details
Antenna	4X4:4SS – 80 MHz
Products per shipping (inner) case	1 pc(s)
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Weight & dimensions
Width	177.8 mm
Depth	177.8 mm
Weight	426 g
Height	38 mm
Package width	226.9 mm
Package depth	207.9 mm
Package height	74.7 mm
Package weight	890 g
Packaging data
Mounting kit	Yes
Package width	226.9 mm
Package depth	207.9 mm
Package height	74.7 mm
Package weight	890 g
Number of products included	1 pc(s)
Packaging content
Mounting kit	Yes
Number of products included	1 pc(s)
Other features
Antenna	4X4:4SS – 80 MHz
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m
Logistics data
Products per master (outer) case	1 pc(s)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
