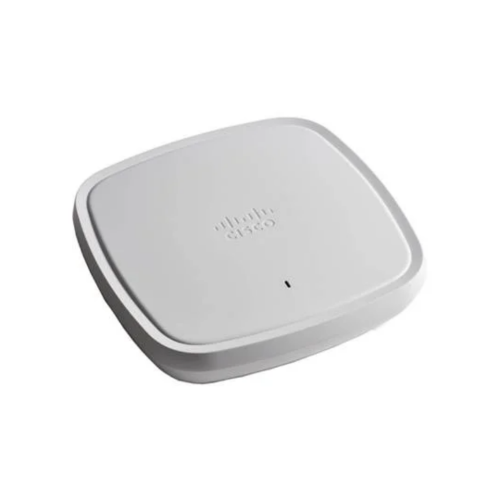

Cisco Catalyst 9120AXI-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, CleanAir with RF ASIC, MU-MIMO, PoE, Internal antenna (C9120AXI-E)

Catalyst 9120AXI-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, CleanAir with RF ASIC, MU-MIMO, PoE, Internal antenna (C9120AXI-E)

Key Features

• POWERFUL Wi-Fi 6 PERFORMANCE: 4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
• CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
• ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
• EMBEDDED WIRELESS CONTROLLER: Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
• PEACE OF MIND: 90-day software and limited lifetime hardware warranty

Description

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.

Specifications

Data transmission
Ethernet LAN data rates	2500 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Country of origin	Mexico
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	2500 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11ac
Features
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	2500 Mbit/s
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power plug type	Type C
Power over Ethernet (PoE)	Yes
Design
Placement	In-wall
Country of origin	Mexico
Product colour	Grey
Antenna
Antenna type	Internal
Technical details
Products per shipping (inner) case	1 pc(s)
Harmonized System (HS) code	85176990
Software
Maximal-Ratio Combining (MRC)	Yes
Cyclic Shift Diversity (CSD)	Yes
Weight & dimensions
Width	216 mm
Depth	216 mm
Height	43 mm
Package width	244.6 mm
Package depth	263.7 mm
Package height	90.4 mm
Package weight	1.59 kg
Packaging data
Package width	244.6 mm
Package depth	263.7 mm
Package height	90.4 mm
Package weight	1.59 kg
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Logistics data
Country of origin	Mexico
Products per master (outer) case	1 pc(s)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
