DrayTek VigorAP 912C 866 Mbit/s White Power over Ethernet (PoE)

Ceiling Mesh Wireless 802.11ac Range Extender & Access Point, white

Key Features

• AC1200 - 11ac 'Wave 2' Dual Band Wireless

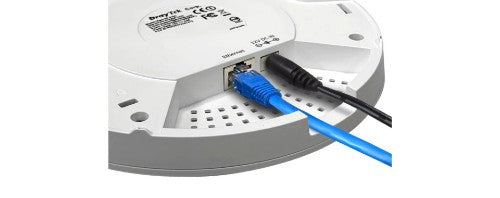

• Power through 802.3af PoE or DC power adapter
• Multi-SSID over Mesh
• Centrally Managed or Standalone operation
• Advanced Access Control with Mobile Device Management and Station Control

Description

VigorAP 912C is a high-performance Mesh Wireless solution, designed to expand the wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. It can also be used as a traditional access point either managed or stand alone so has the flexibility to be used how you need it.

The VigorAP 912C is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.

Initial setup of the VigorAP 912C is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.

Manage the VigorAP 912C centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 912C has the flexibility to be used how you need it.

Specifications

Data transmission
Maximum data transfer rate	866 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Syslog	Yes
Reset button	Yes
Firmware upgradeable	Yes
Web-based management	Yes
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	866 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security
Cable lock slot	Yes
Number of SSID supported	8
IP address filtering	Yes
Security algorithms	HTTPS, WEP, WPA, WPA2, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID, Multiple SSIDs
Schedule access	Yes
Management features
VLAN support	Yes
Syslog	Yes
Firmware upgradeable	Yes
Web-based management	Yes
Local AP management	Telnet
Command-line interface (CLI)	Yes
Cloud-managed	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	866 Mbit/s
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	866 Mbit/s
WLAN channel features	WLAN channel management
Protocols
DHCP server	Yes
DHCP client	Yes
Ports & interfaces
Internal RJ-45 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	10 W
Output voltage	12 V
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
Cable lock slot	Yes
Technical details
Reset button	Yes
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Software
Automatic channel scanning	Yes
Local AP management	Telnet
Weight & dimensions
Width	162 mm
Depth	162 mm
Weight	300 g
Height	42 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Cables included	LAN (RJ-45)
AC adapter included	No
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Cables included	LAN (RJ-45)
AC adapter included	No
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
