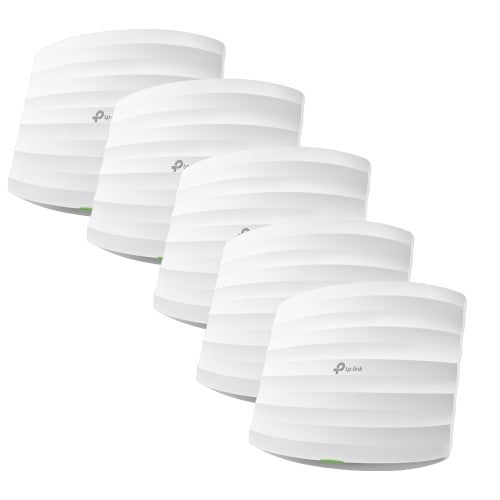

TP-Link Omada EAP245(5-PACK) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)

Kit 5x EAP245, 12.3W, IEEE 802.11ac/n/g/b/a, 2x RJ-45, 2.4/5 GHz

Key Features

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• Free cloud centralized management and Omada app for ultra convenience and easy management
• Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• Band Steering Automatically moves dual-band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high-density business networks
• Supports management VLAN for an enhanced network management

Description

Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1750 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Automatic channel selection	Yes
Syslog	Yes
Transmitting power	27 dBmW
Reset button	Yes
Frequency band	2.4, 5 GHz
Web-based management	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1750 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Wireless LAN features
Frequency band	2.4, 5 GHz
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Security
Cable lock slot	Yes
Number of SSID supported	16
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Syslog	Yes
Web-based management	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Automatic channel selection	Yes
Transmitting power	27 dBmW
Frequency band	2.4, 5 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1750 Mbit/s
Transmitting power (FCC)	24 dBm
Transmitting power (CE)	20 - 23 dBm
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Virtual LAN features	SSID-based VLAN assignment
BeamForming	Yes
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Protocols
Management protocols	HTTP/HTTPS
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Cabling technology	10/100/1000Base-T(X)
Power
Power consumption (typical)	12.3 W
Power over Ethernet (PoE)	Yes
Input current	1.5 A
AC input voltage	48 V
Power over Ethernet (PoE) type supported	Passive PoE
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Transmitting power	27 dBmW
Reset button	Yes
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS
Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS
Indication
LED indicators	Yes
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Weight & dimensions
Width	180 mm
Depth	180 mm
Height	47.5 mm
Package width	257.5 mm
Package depth	285.5 mm
Package height	283.5 mm
Package weight	3.54 kg
Packaging data
Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	Yes
Package width	257.5 mm
Package depth	285.5 mm
Package height	283.5 mm
Package weight	3.54 kg
Cables included	AC
Packaging content
Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	Yes
Cables included	AC
Quantity per pack	5 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
System requirements
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	5 pc(s)
Harmonized System (HS) code	85176990
