Ubiquiti

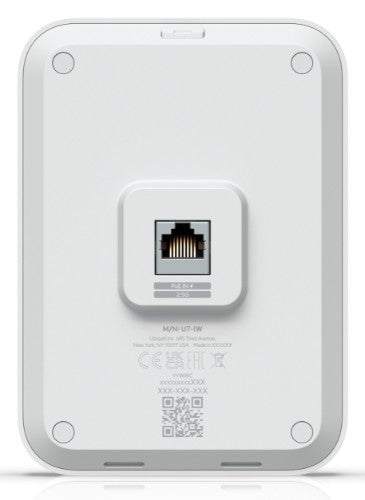

Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet (PoE)

SKU U7-IW
£168.71
£120.67
£168.71
£120.67
Excluding taxes
Wall-mounted, WiFi‎ 7, 115 m2 (1,250 ft2), 3x 2.5 GbE RJ45 ports, PoE, 13W, Polycarbonate, aluminum alloy, 137 x 98.7 x 30.2 mm

Description

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Specifications

Data transmission
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 4300 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Reset button Yes
Frequency band 2.4 - 5 GHz
Number of users 200 user(s)
VLAN support Yes
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 4300 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Wireless LAN features
Frequency band 2.4 - 5 GHz
Network
Number of users 200 user(s)
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support Yes
Access point management Wi-Fi schedule
Features
6 GHz No
2.4 GHz Yes
5 GHz Yes
Frequency band 2.4 - 5 GHz
Number of users 200 user(s)
VLAN support Yes
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate 4300 Mbit/s
Fast roaming Yes
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Fit AP mode features Hotspot 2.0
Spatial streams 4
Coverage area 115 m²
Wireless meshing Yes
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 24 dBmW
Security
Security algorithms PPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports 3
Power
Power consumption (max) 13 W
Power over Ethernet (PoE) Yes
DC voltage range 42.5 - 57 V
Design
Housing material Aluminium, Polycarbonate (PC)
Placement Wall
Product colour White
Reset button Yes
LED indicators Status
Antenna
Antenna type Internal
Antennas quantity 4
Antenna gain level (max) 8 dBi
Technical details
Reset button Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Status
Software
Fast roaming Yes
Weight & dimensions
Width 98.7 mm
Depth 30.2 mm
Weight 400 g
Height 137 mm
Packaging data
Mounting kit Yes
Packaging content
Mounting kit Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
Logistics data
Quantity per pack 1 pc(s)
