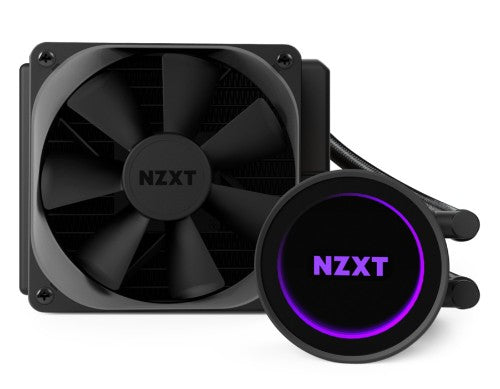

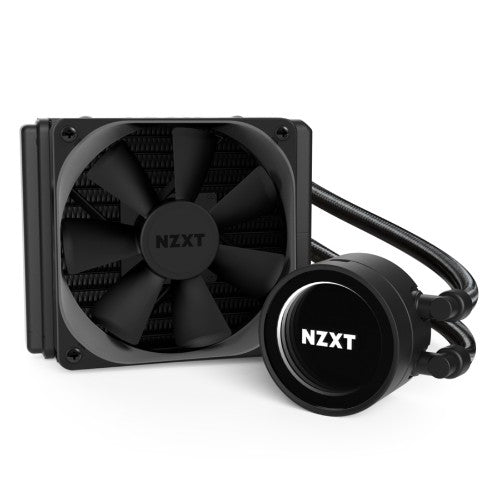

NZXT Kraken M22 Processor All-in-one liquid cooler 12 cm Black

120 mm, 4-pin PMW, 500 - 2000 RPM, 21 - 36 dB, 18.28 - 73.11 cfm

Key Features

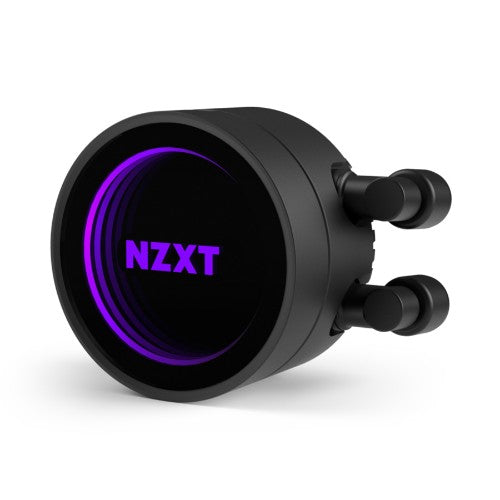

• Individually addressable RGB lighting and infinite mirror design
• CAM-powered for complete software control, via desktop or mobile app
• Advanced lighting modes for a fully dynamic lighting experience
• Includes Aer P120 radiator-optimized fan
• Reinforced, extended tubing for increased durability
• 3-year warranty
• The product is not compatible with Kraken G12

Description

The Kraken M22 features two individually addressable RGB channels and our signature infinite-mirror effect for stunning lighting, using CAM’s intuitive controls. It includes precision engineered fans and premium build quality, and is backed by the assurance of a 3-year warranty.

LIGHT YOUR WAY

Add amazing color and lighting to your CPU cooler with advanced RGB modes and infinite-mirror effect. Using CAM’s intuitive dashboard you can access sophisticated RGB controls with ease, including customizable presets or reactive modes that respond to changes in system conditions, such as temperature or audio output.

EFFICIENT AND CUSTOMIZABLE RADIATOR FANS

The Aer P120 radiator fans are designed for liquid-cooling perfection. Featuring a chamfered intake and fluid dynamic bearings, they deliver silent operation, durability, and powerful cooling performance. They can also be customized using removable color trims (sold separately).

REINFORCED EXTENDED TUBING

Fine nylon sleeves are added to strengthen the rubber tubing. As an added protective layer, it shields your Kraken cooler tubes from potential damage during handling.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Fan thickness	2.6 cm
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Compatible processor series	AMD A, AMD Athlon, AMD Athlon II, AMD Athlon X2, AMD Athlon™ X4, AMD FX™, AMD Phenom, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Minimum airflow (imperial)	18.28 cfm
Maximum airflow	73.11 cfm
Minimum air pressure	0.18 mmH2O
Maximum air pressure	2.93 mmH2O
Number of fans	1 fan(s)
Fan noise level (min)	21 dB
Fan noise level (max)	36 dB
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Pump motor speed (min)	2700 RPM
Pump motor speed (max)	3300 RPM
Pump motor speed	3000 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Material	Aluminium, Copper, Nylon, Rubber
Illumination colour	Blue, Green, Red
Product colour	Black
Illumination LED	Yes
Tube material	Rubber
Technical details
Fan thickness	2.6 cm
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Compatible processor series	AMD A, AMD Athlon, AMD Athlon II, AMD Athlon X2, AMD Athlon™ X4, AMD FX™, AMD Phenom, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Minimum airflow (imperial)	18.28 cfm
Maximum airflow	73.11 cfm
Minimum air pressure	0.18 mmH2O
Maximum air pressure	2.93 mmH2O
Number of fans	1 fan(s)
Material	Aluminium, Copper, Nylon, Rubber
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Fan power consumption	3.84 W
Fan voltage	2 V
Fan current	0.32 A
Colour
Product colour	Black
Weight & dimensions
Fan thickness	2.6 cm
Weight	880 g
Radiator width	15.2 cm
Radiator depth	12 cm
Radiator height	3.2 cm
Tube length	40 cm
Waterblock width	6.5 cm
Waterblock depth	6.5 cm
Waterblock height	4.8 cm
Indication
Illumination colour	Blue, Green, Red
Packaging content
Screws included	Yes
Mounting kit	Yes
CPU socket spacer(s)	Yes
CPU bracket(s)	Yes
Other features
Tube material	Rubber
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
