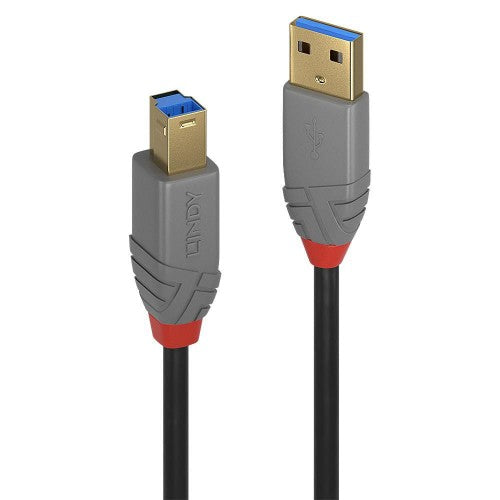

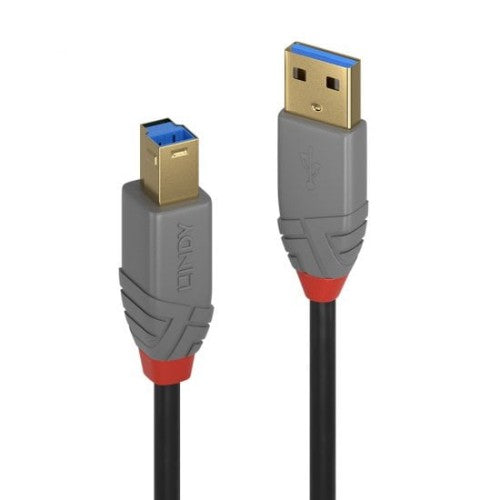

Lindy 2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line

2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line

Key Features

• Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
• SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
• Robust PVC housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Description

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	24/28/30
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB B
Cable length	2 m
Connector contacts plating	Gold
Magnetically shielded	Yes
Maximum data transfer rate	5000 Mbit/s
Product colour	Black, Grey
Certification	RoHS, REACH, UL
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Gold
Contact material	Copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Polyvinyl chloride (PVC)
Nominal attenuation	0.5-5m: 0.5MHz-7.5GHz
Maximum data transfer rate	5 Gbit/s
Cable diameter	5.5 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	5.5 mm
Cable length	2 m
Bend radius (min)	4.8 cm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)	12.2 x 35 x 13.5 mm
Package type	Polybag
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB B
Connector contacts plating	Gold
Data transmission
Maximum data transfer rate	5000 Mbit/s
Technical details
Magnetically shielded	Yes
Product colour	Black, Grey
Harmonized System (HS) code	84733080
Certificates
Certification	RoHS, REACH, UL
Other features
Package type	Polybag
Product colour	Black, Grey
Cable type	Round cable
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 60 °C
Logistics data
Harmonized System (HS) code	84733080
