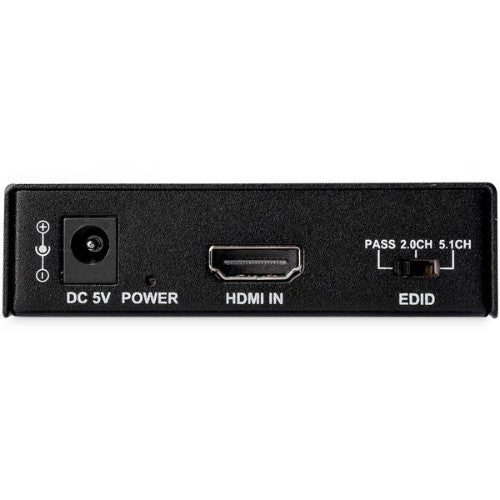

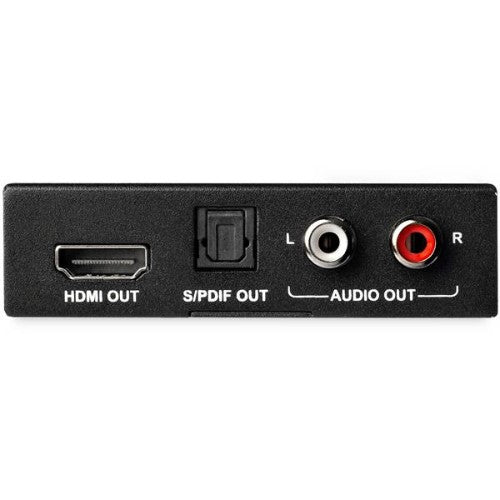

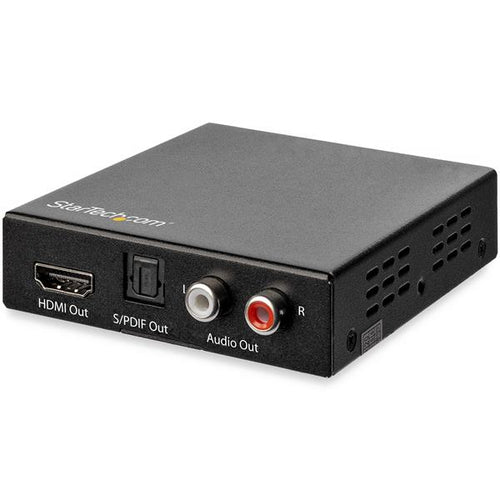

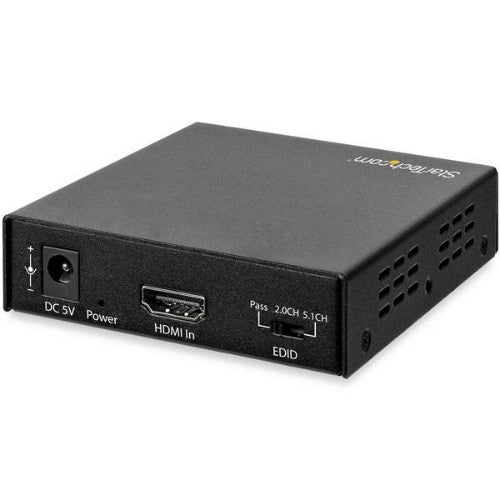

StarTech.com 4K HDMI Audio Extractor with 4K 60Hz Support

StarTech.com 4K HDMI Audio Extractor - 4K 60Hz - HDMI Audio De-embedder - HDR - Toslink Optical Audio - Dual RCA Audio - HDMI Audio

Description

HDMI Audio De-embedder | HDR | Toslink Optical Audio | Dual RCA Audio | HDMI Audio

This 4K HDMI audio extractor lets you de-embed the audio from your HDMI video streams to create a distinct audio output that you can connect directly to a digital or analog audio device. Supporting HDMI 2.0 specifications, the de-embedder maintains 4K 60Hz resolutions to deliver a seamless video experience.

4K Video Performance

The HDMI sound splitter supports video resolutions up to 4K 60Hz (3840 x 2160) and high video bandwidth up to 18Gbps. It also supports High Dynamic Range (HDR) video pass-through, letting you enjoy lifelike images with incredible contrast, brightness and color, and greater luminosity compared to standard digital imaging.

Maximum Compatibility

Easily integrate HDMI 2.0 devices, such as your new 4K Blu-ray player, with your existing audio equipment or desktop speakers. The extractor isolates and extracts the audio signal from your HDMI cable and lets you output to digital optical audio or dual RCA audio devices . The integrated EDID management capabilities support 2-channel, 5.1-channel and pass-through audio modes.\

The HDCP compliant HDMI audio de-embedder is compatible with dual-RCA composite adapters, giving you the flexibility to integrate the audio from your HDMI source into 3.5 mm audio applications using MU6MMRCA, MU3MMRCA or MUFMRCA (sold separately).

The compact extractor features a small footprint that blends discreetly into your hardware setup, for a uniform look.

HD202A is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Separate and send the audio from a 4K HDMI video signal to dedicated audio devices
- Supports the latest HDMI 2.0 specifications and HDR video pass-through
- Hassle-free connection with digital optical audio or Dual RCA audio devices

Specifications

Technical details
Video out	HDMI
Video in	HDMI
Audio output channels	5.1 channels
Audio output	RCA + Toslink
Maximum video resolution	4096 x 2160 pixels
Host interface	HDMI
Harmonized System (HS) code	85176990
Colour
Product colour	Black
Other features
Product colour	Black
Features
Product colour	Black
Video
Maximum video resolution	4096 x 2160 pixels
Video resolutions	1280 x 720,1920 x 1080,1920 x 1200,3840 x 2160,4096 x 2160
Maximum refresh rate	60 Hz
Audio
Audio output channels	5.1 channels
Ports & interfaces
Video out	HDMI
Video in	HDMI
Audio output	RCA + Toslink
Host interface	HDMI
Power
Power plug type	Type M
Input current	0.4 A
Operating voltage	5 V
Operating current	1 A
Input voltage	100 - 240 V
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	80 mm
Depth	90 mm
Height	22 mm
Weight	320 g
Packaging content
Screws included	Yes
Number of screws	2
AC adapter included	Yes
Included power plug types	ANZ, EU, NA, UK
Mounting bracket(s) included	Yes
Packaging data
AC adapter included	Yes
Included power plug types	ANZ, EU, NA, UK
Package width	152 mm
Package depth	192 mm
Package height	50 mm
Package weight	470 g
Mounting bracket(s) included	Yes
Screws included	Yes
Number of screws	2
Logistics data
Harmonized System (HS) code	85176990
