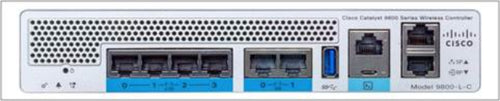

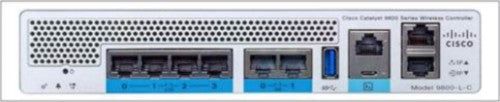

Cisco Catalyst 9800-L-C gateway/controller 10, 100, 1000, 10000 Mbit/s

C9800-L-C, RJ-45, 2x 10G/Multigigabit copper, Mini USB B, USB 3.0, 215.9x230.1x40.2 mm

Key Features

• Choose between copper and fiber uplinks. This choice gives you flexibility in your network
• High availability and seamless software updates, enabled by hot and cold patching, keep your clients and services always on in planned and unplanned events
• Secure the air, devices, and users with the Cisco Catalyst 9800-L. The wireless infrastructure becomes the strongest first line of defense, with Encrypted Traffic Analytics and Software-Defined Access (SD-Access). The controller comes with built-in security: Secure Boot, runtime defenses, image signing, integrity verification, and hardware authenticity
• Built on a modular operating system, the controller features open and programmable APIs that enable automation of day-0 to day-N network operations. Model-driven streaming telemetry provides deep insights into your network and client health

Description

The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.

Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.

The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.

Specifications

Design
LED indicators	Yes
Safety	UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
Certification	FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3
Product colour	Grey
Performance
Control display unit	No
Certification	FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3
Product colour	Grey
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	Yes
Security
VLAN support	Yes
Security algorithms	AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
Console port	RJ-45
Management features
Web-based management	Yes
Syslog	Yes
Quality of Service (QoS) support	Yes
Weight & dimensions
Weight	1.79 kg
Width	215.9 mm
Height	40.2 mm
Depth	230.1 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Wi-Fi	Yes
Harmonized System (HS) code	85176990
Indication
LED indicators	Yes
Display
Control display unit	No
Certificates
Safety	UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
Certification	FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3
Logistics data
Harmonized System (HS) code	85176990
