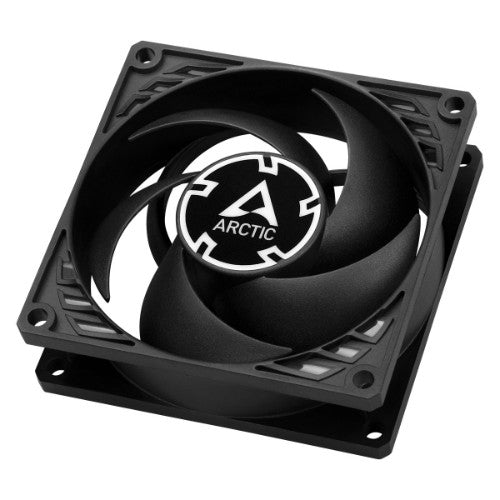

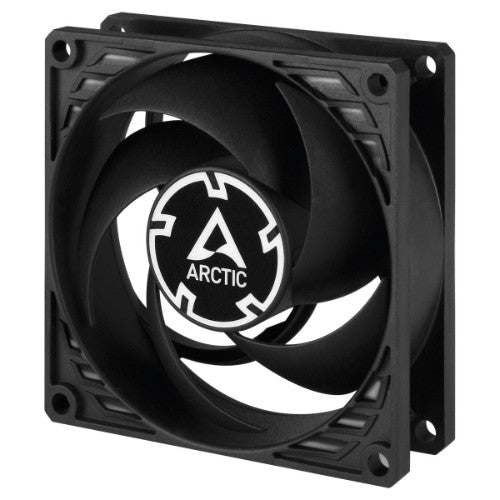

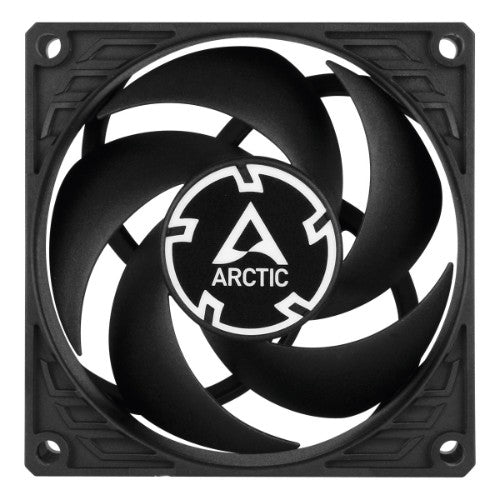

ARCTIC P8 - Pressure-optimised 80 mm Fan

80 x 25 mm, 3000 RPM, 23.4 CFM, 39.76 m³/h, 0.3 Sone, 12V DC, 81 g

Key Features

• Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-)
• covered case vents
• Push- or pull-configuration possible

Reasons To Buy

Optimised for Static Pressure

During the development of the new P8, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 is particularly suitable for use on heatsinks and radiators.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Two Way Installation

Push warm air out of the case Pull cool air into your cas

Description

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well! As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Specifications

Performance
Suitable location	Computer case
Fan connector	3-pin
Rotational speed (max)	3000 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	39.76 m³/h
Number of fans	1 fan(s)
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Number of fan blades	5
Design
Fan connector	3-pin
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	8 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	23.4 cfm
Maximum air pressure	1.9 mmH2O
Airflow	39.76 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	3-pin
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Ports & interfaces
Fan connector	3-pin
Power
Voltage	12 V
Rated current	0.14 A
Colour
Product colour	Black
Weight & dimensions
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Width	80 mm
Package weight	99 g
Depth	25 mm
Height	80 mm
Weight	81 g
Cable length	0.4 m
Packaging data
Package depth	26 mm
Package width	82.5 mm
Package height	82.5 mm
Package weight	99 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
Other features
Mounting hole pattern (W x D)	71.5 x 71.5 mm
Country of origin	China
Harmonized System (HS) code	84733080
