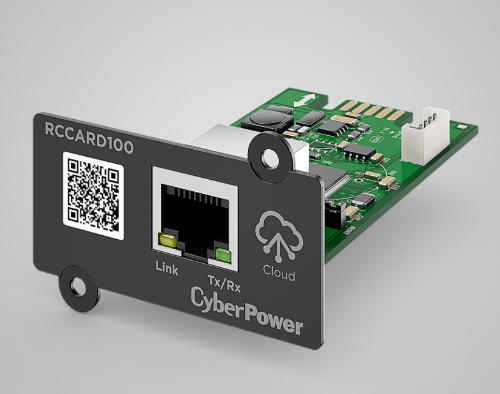

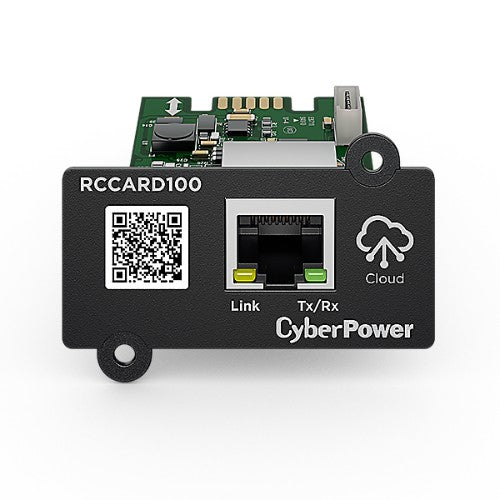

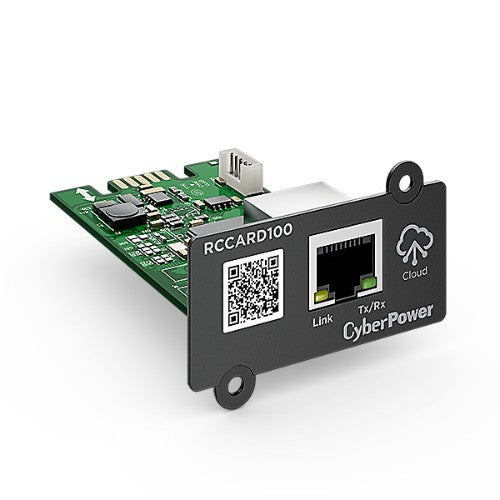

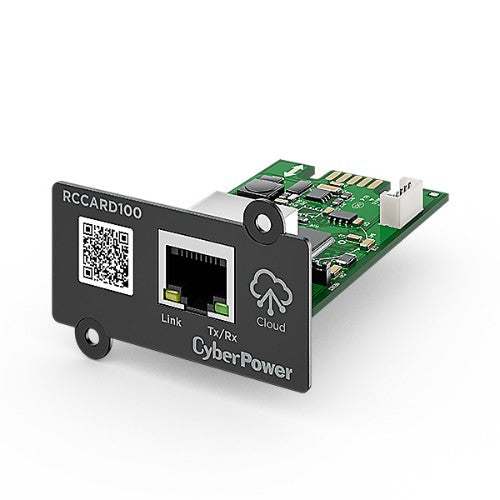

CyberPower RCCARD100 network card Internal Ethernet 100 Mbit/s

Remote Cloud Card, Fast Ethernet, 1 x RJ45

Key Features

• UPS Management through Cloud
• Plug-and-play Installation
• RoHS Compliant
• QR Code for Quick Setup
• User-upgradeable Firmware

Description

CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.

The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	100 Mbit/s
Technical details
Product colour	Black, Green, Metallic
Plug and Play	Yes
Country of origin	China
Harmonized System (HS) code	8473302000
Sustainability compliance	Yes
Compliance certificates	RoHS
Network
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Cabling technology	10/100BaseT(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Design
Product colour	Black, Green, Metallic
Certification	CE, FCC Class B, RoHS
Plug and Play	Yes
Internal	Yes
LED indicators	TX / RX, Link
Country of origin	China
Component for	PC
Indication
LED indicators	TX / RX, Link
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	54 mm
Depth	76.5 mm
Height	36.1 mm
Weight	31 g
Package width	170 mm
Package depth	60 mm
Package height	165 mm
Package weight	300 g
Packaging data
Package width	170 mm
Package depth	60 mm
Package height	165 mm
Package weight	300 g
Performance
Plug and Play	Yes
Certificates
Certification	CE, FCC Class B, RoHS
Logistics data
Harmonized System (HS) code	8473302000
Other features
Harmonized System (HS) code	8473302000
Country of origin	China
