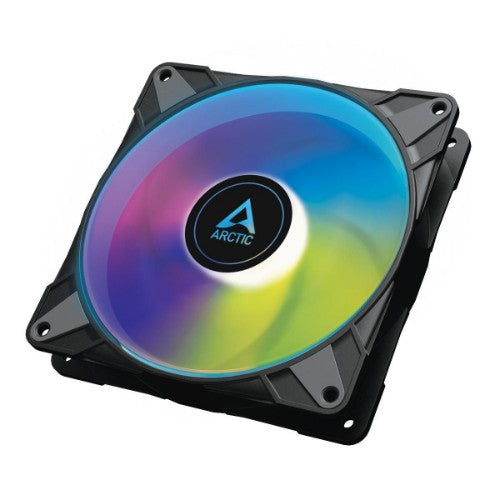

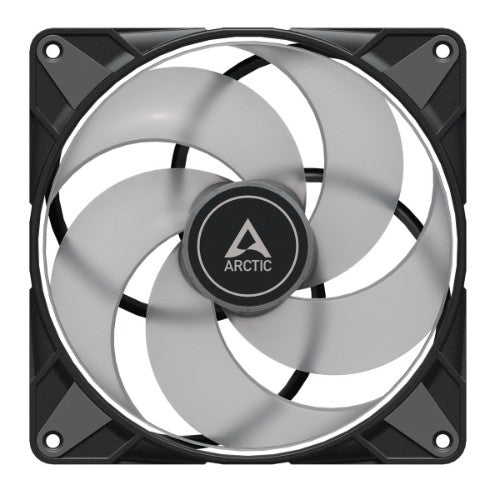

ARCTIC P14 PWM PST A-RGB 0dB - Semi-Passive 140 mm Fan with Digital A-RGB

140 mm, 0 - 1900 RPM, A-RGB, PWM, FDB, 68.9 CFM, 117.06 m3/h, 12 V DC, 4-pin + 4-pin, 225 g

Reasons To Buy

RGB FOR FULL COLOUR CONTROL

The P14 PWM PST A-RGB 0dB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

0 dB MODE - ZERO RPM

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

MAXIMUM SMOOTHNESS, MINIMUM VIBRATION

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

OPTIMISED FOR HIGH STATIC PRESSURE

The P14 PWM PST A-RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

0 TO 1900 RPM CONTROLLED VIA PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Description

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	0 RPM
Rotational speed (max)	1900 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	68.9 cfm
Airflow	117.06 m³/h
Quantity per pack	1 pc(s)
Fan static pressure	2 mmH2O
Design
Fan connector	4-pin + 4-pin
Product colour	Black
Cable length	0.48 m
Illumination LED	Yes
Number of LEDs	12
Technical details
Type	Fan
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	68.9 cfm
Airflow	117.06 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Starting voltage	5 V
Voltage	12 V
LED voltage	12 V
Fan voltage	12 V
Fan current	0.17 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Package depth	167 mm
Package width	167 mm
Package height	34 mm

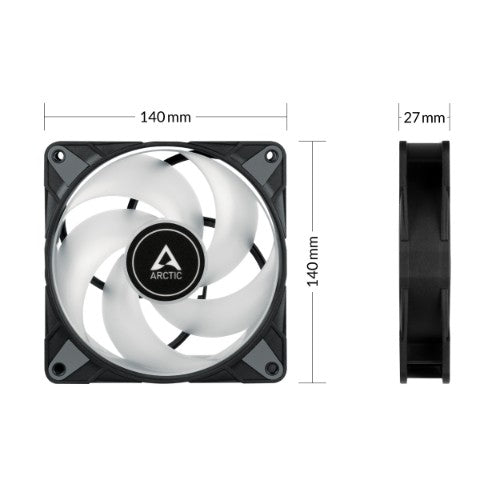

Width	140 mm
Package weight	297 g
Depth	140 mm
Height	27 mm
Weight	210 g
Cable length	0.48 m
Packaging data
Package depth	167 mm
Package width	167 mm
Package height	34 mm
Package weight	297 g
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
Other features
Country of origin	Hong Kong
LED voltage	12 V
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
