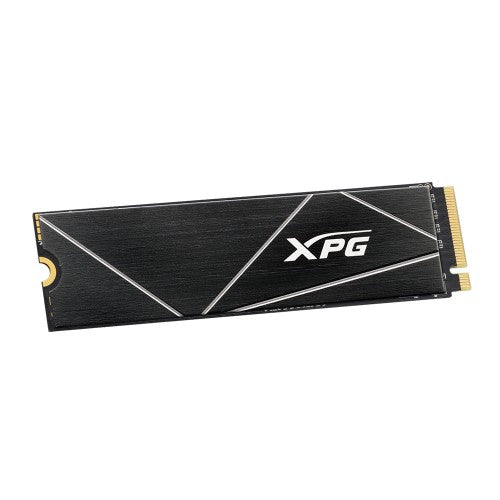

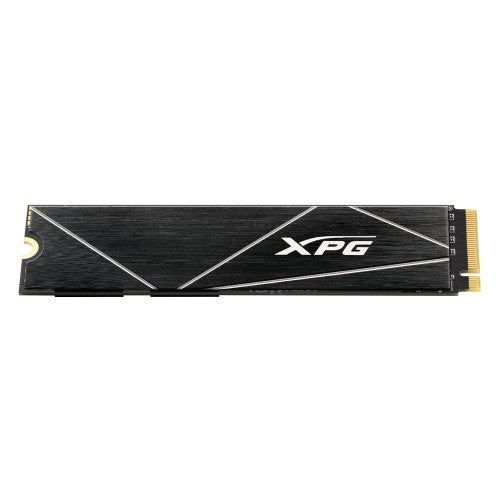

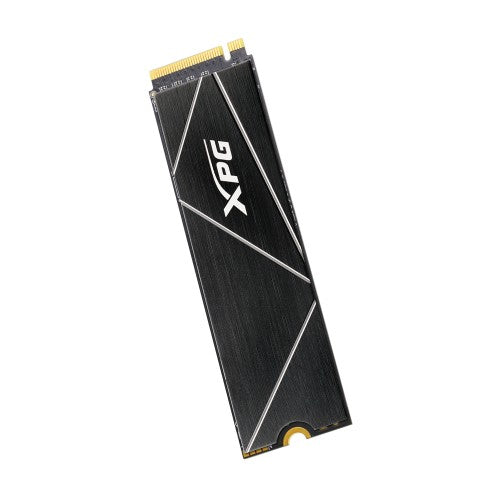

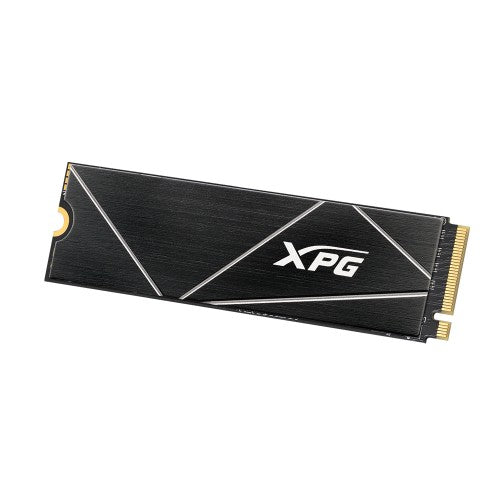

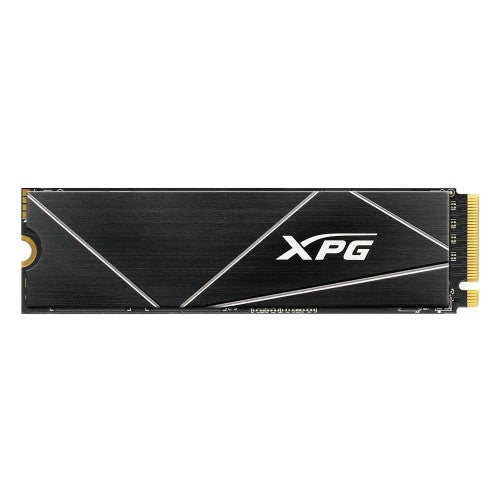

XPG GAMMIX S70 Blade 4 TB M.2 PCI Express 4.0 NVMe 3D NAND

PCIe Gen4x4, M.2, 4TB, 7,400/6,400MB/s

Key Features

• Compliant with NVMe 1.4
• High-temperature resistant aluminum heatsink which is able to reduce temperatures by up to 20%
• SLC Caching and DRAM cache buffer
• Advanced LDPC ECC Technology
• E2E Data Protection and RAID Engine
• AES 256-bit encryption support
• Compact M.2 2280 form factor – ideal for gaming and high-end desktops

Description

Speed Ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.

Cool in the Heat of Battle
Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.

Perfect for Compact and Thin Devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.

Boosting Your Performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.

Security and Integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	4 TB
Memory type	3D NAND
Performance
Brand specific technologies	SLC Caching
Interface	PCI Express 4.0
Component for	PC
Controller type	Innogrit IG5236
NVMe	Yes
NVMe version	1.4
PCI Express interface data lanes	x4
SSD capacity	4 TB
Security algorithms	256-bit AES
Read speed	7400 MB/s
Write speed	6600 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	750000 IOPS
Random read (4KB)	750000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
Data transmission
Read speed	7400 MB/s
Write speed	6600 MB/s
Random write (4KB)	750000 IOPS
Random read (4KB)	750000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	PC
Controller type	Innogrit IG5236
NVMe	Yes
NVMe version	1.4
PCI Express interface data lanes	x4
SSD capacity	4 TB
Security algorithms	256-bit AES
Read speed	7400 MB/s
Write speed	6600 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	750000 IOPS
Random read (4KB)	750000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
Certification	CE, FCC, BSMI, KC, Morocco, EAC
SSD form factor	M.2
Harmonized System (HS) code	84717070
Certificates
Certification	CE, FCC, BSMI, KC, Morocco, EAC
Brand-specific features
Brand specific technologies	SLC Caching
Design
Component for	PC
Certification	CE, FCC, BSMI, KC, Morocco, EAC
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	10 g
Depth	4.3 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
ECC	Yes
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	M.2
Logistics data
Harmonized System (HS) code	84717070
