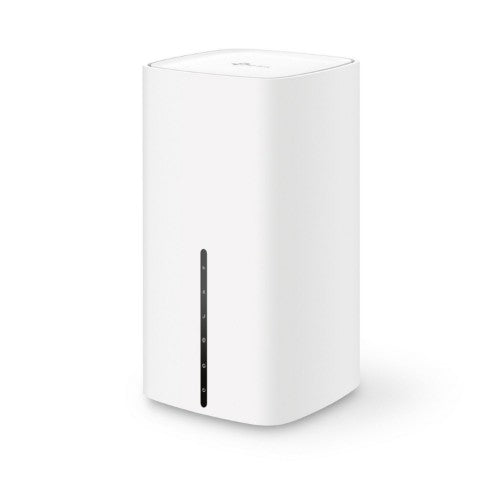

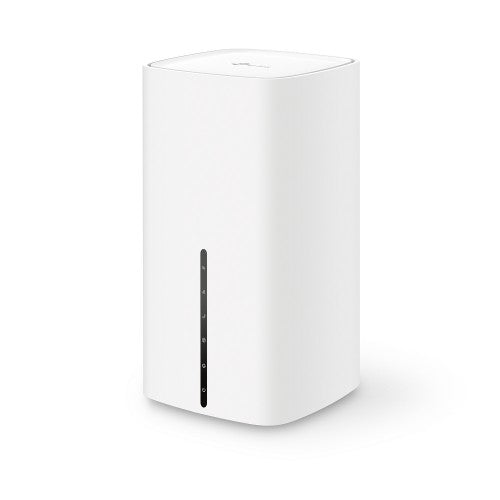

TP-Link 5G AX3000 Wi-Fi 6 Telephony Router

1 GHz Dual-Core CPU, 3× 10/100/1000 Mbps RJ45, 2.4/5 GHz, 802.11ax, 3G/4G/5G, 99 x 99 x 192mm

Key Features

• Boost Your 5G Speed: Take advantage of your advanced 5G network with download speeds up to 3.4 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences
• AX3000 Dual-Band Wi-Fi 6 Speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• VoLTE/CSFB Telephony: With 1 Voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set
• Plug & Play: Enjoy 5G network right after inserting a SIM card
• Support EasyMesh: Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage
• Fully Gigabit Ports for Consummate Connectivity: Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more
• Easy Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported

Description

Enjoy WiFi and Phone Calls All in One 5G Router
5G AX3000 Wi-Fi6 Telephony Router

Unrivaled Speed with 5G, Revolutionary Experience
5G greatly boosts the download speed up to 3.4 Gbps–22x faster than 4G LTE. It brings fast responsive network connections to tomorrow’s mobile devices, with only 1 ms latency.

Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. NX510v ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

AX3000 – Powerful Wi-Fi 6
Armed with WiFi 6 technology, NX510v is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Enjoy WiFi and Phone Calls Simultaneously
NX510v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoLTE and CSFB. Simply enjoy a professional and high-quality voice call as you like.

Create Smart Mesh WiFi with Great Flexibility
Working with other EasyMesh-compatible devices, NX510v creates a unified mesh WiFi network for seamless whole home coverage. No more searching for a stable connection.

Engineered for More Devices
NX510v is aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.

Available WAN Connection
The WAN/LAN port enables NX510v to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Aginet Solution:End-to-End Management System for ISPs
The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	Yes
Mobile network
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Mobile network generation	5G
3G standards	DC-HSDPA, HSDPA, HSPA+, HSUPA, WCDMA
4G standard	LTE-TDD & LTE-FDD
Performance
Processor frequency	1000 MHz
Processor cores	2
Built-in processor	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	3000 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Dynamic DNS (DDNS)	Yes

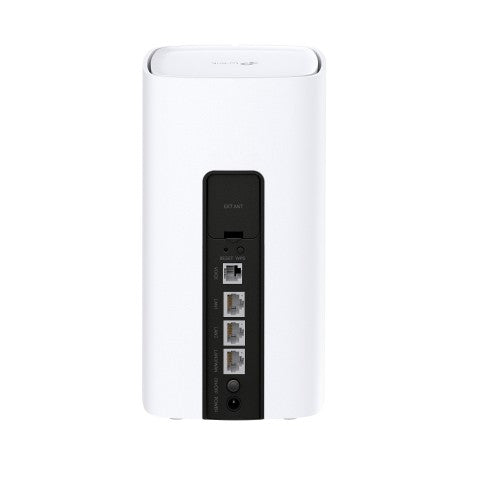

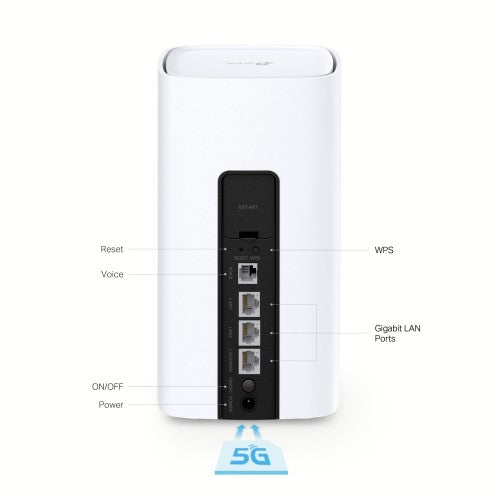

Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
Management features
Quality of Service (QoS) support	Yes
Security
Parental control	Yes
Design
Product type	Tabletop router
LED indicators	LAN, LTE, Status
Product colour	White
Certificates
Certification	CE, RoHS
Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Antenna
Antenna design	Internal & external
Features
Processor frequency	1000 MHz
Processor cores	2
Certification	CE, RoHS
Built-in processor	Yes
Power
Power source type	AC
Output voltage	12 V
Output current	2 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	99 mm
Height	192 mm
Depth	99 mm
Packaging data
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
