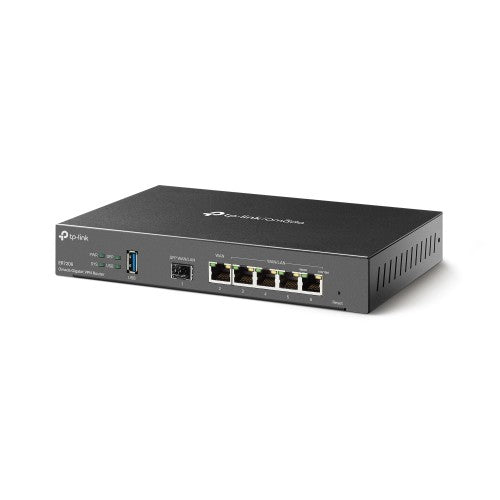

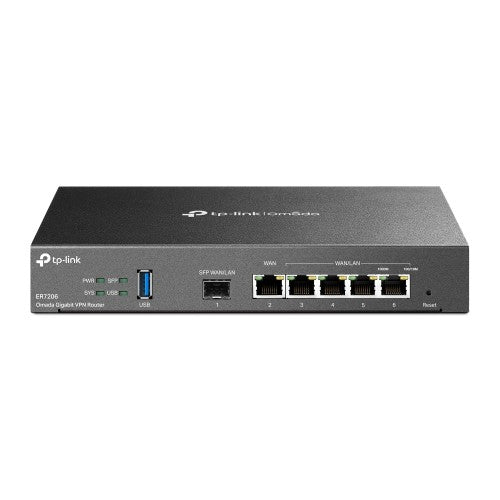

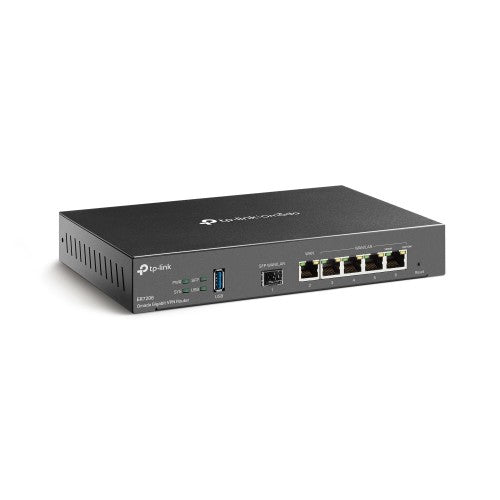

TP-Link Omada Gigabit VPN Router

1x Gigabit SFP WAN/LAN, 1x Gigabit WAN, 4x Gigabit LAN/WAN, 1x USB 3.0 Port, 128 MB NAND, 512 MB DDR4, 226 x 131 x 35 m

Key Features

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity
• Up to 5 WAN Ports: Gigabit SFP WAN port and gigabit RJ45 WAN port optimize bandwidth usage
• Highly Secure VPN: Supports multiple VPN protocols including SSL / Wireguard / OpenVPN/ IPSec / GRE VPN§/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly
• Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data

Description

A Professional, Secure, and Reliable Gateway with Centralized Management Capability
Omada Gigabit VPN Router

- Centralized Management
- Gigabit Ports
- Up to 5 WAN Ports
- Load Balance
- SSL/Wireguard/IPSec/OpenVPN
- Multi-Net DHCP
- Powerful Firewall
- Omada App

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

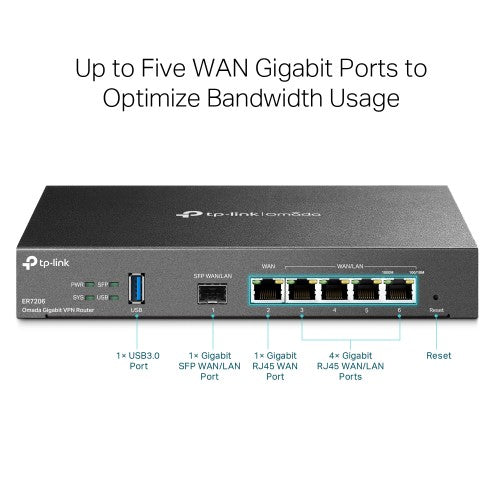

Up to Five WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN/LAN port, one gigabit RJ45 WAN port, and four freely interchangeable WAN/LAN ports allow the router to support up to five WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

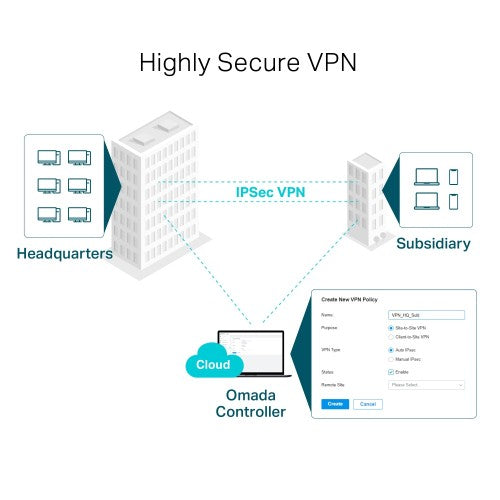

Highly Secure VPN
ER7206 supports multiple VPN protocols including SSL / Wireguard/ IPSec/ OpenVPN/ GRE VPN§/PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec and PPTP.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Memory
Flash memory	128 MB
Internal memory	512 MB
Performance
Internal memory type	DDR4
Flash memory	128 MB
Internal memory	512 MB
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Port forwarding	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Static route	Yes
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Management features
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Reset button	Yes
Ports & interfaces
USB ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports	5
DC-in jack	Yes
SFP module slots quantity	1
Protocols
DHCP server	Yes
DHCP client	Yes
Technical details
LED indicators	Yes
Product colour	Black
Security
Security algorithms	SNMP, SNMPv2, SNMPv3
VPN tunnels quantity	50
Features
Internal memory type	DDR4
Flash memory	128 MB
Internal memory	512 MB
Design
LED indicators	Yes
Product colour	Black
Power
Output voltage	12 V
Output current	1 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	226 mm
Depth	131 mm
Height	35 mm
