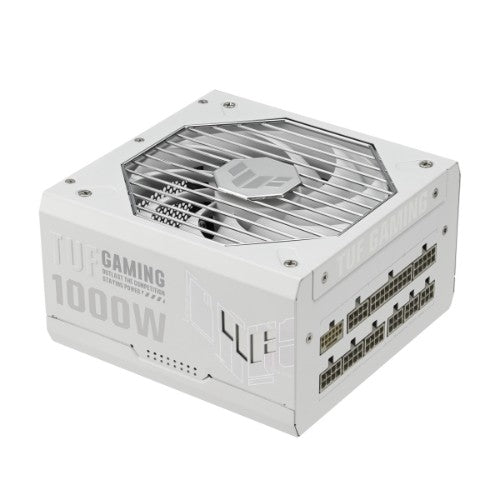

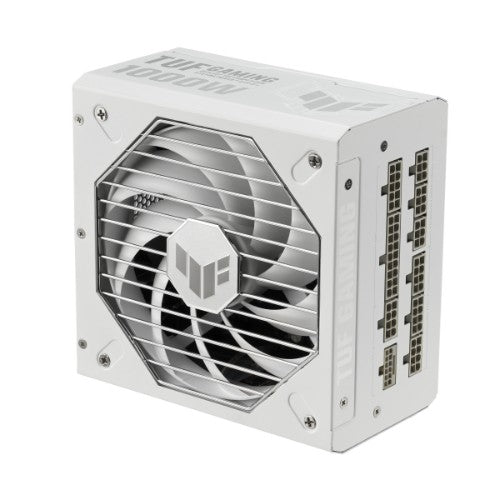

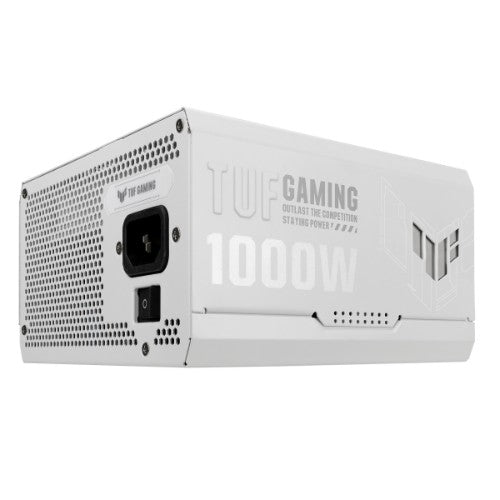

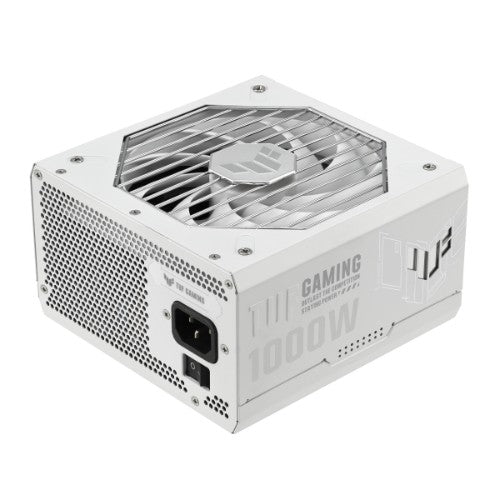

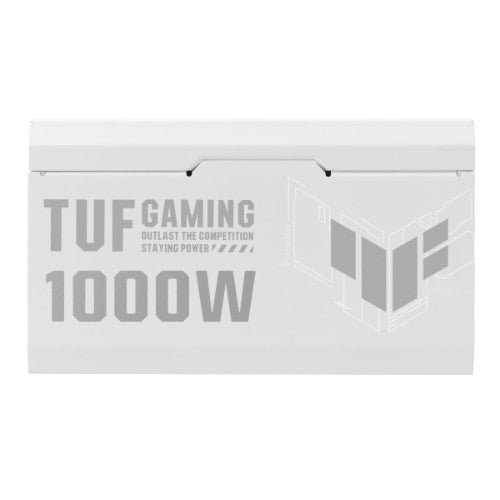

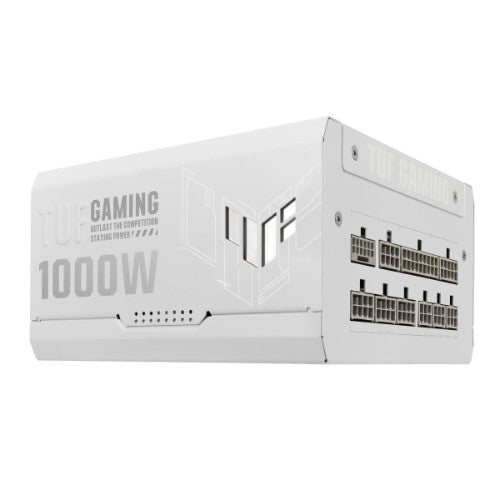

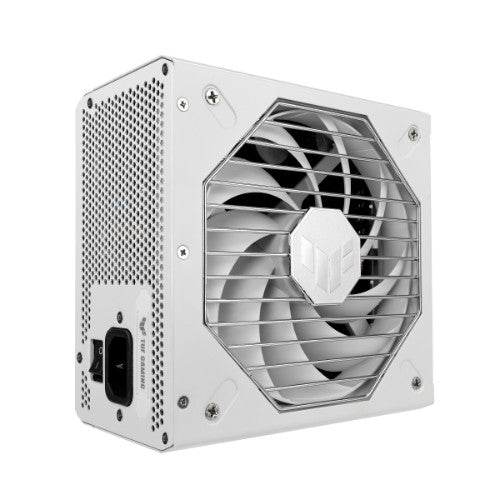

ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX

TUF Gaming 1000W Gold Gaming Power Supply (1000 Watt, fully modular power supply, ATX 3.1 compatible, Axial-tech fan, PCB coating, double ball bearing, white)

Key Features

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs
• A protective PCB coating protects against moisture, dust, and extreme temperatures
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• Fully modular etched cables keep your rig neat and tidy

Description

Built For The Long Haul
The ASUS TUF Gaming 1000W Gold White Edition packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

Durability

TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold White Edition empowers you to build in confidence.​

Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

ENGINEERING

80 Plus Gold Certification
Heart of gold
The TUF Gaming 1000W Gold White Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

ATX 3.1 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​

Axial-tech Fan Design
Better, faster, stronger

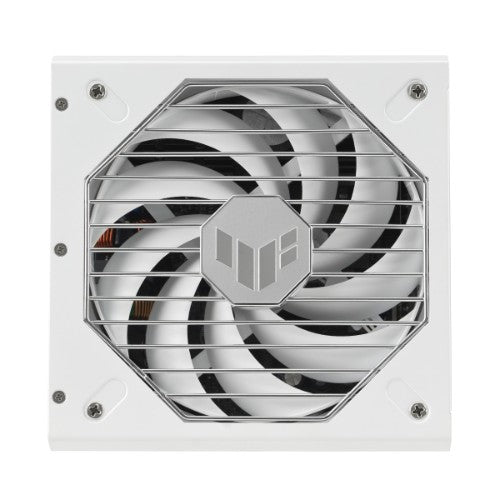

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

10-year Warranty
A decade of power​
We're so confident about the reliability of the TUF Gaming 1000W Gold White Edition that we back it with a 10-year warranty.​

Fully Modular Etched Cables
Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Bearing technology	Ball bearing
Design
80 PLUS certification	80 PLUS Gold
Product colour	White
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	1000 W
Combined power (+5V)	130 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Efficiency	92%
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
PCI Express power cable length	67.5 cm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (8-pin)	4
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Certificates
Compliance certificates	RoHS
80 PLUS certification	80 PLUS Gold
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included	Yes
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.48 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth	200 mm
Package width	310 mm
Package height	108 mm
Package type	Box
Package weight	3.17 kg
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
