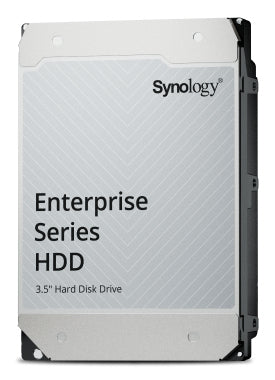

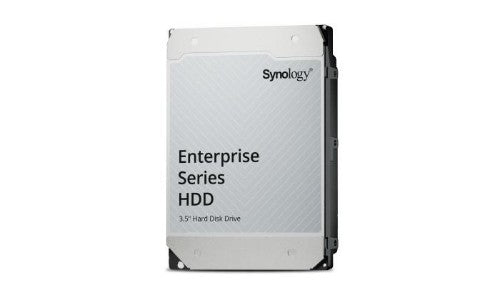

Synology HAT5310-20T | 20TB | 3.5" | SATA HDD

Weight 0.720000 MPN HAT5310-20T Vendor Synology Piece Gross Weight 0.72 KG Piece Height (mm) 26 Piece Length (mm) 147 Piece Qty 1 Piece Width (mm) 102

Description

Enterprise storage drives for Synology systems
Synology HAT5300 series HDDs offer class-leading performance thanks to tight integration with DSM and Synology hardware. With over 500,000 hours of in-house validation testing and backed by Synology’s 5-year limited warranty1, the HAT5300 series bring unmatched reliability to Synology deployments.

Performance
Up to 281 MB/s sustained data transfer2

Optimization
Up to 23% faster sequential read in Synology NAS3

Reliability
Purpose-built for Synology servers running 24/7

Updates
Automatic firmware updates with DSM

Consistent performance scaling
Through testing and optimizations, HAT5300 series HDDs has been tuned to deliver up to 23% higher sustained sequential read performance3 in demanding multi-user environments.

Built for peak performance
Rigorous validation
Over 500,000 hours of stress testing with Synology devices ensure that HAT5300 series drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.

Effortless firmware updates
Automatic firmware updates through DSM mean that HAT5300 drives always benefit from the latest enhancements.

Durability for 24/7 environments
With an MTBF4 rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and persistent write cache technology to minimize data corruption in the event of sudden power loss.

5-year warranty
At Synology, we are committed to product innovation and quality. HAT5300 series drives are backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.

Specifications

Hard drive
Component for	NAS
HDD sustained transfer rate	281 MiB/s
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Features
Type	HDD
Component for	NAS
HDD sustained transfer rate	281 MiB/s
Interface	Serial ATA III
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Storage drive buffer size	512 MB
24/7 operation	Yes
Power
Power consumption (write)	8.11 W
Power consumption (read)	8.11 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Technical details
Interface	Serial ATA III
Other features
Interface	Serial ATA III
