Antec FLUX PRO EUV Full Tower Black, Wood

Full-Tower, Steel + Plastic + Glass + Wood, 8 Expansion Slots, 2.5"/3.5", USB 3.0, USB Type-C, 3.5 mm, 4x 140 mm / 2x 120 mm, 530 x 245 x 545 mm, 13.60 Kg

Description

FLUX PRO
Full Tower Case

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Multi-Directional Vent Design

Pre-Installed
6 x High-Performance
PWM FANs

With built-in ARGB &
PWM fan control hub in sync with M/B

Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal Cooling
Air intake via the front mesh provides smooth venting channel throughout the case.

Premium Wood

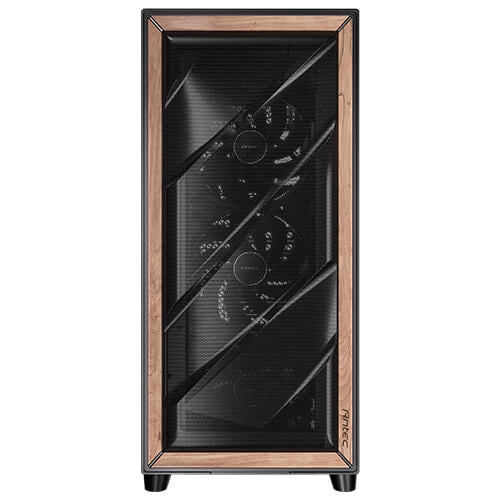

Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

Innovative iShift PSU 90° Mount
In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the includedextension cable is available. Plug in the cable connectorfrom the right side, routing has never been easier.
Support 180mm long PSU.

PSU Installation
Left side of PSU chamber is detachable, making it easy to install the power supply.

CPU/GPU Dual Temperature Display

Intuitive hardware temperature display design with 4 different modes:

- GPU & CPU On
- GPU & CPU Off
- Only CPU On
- Only GPU On

*Antec iUnity software must be installed.

ANTEC IUNITY
The Antec iUnity provides instant data on PC specs, loads, and usage.

Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

Removable Cooling Bracket on Top of PSU Shroud
When fans (2 available) are installed on the case bottom, remove the top shroud bracket to maximize the airflow, fulfilling the optimal vertical cooling scheme.

Removable Cooling Bracket on Top of PSU Shroud
Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.

Removable Front Cooling Bracket
- Vertically adjustable to 5 positions to fit the huge top AIO.
- Full cut-out design for enhanced air intake.
- Can install fans or radiators.

Recommended Water Cooling Configuration

Fan & Radiator Support
Can only accommodate Top 420mm + Front 360mm radiator, or Front 420mm + Top 360mm radiator at the same time.

Support Vertical GPU
Mount With Vertical Bracket
Fully-open PCI slot covers can be removed to install the graphics card vertically.

Tool-Free Panel Design

Optimal Cable Routing Experience

Cable Management
- Cable tie x 3
- Velcro strap X 3

Modular Hard
Drive Cage

I/O Panel
Dust plugs included.

Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	4
Number of 2.5" bays	2
Number of internal 3.5" bays	4
Supported motherboard form factors	ATX, EATX, ITX, micro ATX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black, Wood
Number of expansion slots	8
Maximum CPU cooler height	19 cm
Maximum graphics card length	45.5 cm
Maximum PSU length	47 cm
Type	PC
Form factor	Full Tower
Material
Material	Glass, Plastic, Steel, Tempered glass, Wood
Indication
LED indicators	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Glass, Plastic, Steel, Tempered glass, Wood
Number of 5.25" bays	0
Number of 3.5" bays	4
Number of 2.5" bays	2
Number of internal 3.5" bays	4
Supported motherboard form factors	ATX, EATX, ITX, micro ATX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Cable management	Yes
Product colour	Black, Wood
Number of expansion slots	8
Maximum CPU cooler height	19 cm
Maximum graphics card length	45.5 cm
Maximum PSU length	47 cm
Type	PC
Form factor	Full Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	120,140,240,280,360,420 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,240,360 mm
Front fans installed	3x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120,140 mm
Bottom radiator sizes supported	120,240 mm
Pulse-width modulation (PWM) support	Yes
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	245 mm
Depth	530 mm
Height	545 mm
Weight	13.6 kg
Packaging data
Package weight	16.6 kg
