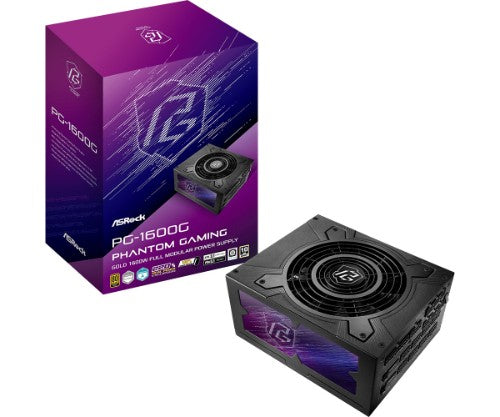

Asrock PG-1600G power supply unit 1600 W 24-pin ATX ATX Black

1600 W, Full Modular, ATX3.1, 80 PLUS GOLD, 135mm FDB Fan

Key Features

• 80 PLUS® GOLD Certified
• Cybenetics PLATINUM and LAMBDA A Certified
• ATX3.1 & PCIe5.1 Ready

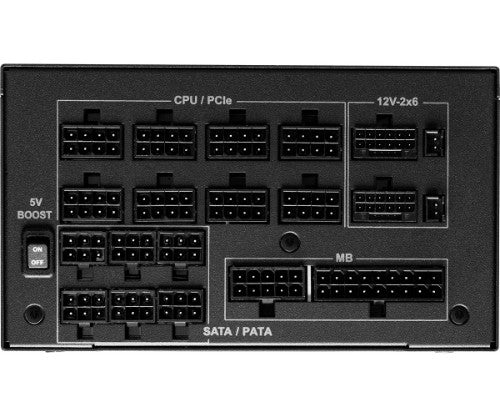

• Fully Modular Cable Design
• Native 12V-2x6 Connector Dual Color Design with TempGuard
• 100% Highly Reliable Japanese Capacitors
• 135mm Striped Axial FDB Fan
• iCool Intelligent Fan Control Mode
• 5V BOOST Mode
• Remarkable 10-Year Warranty

Description

POWERFUL FUTURE
BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

Cable Over-Temperature Protection
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.

+5V BOOST Mode
Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

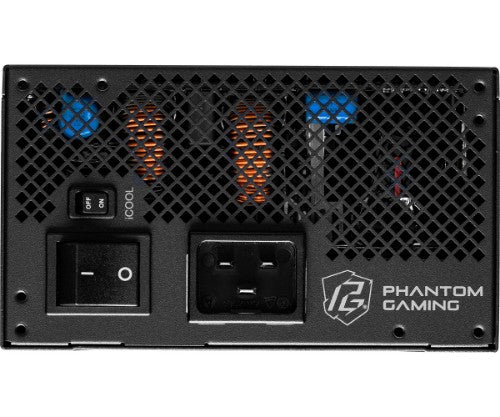

iCOOL Intelligent Fan Control Mode
●iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

80 PLUS & CYBENETICS CERTIFIED
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.

CYBENETICS LAMBDA A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

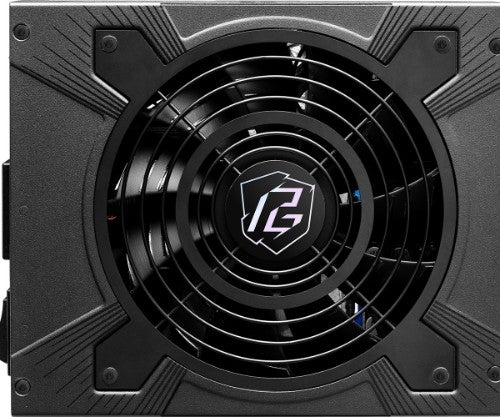

135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.

Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
On/off fan switch	Yes
Power
Total power	1600 W
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	100,450 mm
PCI Express power cable length	67.5 cm
CPU power cable length	65 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	6
PCI Express power connectors (6+2 pin)	8
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12+4 pin)	2
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Packaging data
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold
