Gigabyte

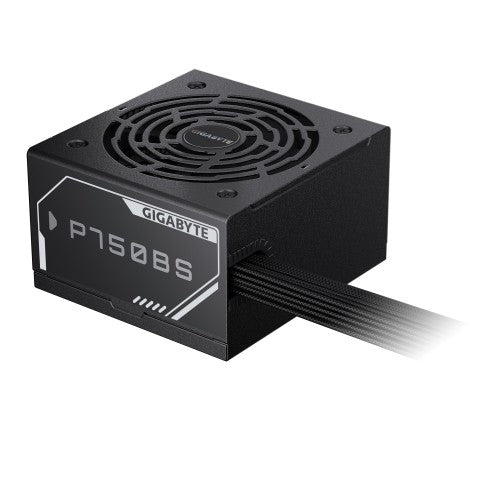

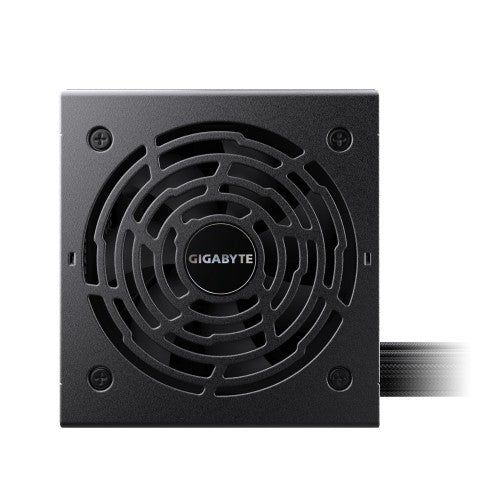

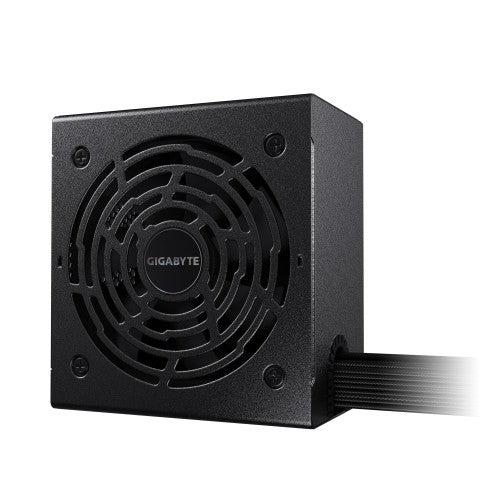

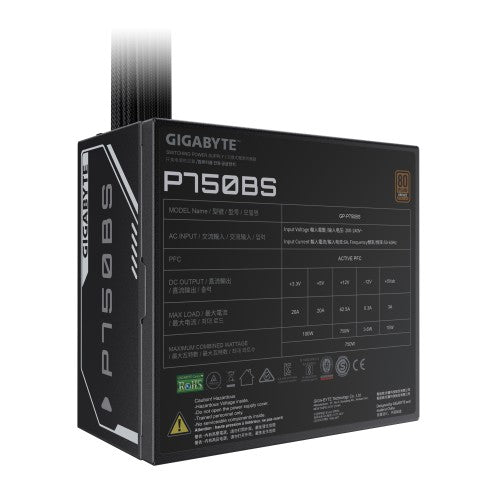

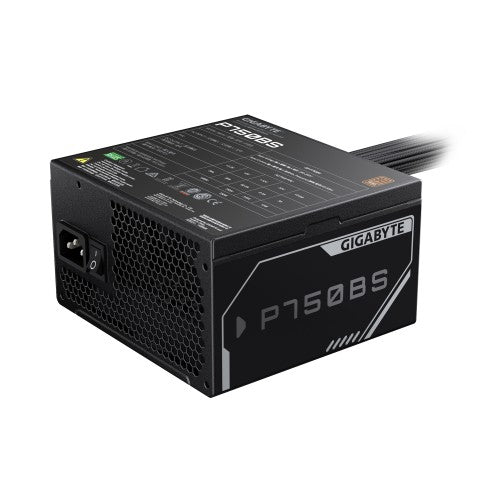

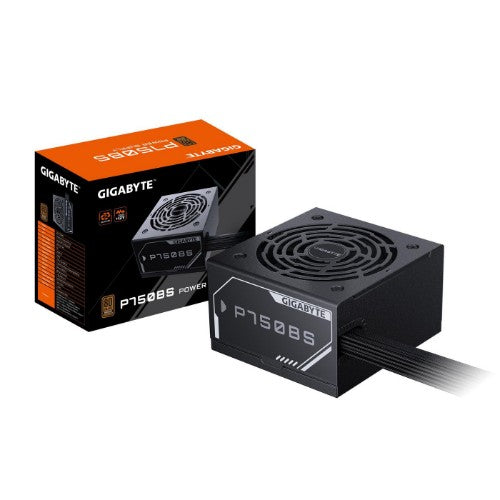

GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug

SKU GP-P750BS
£40.99
£40.99
Excluding taxes
P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug

Key Features

  • 80 PLUS Bronze certified (230V EU)
  • 120mm Silent Fluid Dynamic Bearing (FDB) fan
  • Soft-textured embossed cables
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
Purpose PC
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
Design
80 PLUS certification 80 PLUS Bronze
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Power
Total power 750 W
Power Good signal delay range 100 - 150 ms
AC input voltage 200 - 240 V
AC input frequency 50/60 Hz
Input current 6 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 750 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time 16 ms
Efficiency 88%
Ports & interfaces
Motherboard power cable length 60 cm
SATA power cable length 150,500 mm
Peripheral (Molex) power cable length 150,600 mm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 7
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 4
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Floppy drive power connector 2
Floppy disk drive connector Yes
ATX power connector (20+4 pin) Yes
Cabling type Non-Modular
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 2.22 kg
Packaging data
Package depth 206 mm
Package width 254 mm
Package height 117 mm
Package type Box
Package weight 2.68 kg
Technical details
Warranty period 3 year(s)
Certificates
80 PLUS certification 80 PLUS Bronze
Logistics data
Warranty period 3 year(s)
