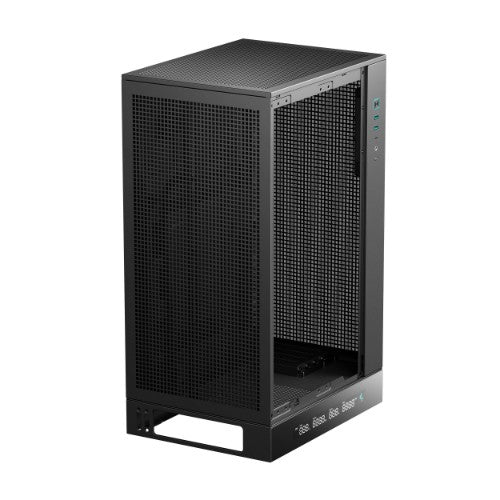

DeepCool CH270 Digital Mini Tower Black

CH270 Digital

Description

The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.

GO MICRO

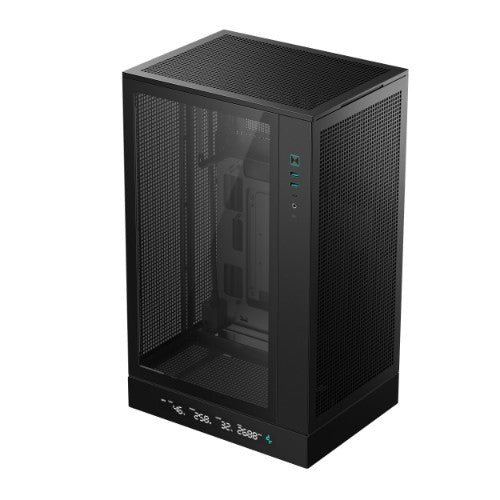

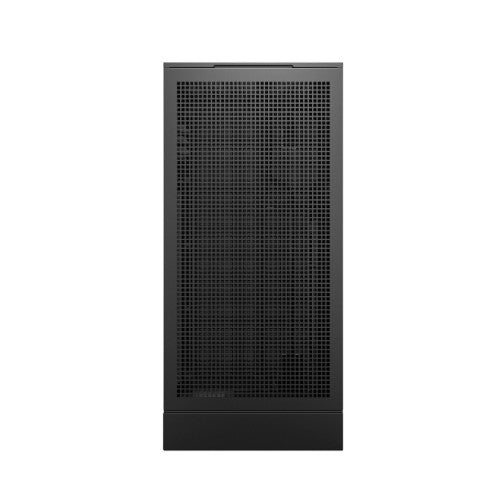

The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.

DIGITAL VERTICAL BASE

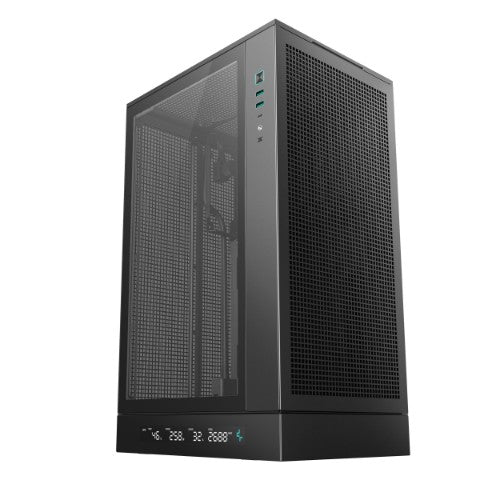

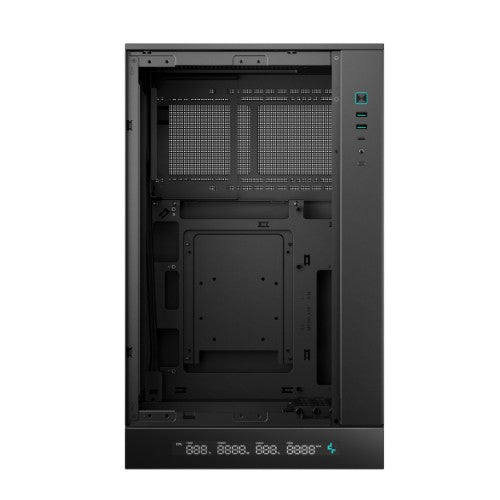

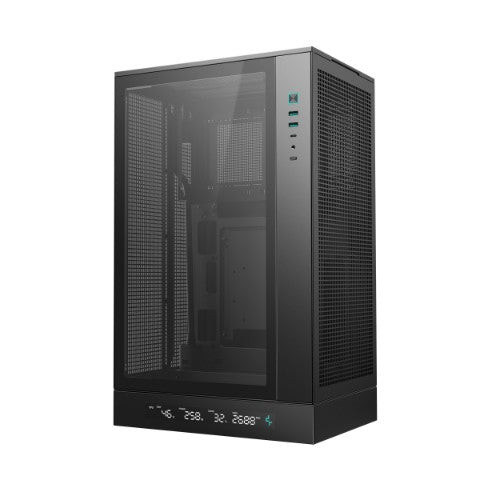

A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE

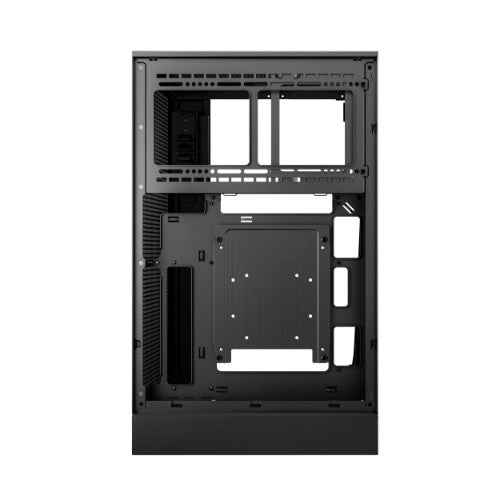

Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

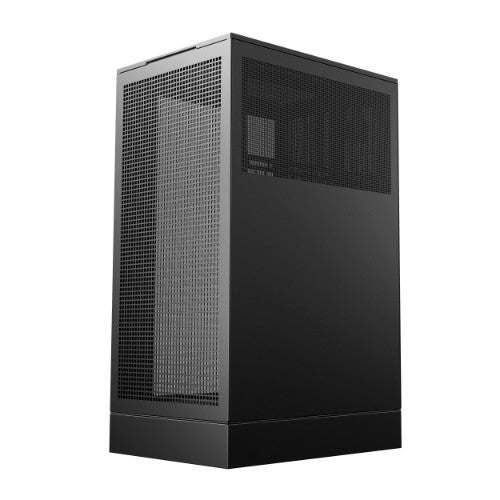

UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Maximum PSU length	15 cm
Type	PC
Form factor	Mini Tower
Material
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Design
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Maximum PSU length	15 cm
Type	PC
Form factor	Mini Tower
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Number of side fans supported (max)	3
Side fans diameters supported	120,240 mm
Number of top fans supported (max)	2
Top fans diameters supported	120 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Bottom radiator sizes supported	120 mm
Side radiator sizes supported	120,240,360 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	225 mm
Depth	296 mm
Height	486 mm
Weight	5.8 kg
