MSI

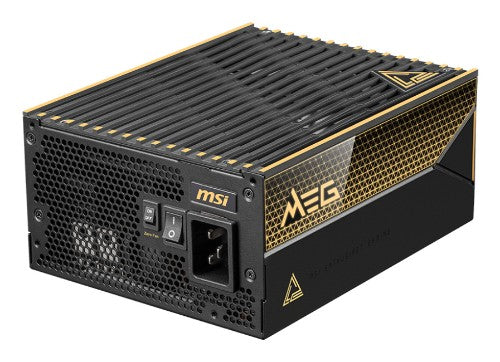

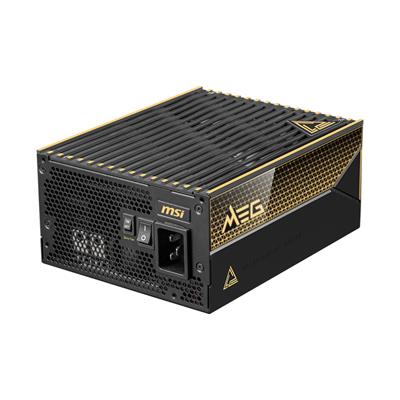

MSI MEG Ai1600T PCIE5 power supply unit 1600 W 24-pin ATX ATX Black

SKU MEG AI1600T PCIE5
£599.99
£473.67
£599.99
£473.67
Excluding taxes
1600W, 135 mm, 80 PLUS Titanium

Description

MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.

Specifications

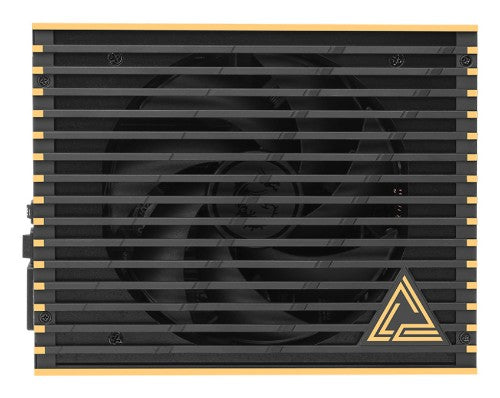

Cooling
Fan diameter 13.5 cm
Design
80 PLUS certification 80 PLUS Titanium
Product colour Black
Fan diameter 13.5 cm
Power
Total power 1600 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 1600 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 22 A
Max output current (+12V) 133.3 A
Max output current (+5V) 22 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Efficiency 94%

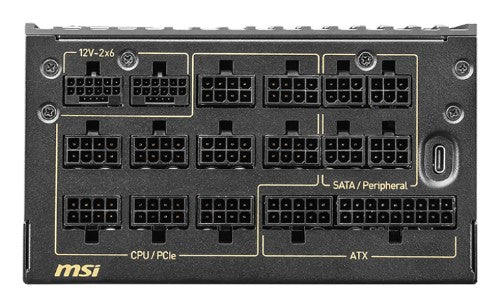

Ports & interfaces
Motherboard power connector 24-pin ATX
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 8
EPS power connector (8-pin) No
PCI Express power connectors (6+2 pin) 9
Cabling type Fully-Modular
EPS power connector (4+4 pin) Yes
PCI Express power connectors (16-pin) 2
Performance
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Titanium
Purpose PC
Bearing technology DBB
Weight & dimensions
Width 190 mm
Depth 150 mm
Height 86 mm
Certificates
80 PLUS certification 80 PLUS Titanium
