DeepCool AG620 BK ARGB V2 Chipset, Motherboard Air cooler 12 cm Black 1 pc(s)

Intel LGA1851/1700/1200/1151/1150/1155, AMD AM5/AM4, 300~1950 RPM±10%, 67.88 CFM, 2.04 mmAq, ≤29.4 dB(A), 4-pin PWM, 120×120×25 mm

Description

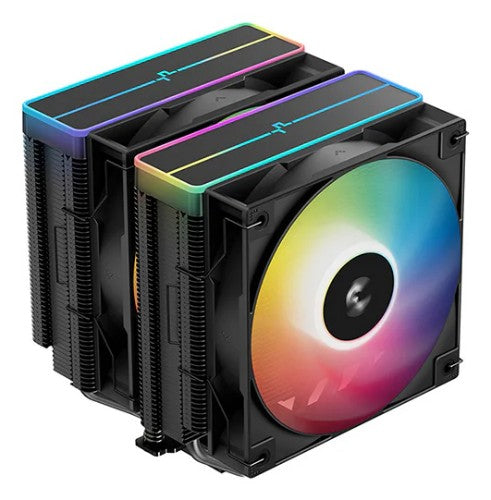

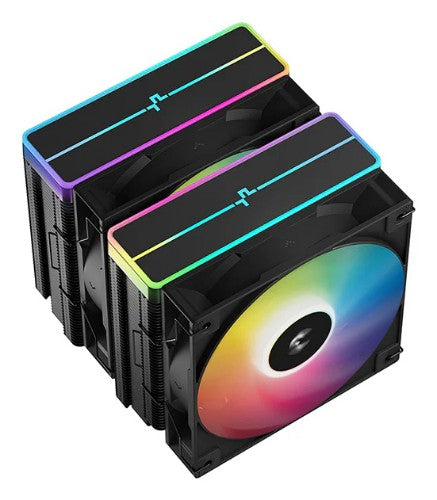

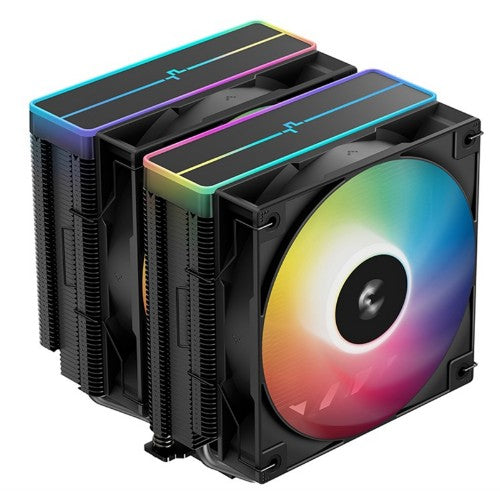

The DeepCool AG620 BK ARGB V2 is an all-black dual-tower CPU cooler focused on high performance efficiency boasting six heat pipes packed in the dense heat sink tower for optimal heat dissipation and paired with two fine-tuned 120mm ARGB PWM fans for powerful cooling.

BRILLIANCE IN DESIGN
DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG620 BK ARGB V2 provides an unprecedented and unique lighting effect.

SUBSTANTIAL COOLING POWER

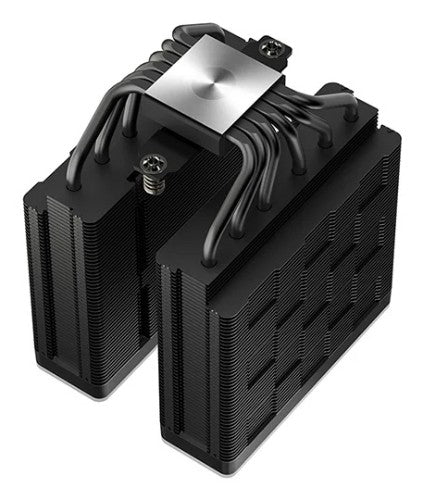

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

BRIGHT, QUIET, AND CAPABLE

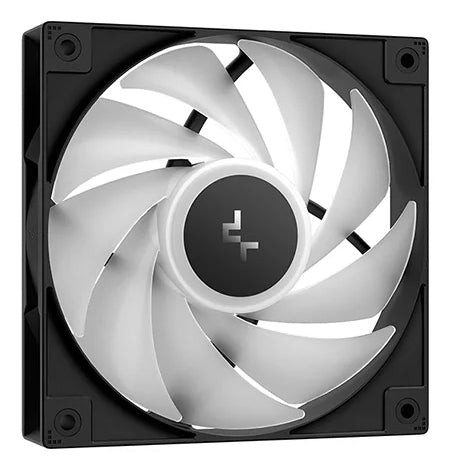

Get the best of both worlds with two fine-tuned 120mm ARGB PWM fans designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.

SIMPLE AND SECURE INSTALLATION

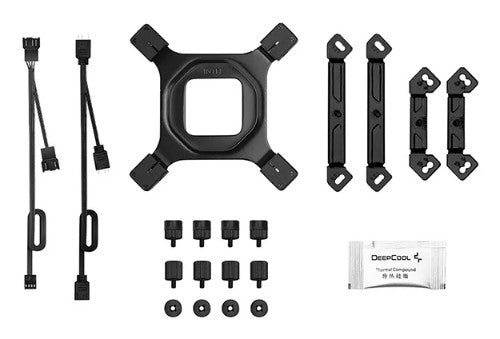

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Specifications

Performance
Suitable location	Chipset, Motherboard
Fan connector	4-pin
Number of heat pipes	6
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	67.88 cfm
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Fan noise level (max)	29.4 dB
Fan static pressure	2.04 mmH2O
Fan speed (min)	270 RPM
Fan speed (max)	2145 RPM
Design
Fan connector	4-pin
Number of heat pipes	6
Number of fans	2 fan(s)
Product colour	Black
Illumination LED	Yes
LED connector type	3-pin
Technical details
Number of heat pipes	6
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	67.88 cfm
Number of fans	2 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Rated current	0.14 A
LED voltage	5 V
Fan power consumption	1.68 W
LED power consumption (fan)	6.4 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Width	136 mm
Depth	129 mm
Height	161 mm
Weight	1.33 kg
Other features
LED voltage	5 V
