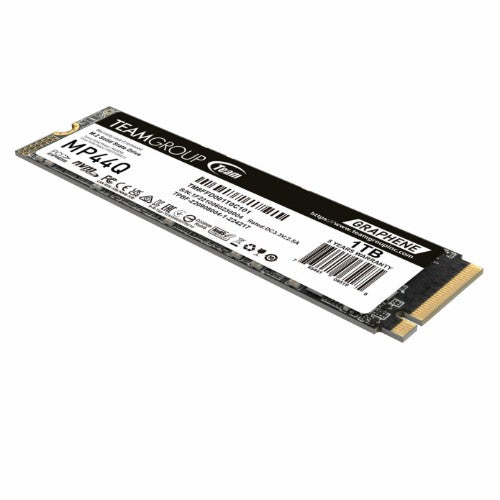

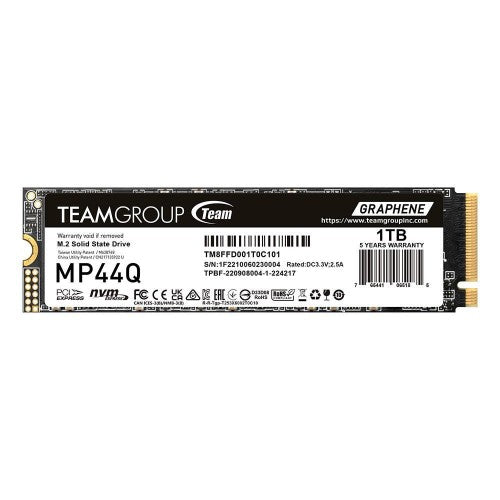

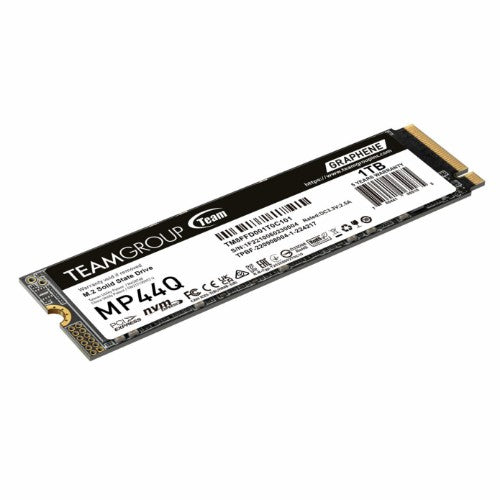

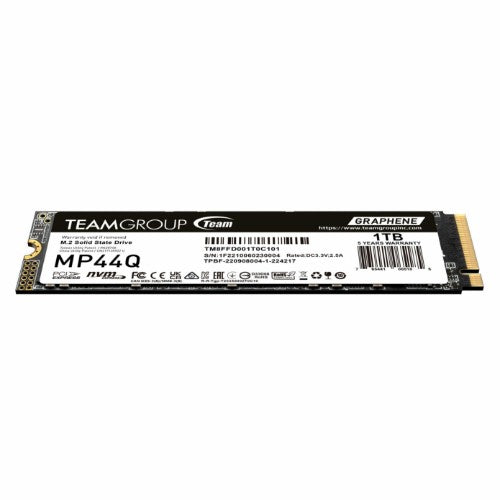

Team Group MP44Q 1 TB M.2 PCI Express 4.0 NVMe QLC 3D NAND

1TB, SSD M.2, 3D QLC NAND, PCIe 4.0 x4, NVMe, S.M.A.R.T., 22x80x3.7mm, 7g

Key Features

• Outstanding Performance Exceeding 7,000MB/s Transmission Speed
• Effortless Storage Expansion with 3D QLC NAND
• Exclusive Intelligent S.M.A.R.T. Monitoring Software
• Graphene Heat Dissipation Label
• Recyclable Packaging Materials

Description

Outstanding Performance Exceeding 7,000MB/s Transmission Speed
Featuring a PCIe Gen4 x4 interface and SLC Caching technology, the SSD delivers ultra-fast sequential read and write speeds of up to 7,400 MB/s and 6,500 MB/s respectively, facilitating high-speed file transfers and significantly boosting work efficiency.

Effortless Storage Expansion with 3D QLC NAND
The product adopts 3D QLC NAND, offering selections of capacity up to 4TB. It supports PCIe Gen4 x4 interface and NVMe specifications, ensuring high-speed data transmission while expanding and upgrading storage capacity to meet all document processing and storage needs.

Exclusive Intelligent S.M.A.R.T. Monitoring Software
Team Group Inc. has exclusively-patented SSD monitoring software S.M.A.R.T., which enables quick and easy setup and detection, making SSD quality and performance monitoring an effortless task.

Graphene Heat Dissipation Label
Incorporating Team Group Inc. exclusively-patented graphene heat dissipation label with a thickness less than 1mm, the SSD effectively eliminates any potential interference with assembly mechanisms. Together with the motherboard's native heat sink, the graphene dissipation label effectively addresses the heat generated by the SSD running in high speed.

Recyclable Packaging Materials
By using Recyclable packaging materials and obtaining environmental protection certifications such as RoHS, REACH, ESG, we contribute to realizing sustainable living.

Five-year Warranty
Users enjoy a 5-year warranty for the SSD. The product is subjected to rigorous quality control and inspection at every stage, ensuring excellent quality.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1 TB
Memory type	QLC 3D NAND
Performance
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Interface	PCI Express 4.0
Component for	PC/Laptop
NVMe	Yes
Sequential write speed (AS SSD)	6200 MB/s
Sequential read speed (AS SSD)	7400 MB/s
TBW rating	512
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	1 TB
S.M.A.R.T. support	Yes
Memory type	QLC 3D NAND
Mean time between failures (MTBF)	1600000 h
Endurance
Mean time between failures (MTBF)	1600000 h
Features
Interface	PCI Express 4.0
Component for	PC/Laptop
NVMe	Yes
Sequential write speed (AS SSD)	6200 MB/s
Sequential read speed (AS SSD)	7400 MB/s
TBW rating	512
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	1 TB
Windows operating systems supported	Yes
S.M.A.R.T. support	Yes
Linux operating systems supported	Yes
Memory type	QLC 3D NAND
Mean time between failures (MTBF)	1600000 h
SSD form factor	M.2
JEDEC standard	Yes
M.2 SSD size	2280 (22 x 80 mm)
Power
Operating voltage	3.3 V
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	7 g
Height	3.7 mm
Depth	80 mm
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 90%
Operating shock	1500 G
Operating vibration	20 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 90%
Operating shock	1500 G
Operating vibration	20 G
SSD form factor	M.2
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
