Ubiquiti

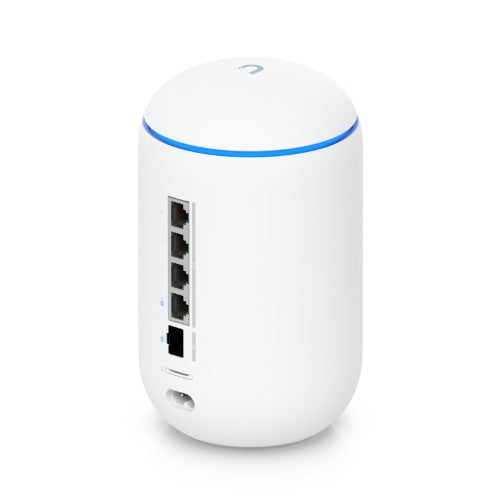

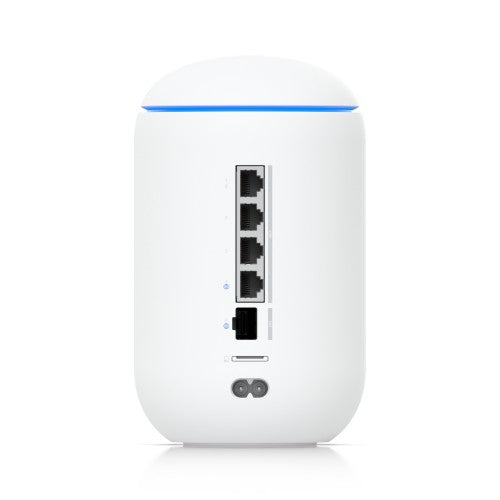

Ubiquiti Dream 7 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) White

SKU UDR7
£217.27
£217.27
Excluding taxes
UDR7 (15W), 10G SFP+, 2.5 GbE RJ45, 3x 2.5 GbE RJ45 including (1) PoE, 160 m² (1,750 ft²), WiFi 7, PoE, microSD

Description

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.

Specifications

Ethernet LAN features
Ethernet WAN Yes
Ethernet LAN interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN data rates 2500 Mbit/s
DSL features
DSL WAN No
Mobile network
SIM card slot No
3G/4G USB modem compatibility No
Network
Routing protocols OSPF
MAC address table 2000 entries
Ethernet LAN interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Networking standards IEEE 802.1Q
Ethernet LAN data rates 2500 Mbit/s
VPN server Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
Policy-based routing Yes
Multicast support Yes
Load balancing system Yes
Maximum coverage 160 m²
Maximum Tx power (5 GHz) 26 dBmW
Maximum Tx power (2.4 GHz) 23 dBmW
Performance
Processor frequency 1500 MHz
Processor cores 4
Compatible memory cards MicroSD (TransFlash)
Built-in processor Yes
Internal memory 3000 MB
Memory card slot(s) Yes
Processor architecture ARM Cortex-A53
Packaging content
Number of products included 1 pc(s)
Manual Yes
Cables included AC
WAN connection
Ethernet WAN Yes
DSL WAN No
SIM card slot No
3G/4G USB modem compatibility No
Wireless LAN features
Top Wi-Fi standard Wi-Fi 7 (802.11be)
WLAN data transfer rate (max) 5700 Mbit/s
Wi-Fi band Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN data transfer rate (first band) 688 Mbit/s
WLAN data transfer rate (second band) 4300 Mbit/s
WLAN data transfer rate (third band) 5700 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ports & interfaces
USB port No
Ethernet LAN (RJ-45) ports 4
Compatible memory cards MicroSD (TransFlash)
Memory card slot(s) Yes
Fiber optic connector SFP+
Management features
Web-based management Yes
Reset button Yes
Quality of Service (QoS) support Yes
MU-MIMO technology Yes
MIMO Yes
Security
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
MAC address table 2000 entries
Firewall Yes
Filtering Yes
Protocols
Routing protocols OSPF
DHCP server Yes
Design
Product type Tabletop router
LED indicators Status
Housing material Polycarbonate (PC)
Product colour White
Display type LCM
Built-in display Yes
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Other features
Internal memory 3000 MB
Antenna
Antenna design Internal
Antenna gain level (max) 7 dBi
Features
Processor frequency 1500 MHz
Processor cores 4
Built-in processor Yes
Internal memory 3000 MB
Processor architecture ARM Cortex-A53
Bluetooth Yes
Harmonized System (HS) code 8517.62
Number of simultaneously connected devices (max) 300
Power
Power supply 50 W
Power source type AC, PoE
Power over Ethernet (PoE) Yes
Power consumption (typical) 26 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE) voltage 57 V
Operational conditions
Operating temperature (T-T) -10 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 110 mm
Weight 1.1 kg
Height 184.1 mm
Depth 110 mm
Packaging data
Manual Yes
Cables included AC
Number of products included 1 pc(s)
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Logistics data
Export Control Classification Number (ECCN) 5A992
Harmonized System (HS) code 8517.62
