Corsair RMe Series RM750e power supply unit 750 W 20+4 pin ATX ATX White

750 W, ATX 3.1, 150 x 140 mm, White

Key Features

• Fully-Modular design for cleaner wiring
• Native 600W-capable 12V-2x6 cable for high-end GPUs
• Cybenetics Gold-certified efficiency
• Ultra-flexible embossed cables with low-profile combs
• Compact size for improved cable management
• Intel® ATX 3.1 Certified, PCIe 5.1 compatible

Description

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies include a dedicated 12V-2x6 GPU power cable, ATX 3.1 certification and PCIe 5.1 compliance, and Cybenetics™ Gold rated efficiency for a quiet, reliable build. The RMe PSUs' compact size also allow for easier cable management.

50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.

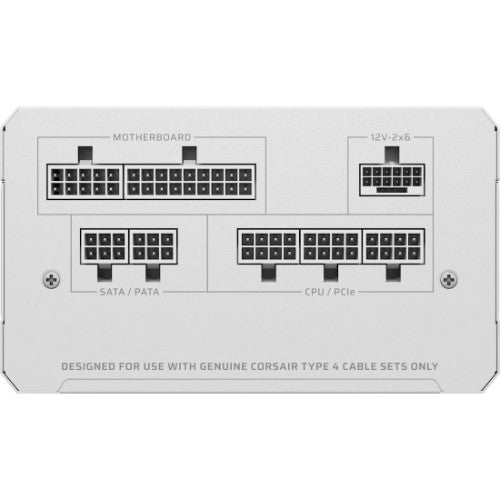

FULLY MODULARCABLING
Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2x6 GPU power cable for next-gen GPUs with Dual-Color Connector for visual confirmation of a secure connection

CYBENETICS GOLD CERTIFIED
Steady power output at up to 90% efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.

LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.

A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C-rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	White
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Combined power (+3.3V)	110 W
Combined power (+12V)	750 W
Combined power (+5V)	110 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	100,450 mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
Number of PATA power connectors	4
PCI Express power connectors (6+2 pin)	1
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	1
PCI Express power connectors (12+4 pin) cable length	650 mm
Number of EPS connectors	2
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2.9 kg
Certificates
80 PLUS certification	80 PLUS Gold
