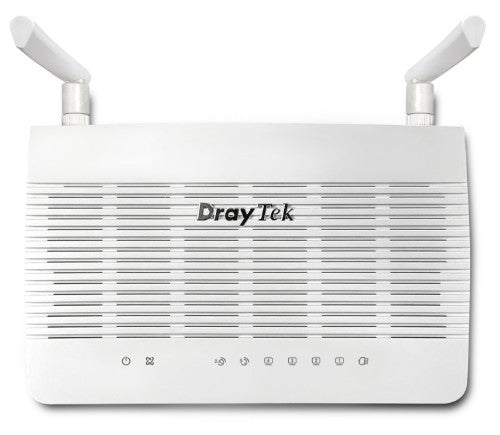

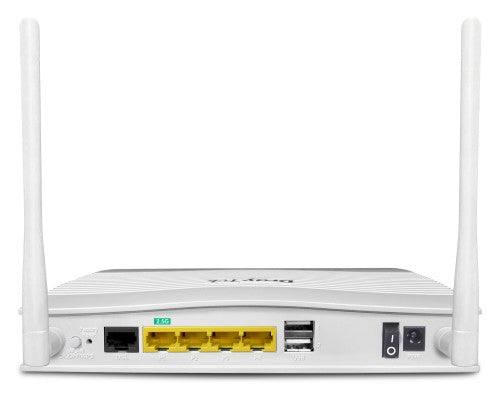

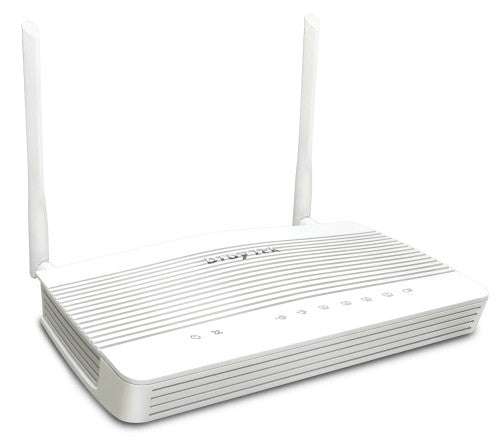

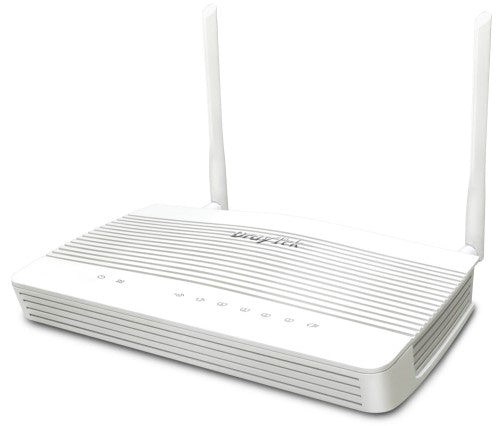

DrayTek 2767ax VDSL 2.5G + AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Vigor 2767ax VDSL 2.5GbE Ethernet Router with AX3000 Wireless

Key Features

• VDSL2 or 2.5Gb Ethernet Router with Failover
• 1x 2.5 Gigabit RJ-45 switchable WAN/LAN Port
• 3x Gigabit RJ-45 LAN Ports
• In total 4 (3+1) LAN ports (1 is the WAN/LAN switchable)
• Up to 2.3Gbps Firewall Throughput
• Up to 300Mbps IPsec VPN Throughput
• 16x LAN-to-LAN & Remote Teleworker VPN Tunnels
• AX3000 – Wi-Fi 6 Dual Band Wireless (‘ax’ models)
• SPI Firewall and Content Filtering
• Compatible with VigorACS central management platform

Description

The DrayTek Vigor 2767 is a powerful, future-ready router engineered to deliver secure, reliable, and ultra-fast internet connectivity for small offices, home offices, and SME businesses. Running on DrayOS 5, it combines modern performance with flexible configuration, making it ideal for today’s Superfast Fibre services and tomorrow’s multi-gigabit broadband. A dedicated WAN interface supports VDSL2 and ADSL2+ connection, while a 2.5 Gigabit Ethernet switchable WAN/LAN port provides versatility for FTTP services or as a backup failover. With firewall throughput up to 2.3Gbps, the Vigor 2767 handles demanding workloads such as large file transfers, 4K video streaming, cloud services, and online gaming with ease. Its design ensures smooth, responsive performance across multiple devices, delivering reliable connectivity for both work and entertainment.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Full duplex	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000/2500Base-T
DSL features
DSL WAN	Yes
Internal modem	Yes
ADSL2+	Yes
VDSL2	Yes
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	Yes
Mobile network generation	Not supported
Network
Wake-on-LAN ready	Yes
Routing protocols	BGP, RIPng, RIP-1, OSPF, RIP-2
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
VPN tunnels quantity	16
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth OpenVPN WireGuard EasyVPN - New!
Port forwarding	Yes
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000/2500Base-T
Port triggering	Yes
Number of guest networks (5 GHz)	8
Number of guest networks (2.4 GHz)	8
Wireless Distribution System (WDS) bridge	Yes
VPN Passthrough	Yes
Static route	Yes
SSID-based VLAN assignment	Yes
Policy-based routing	Yes
Multicast support	Yes
Dynamic DNS (DDNS)	Yes
Internet connection backup	Yes
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	BGP, RIPng, RIP-1, OSPF, RIP-2
DHCP server	Yes
DHCP client	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Web-based management	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Bandwidth control	Yes
Web-based setup wizard	Yes
Intelligent Mesh technology	Yes
MU-MIMO technology	Yes
Security
VPN tunnels quantity	16
VPN support	IPsec IKEv1, IKEv2, IKEv2 EAP IPsec-XAuth OpenVPN WireGuard EasyVPN - New!
URL filtering	Yes
System event log	Yes
Security algorithms	3DES, AES, SSH, HTTPS, IPSec, WPA2-Enterprise, DES, OWE, WPA2-Personal, WEP, WPA3-Enterprise, WPA3-Personal, WPA-Enterprise, WPA-Personal
Network address translation (NAT)	Yes
MAC address filtering	Yes
IP address filtering	Yes
Guest access	Yes
Firewall	Yes
DoS attack prevention	Yes
DMZ support	Yes
Filtering	Yes
Schedule access	Yes
Parental control	Yes
Stateful Packet Inspection (SPI)	Yes
Access Control List (ACL)	Yes
DDoS protection	Yes
IGMP snooping	Yes
Performance
Firmware upgradeable	Yes
Internal modem	Yes
Web-based setup wizard	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-11, RJ-45, USB
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	3000 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Design
Product type	Tabletop router
Wall mountable	Yes
On/off switch	Yes
LED indicators	DSL, LAN, Power, USB
Housing material	Plastic
Product colour	White
Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna included	Yes
Other features
Internal modem	Yes
Antenna
Antenna design	Internal & external
Detachable antenna(s)	Yes
Features
Firmware upgradeable	Yes
Operating system installed	DrayOS 5
Power
Power consumption (typical)	21.6 W
External power adapter	Yes
Weight & dimensions
Width	207 mm
Weight	506.4 g
Height	42 mm
Depth	131 mm
Packaging data
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna included	Yes
Technical details
Warranty period	2 year(s)
Logistics data
Warranty period	2 year(s)
