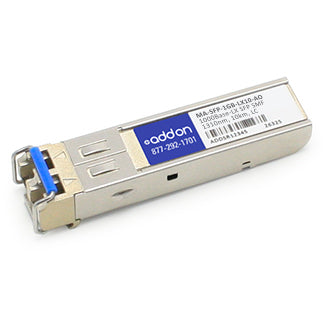

AddOn Networks MA-SFP-1GB-LX10-AO network transceiver module Fiber optic 1000 Mbit/s 1310 nm

1000Base-LX SFP Transceiver (SMF, 1310nm, 10km, LC, DOM)

Description

Meraki now Cisco® MA-SFP-1GB-LX10 Compatible 1000Base-LX SFP Transceiver (SMF, 1310nm, 10km, LC, DOM). A Meraki now Cisco® SFP transceiver that operates at 1310nm over single-mode fiber, with a maximum reach of 10km connected via a LC connector. This Meraki now Cisco® compatible SFP transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. Our SFP transceiver will initialize and perform identically to Meraki now Cisco's transceiver and is built to meet or exceed Meraki now Cisco's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Technical details
Package width	69.9 mm
Package height	30.5 mm
Maximum transfer distance	10000 m
Wavelength	1310 nm
Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum transfer distance	10000 m
Wavelength	1310 nm
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LX
Weight & dimensions
Width	12.7 mm
Depth	55.9 mm
Height	7.62 mm
Weight	68 g
Package depth	120.7 mm
Package width	69.9 mm
Package height	30.5 mm
Package weight	159 g
Packaging data
Package depth	120.7 mm
Package width	69.9 mm
Package height	30.5 mm
Package weight	159 g
