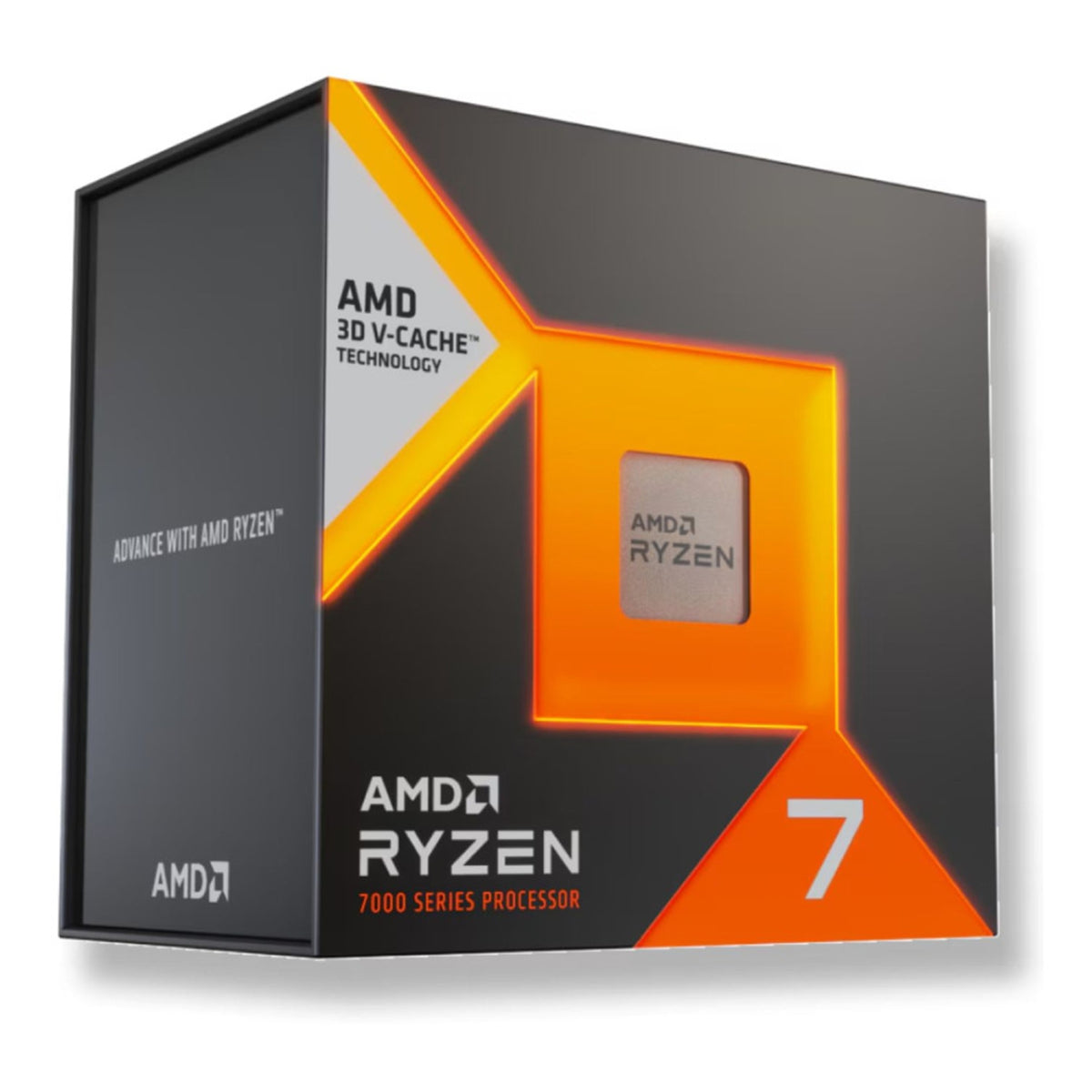

Whatever the setting or resolution, lead your team to victory with elite gaming performance from a powerful 8-core AMD gaming processor featuring AMD 3D V-Cache technology.
General Specifications
Name
AMD Ryzen 7 7700X3D
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops , Boxed Processor
Former Codename
Raphael AM5
Processor Architecture
Zen 4
# of CPU Cores
8
Multithreading (SMT)
Yes
# of Threads
16
Max. Boost Clock
Up to 4.5 GHz
Base Clock
4 GHz
L1 Cache
512 KB
L2 Cache
8 MB
L3 Cache
96 MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
AMD EXPO Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
89°C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 3.2 Gen 1 (5Gbps)
0
Native USB 2.0 (480Mbps)
1
PCI Express Version
PCIe 5.0
Native PCIe Lanes (Total/Usable)
28 , 24
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1RDDR5-5200
2x2RDDR5-5200
4x1RDDR5-3600
4x2RDDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
AMD Radeon Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C DisplayPort Alternate Mode
Yes
Security
AMD Secure Processor
Yes
AMD Platform Secure Boot
Yes
Windows Secure Boot
Yes
UEFI Secure Boot
Yes
Windows Device Guard
Yes
Supervisor Mode Execution Prevention (SMEP)
Yes
Guest Mode Execution (GMET) Trap
Yes
Virtualization-Based Security (VBS)
Yes
Windows Secured-Core PC
Yes
Firmware TPM
Yes
AMD-V (SVM)
Yes
AMD AVIC (Interrupt Virtualization)
Yes
AMD-Vi (I/O MMU Virtualization)
Yes
Second Level Address Translation (SLAT)
Yes
Advanced Encryption Standard New Instructions (AES-NI)
Yes
AMD Enhanced Virus Protection (NX bit)
Yes
AMD Shadow Stack
Yes
-
