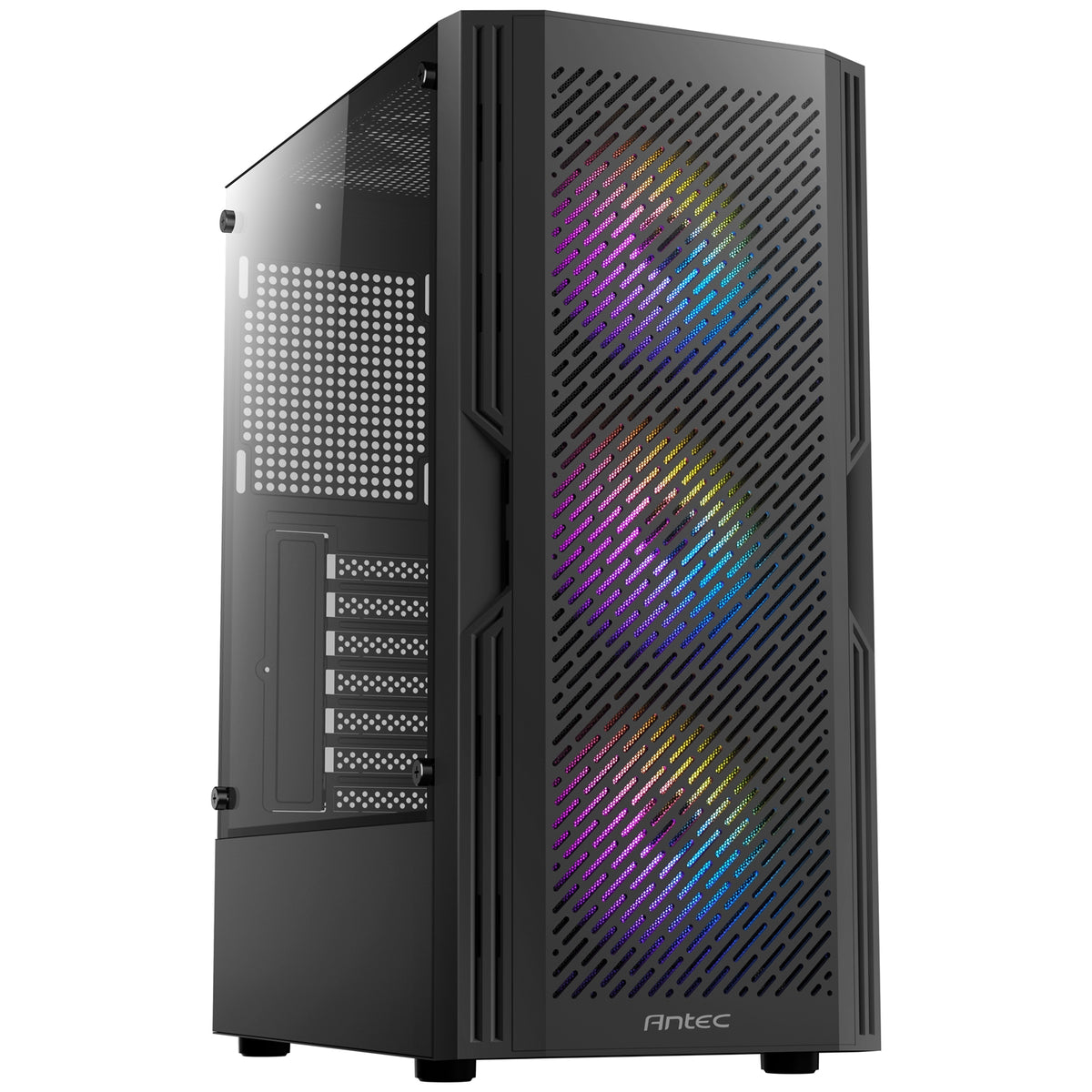

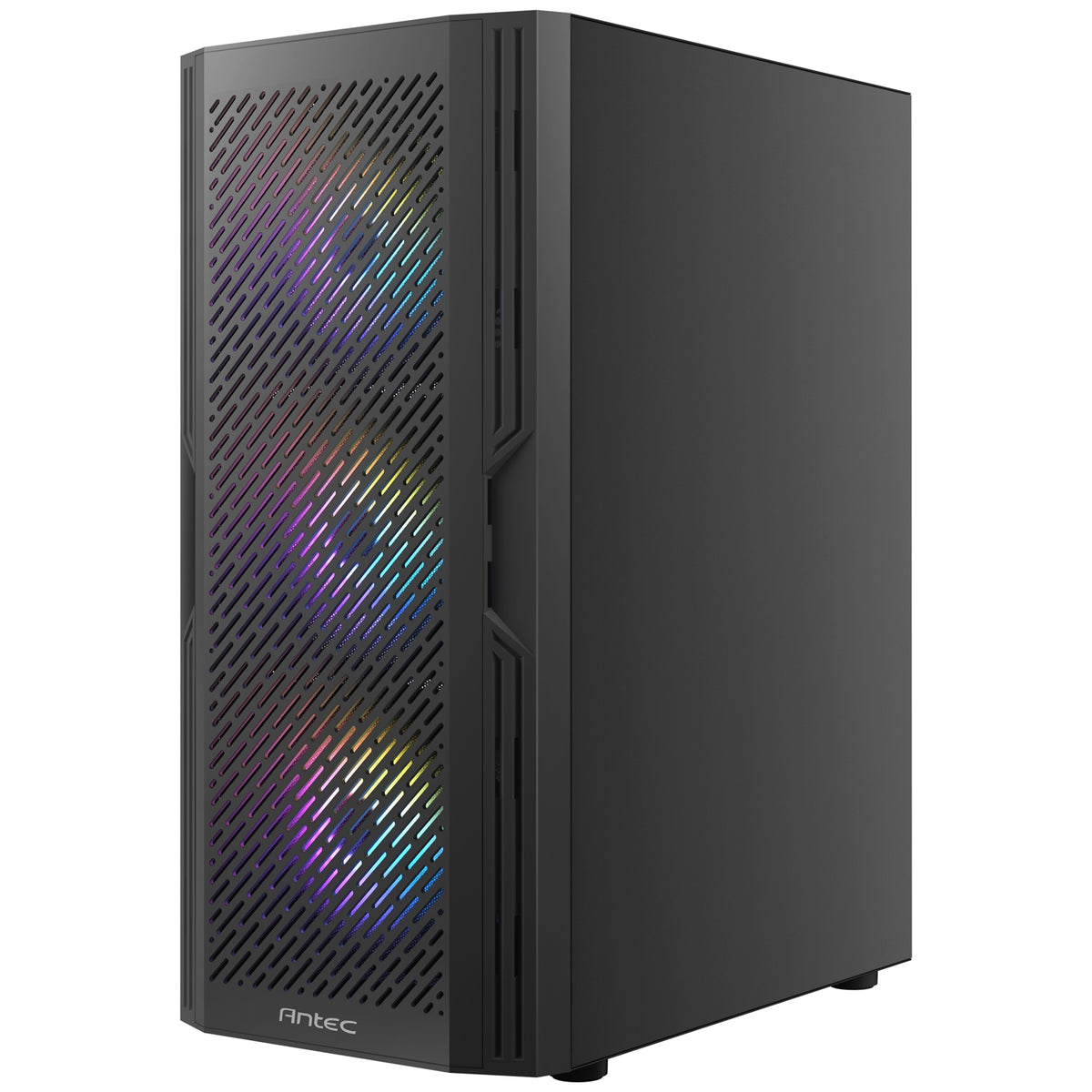

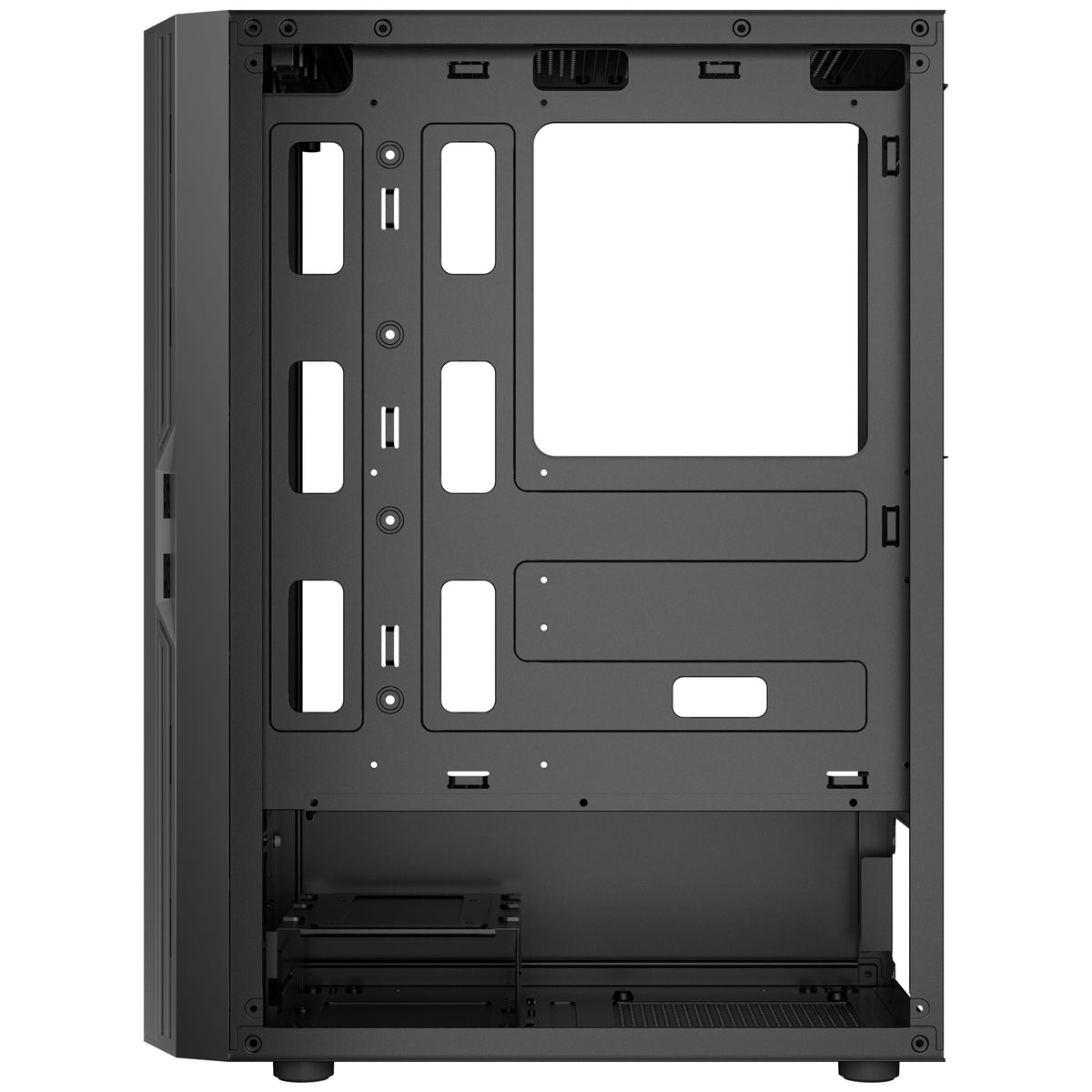

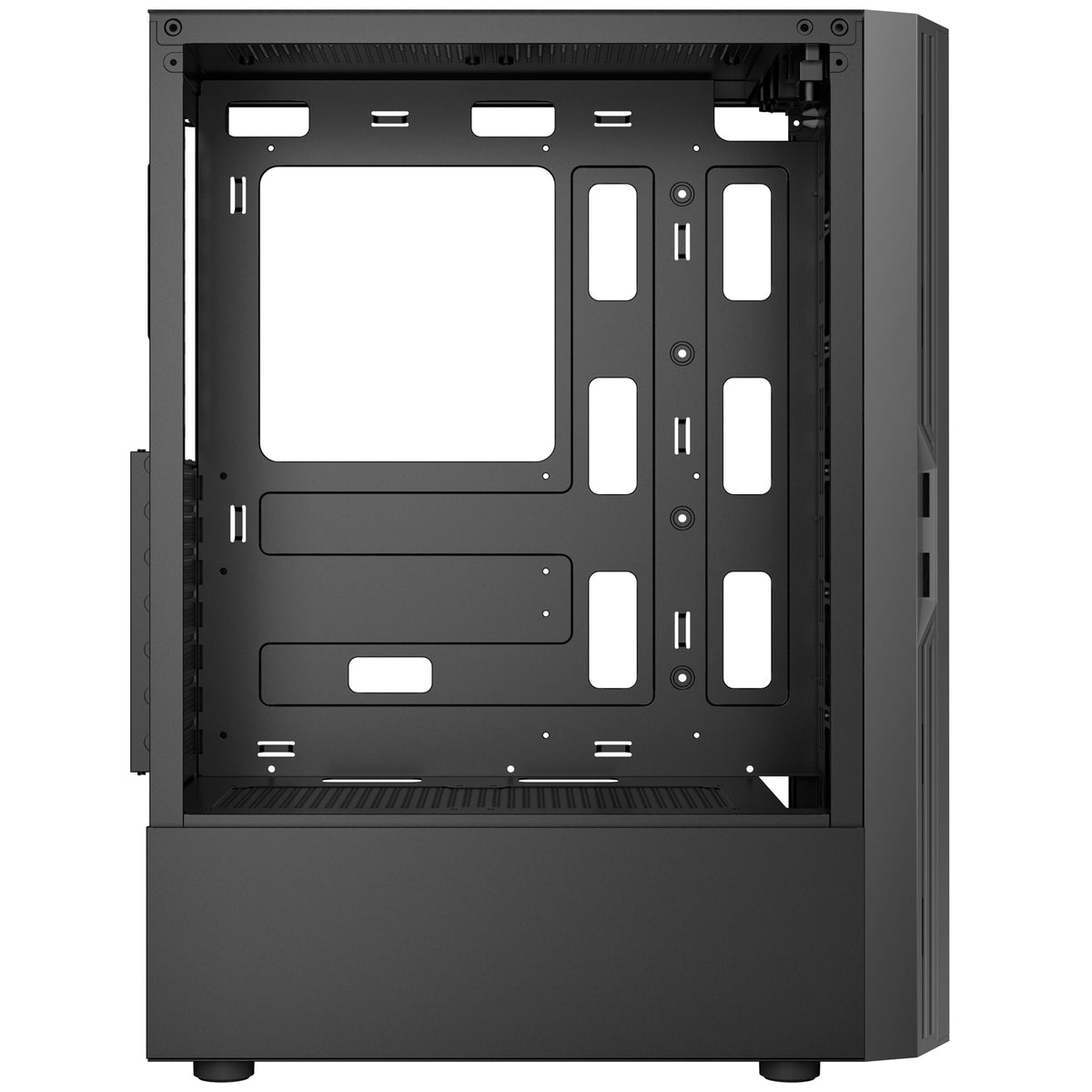

The Antec AX20 is a mid-tower PC case for builders putting together a gaming or general purpose desktop with ATX, Micro-ATX or Mini-ITX components. Its mesh airflow design and three included front fans make it a practical choice for a build where ventilation matters.
Mid-Tower Gaming Case
Specification
| Specification | Detail |
|---|---|
| Unique Design & Powerful Heat Dissipation | AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options. |
| Slanted Bar Air Intake Design | Featuring dense mesh for massive airflow and efficient dust prevention. |

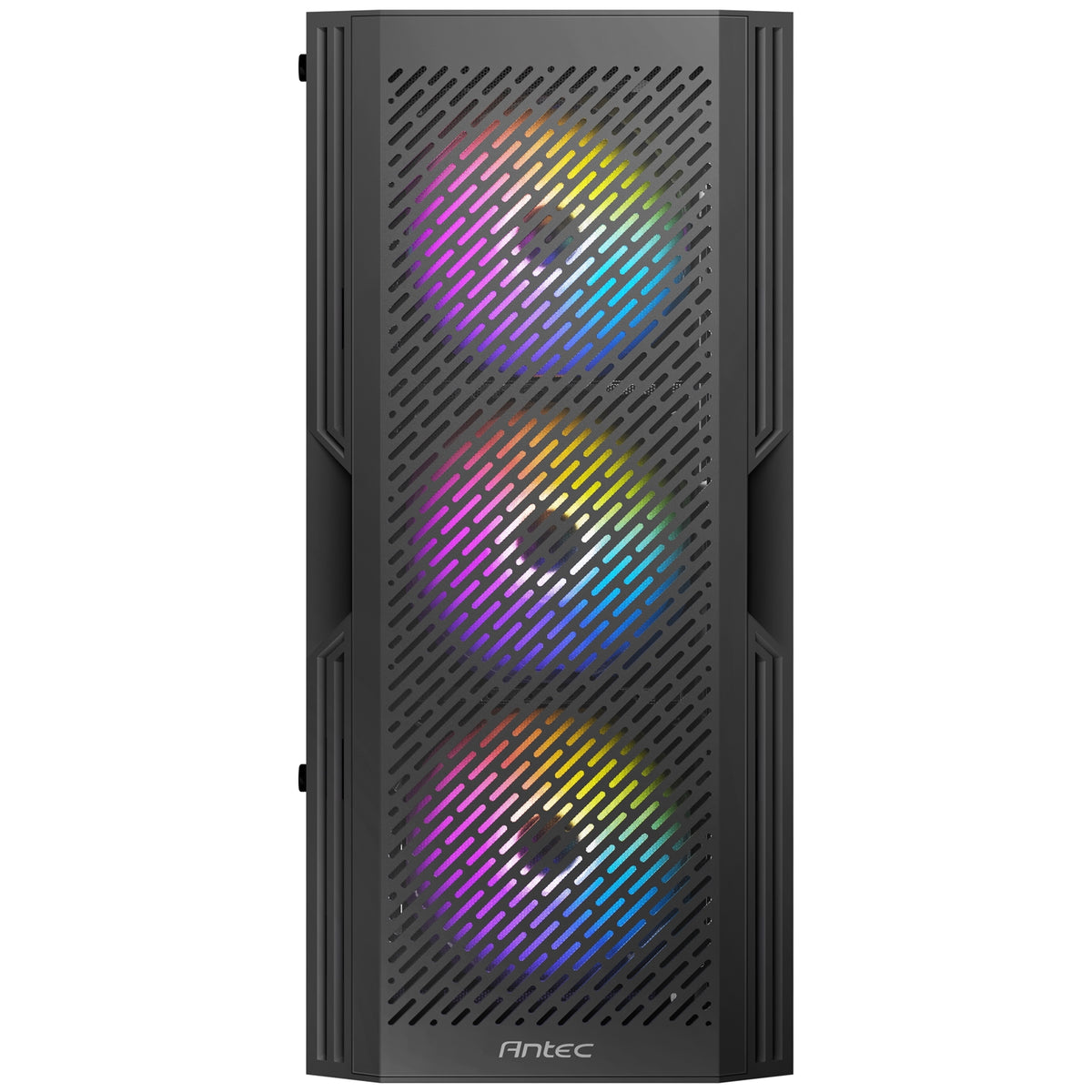

| High-Airflow Front Panel | Massive air intake at the front, top, and bottom. Creating multiple airflow paths. |
| Pre-Installed | 3 x 120mm RGB Fixed Model Fans |
| Form Factor | Mid Tower |
| Materials | Steel Plastic |
| Mainboard Support | ATX Micro ATX Mini-ITX |
| RGB | FRGB so no header |

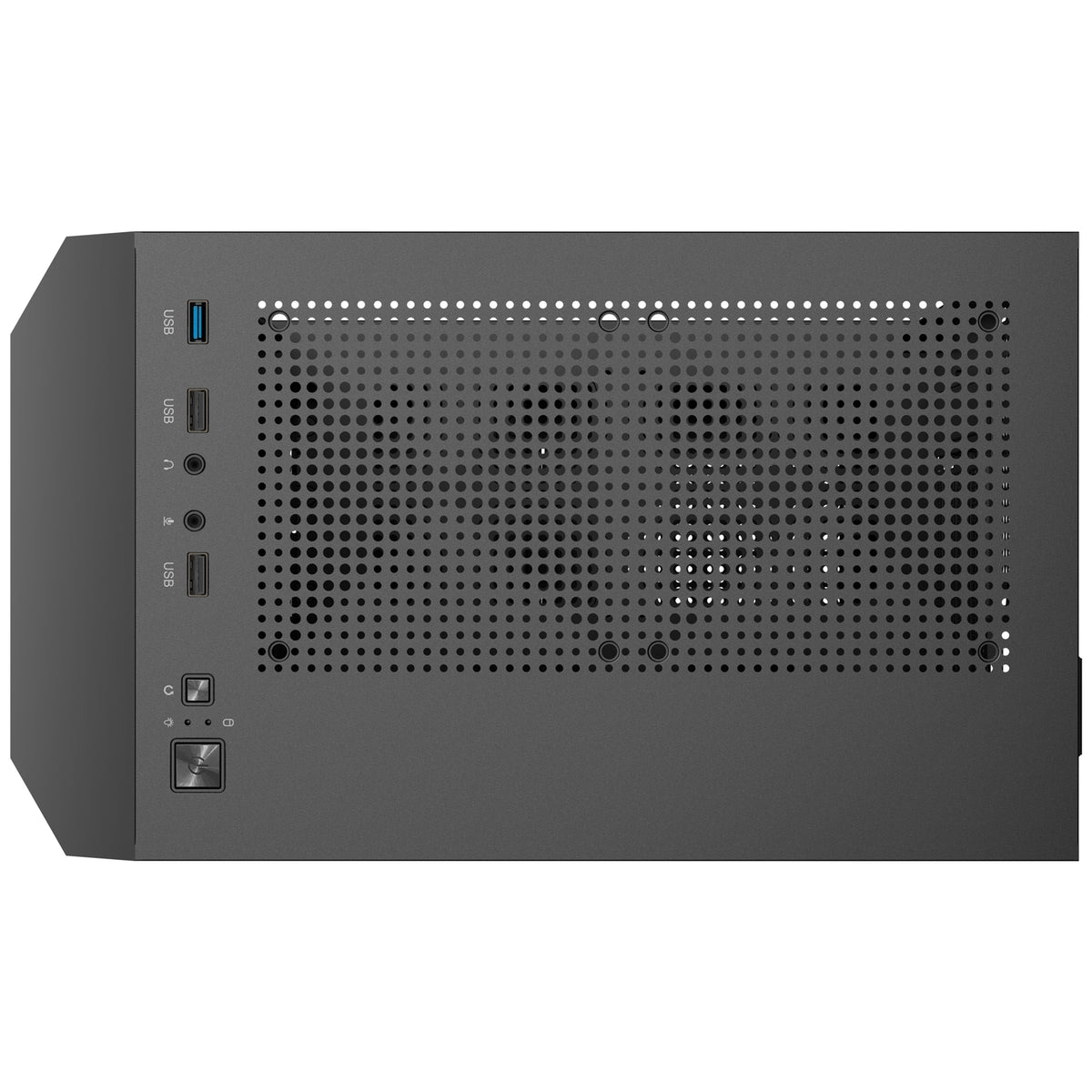

| I/O Panel | Power Reset 2 x USB 2.0 1 x USB 3.0 MIC / HD-AUDIO |

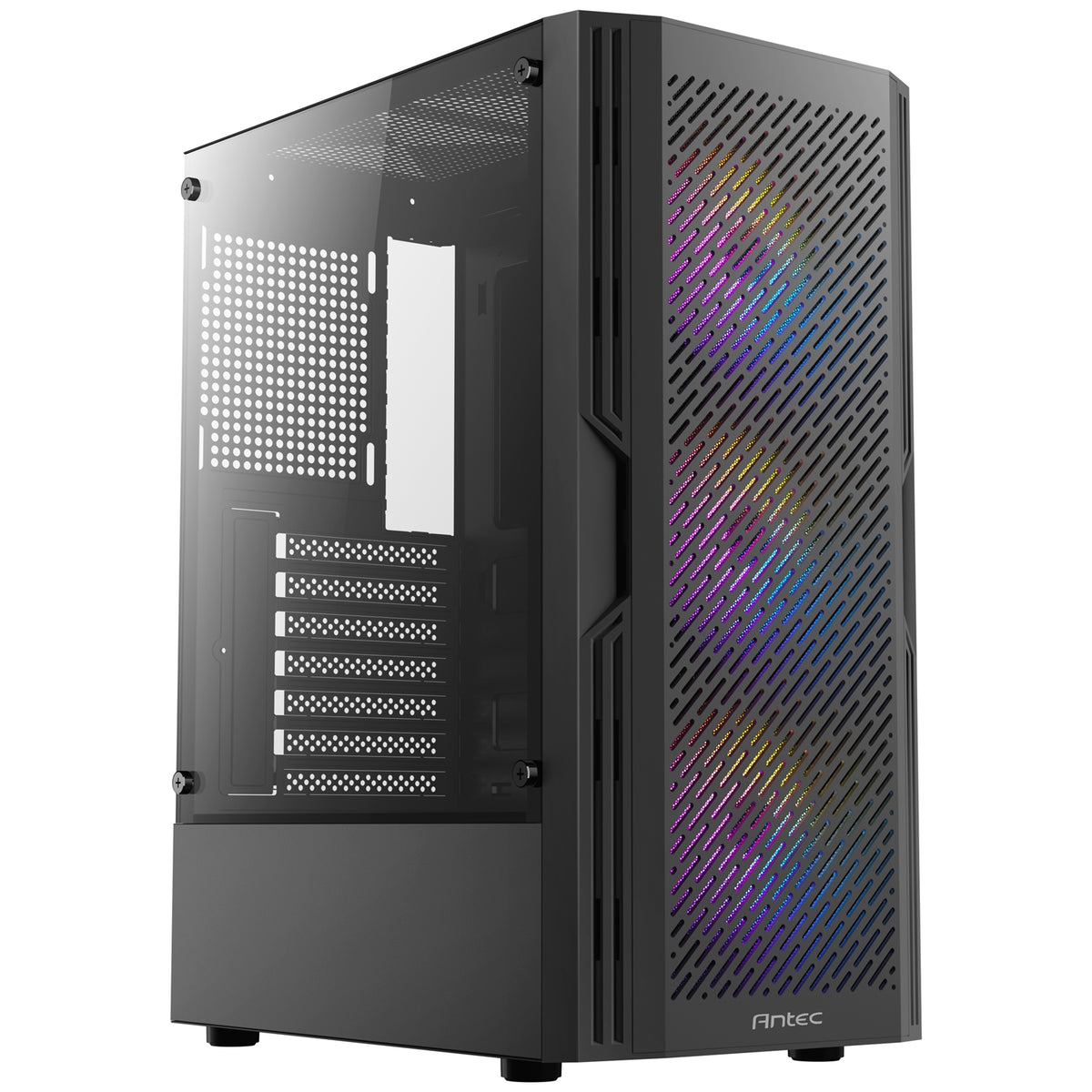

| Side Panel | Tempered glass |
| Drive Bays | 3.5" / 2.5": 2 / 1 2.5": 2 |

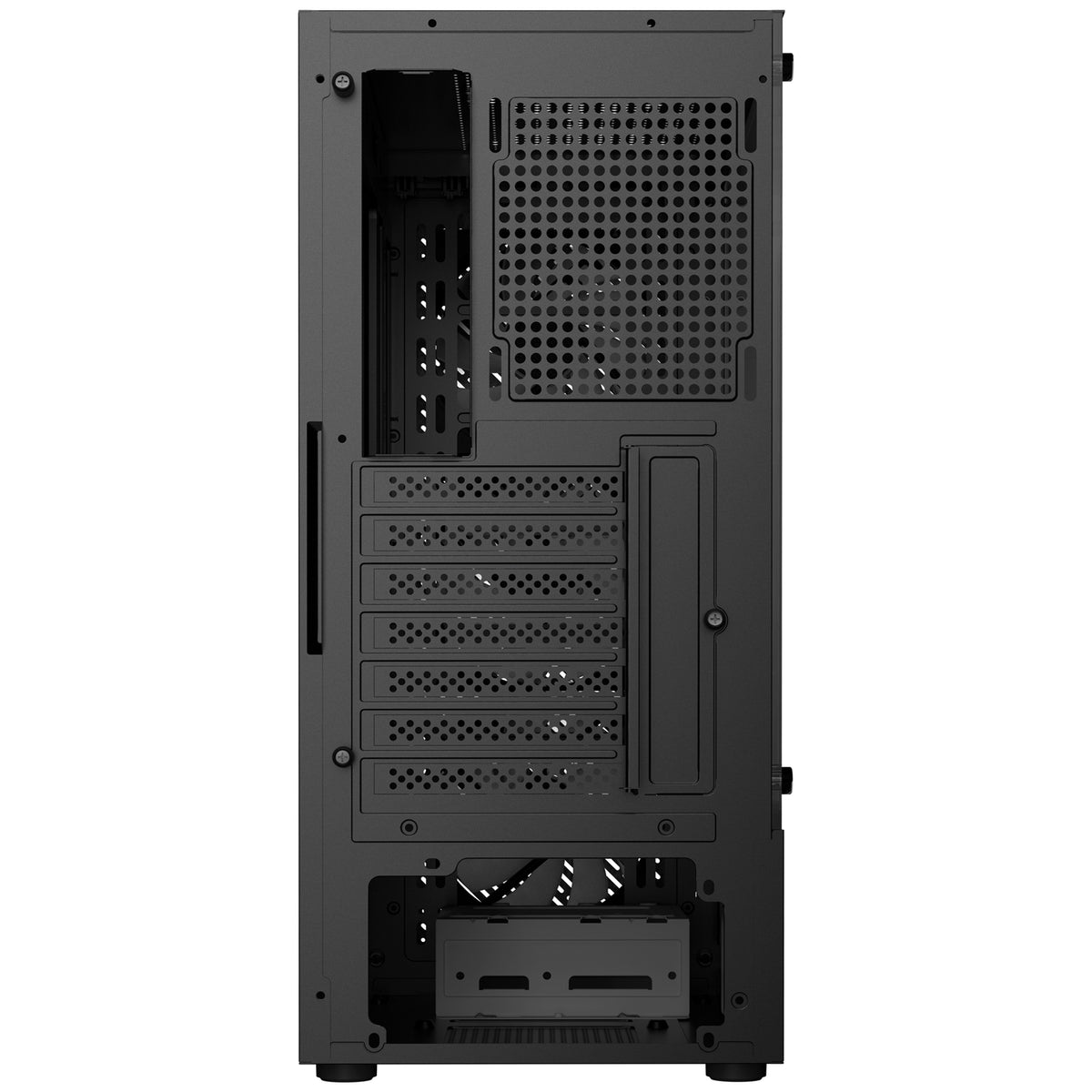

| Expansion | Slots: 7 |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm Power Supply Shroud: 2 x 120mm Rear: 1 x 120mm |
| Included Fans | 3 x 120 RGB fixed model fans in front |
| Radiator Support | Front: 120 / 140 / 240 / 280mm |
| Clearance | Max GPU Length: = 270mm Max CPU Cooler Height: = 155mm Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD) |
| Dust Filter | Front |
| Weight | Net: 4 Kgs Gross: 4.71 Kgs |
| Dimensions ( D x W x H ) | 358 x 207 x 451mm |
-
