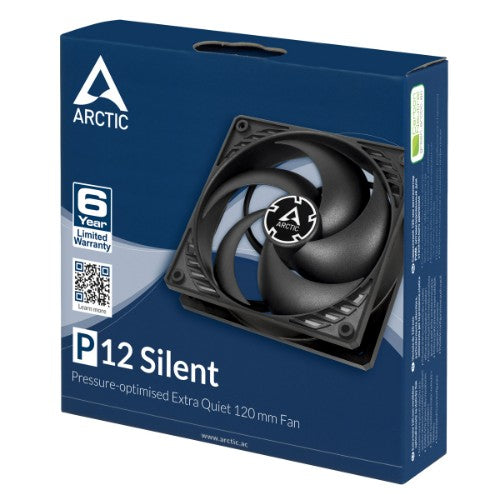

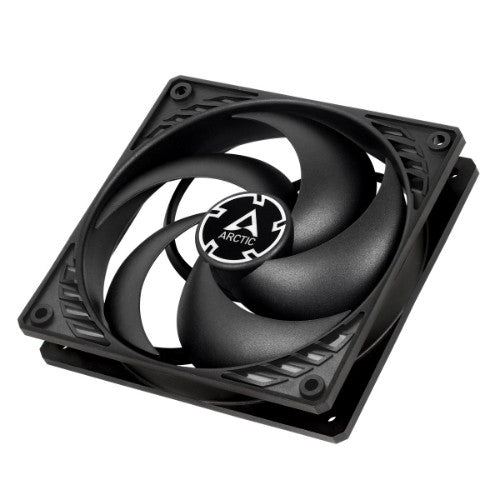

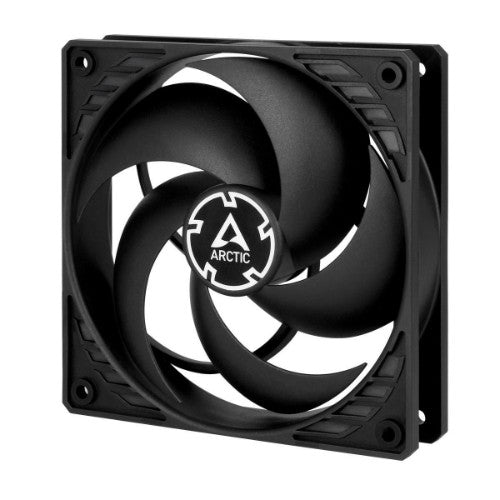

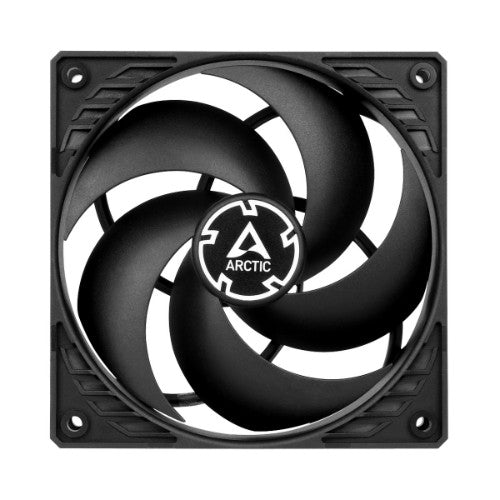

ARCTIC P12 Silent - Pressure-optimised Extra Quiet 120 mm Fan

120 mm, 1050 RPM, 54.1 CFM, 40.95 m3/h, 12 V DC, 3-pin, 139 g

Key Features

• Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• Push- or pull-configuration possible
• Virtually silent motor, developed in Germany

Reasons To Buy

Optimised for Static Pressure

During the development of the new P12 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Silent is particularly suitable for use on heatsinks and radiators.

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans.
In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Virtually Silent Motor

At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise.

Description

The P12 Silent fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P12 Silent is especially effective when used on heatsinks and with higher air resistance.
The motor of the fan was developed in Germany and is virtually silent.

Specifications

Performance
Suitable location	Computer case
Fan connector	3-pin
Rotational speed (max)	1050 RPM
Noise level	0.08 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	24.1 cfm
Airflow	40.95 m³/h
Number of fans	1 fan(s)
Number of fan blades	5
Design
Fan connector	3-pin
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	24.1 cfm
Airflow	40.95 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	3-pin
Ports & interfaces
Fan connector	3-pin
Power
Starting voltage	4.8 V
Voltage	12 V
Rated current	0.09 A
Colour
Product colour	Black
Weight & dimensions
Package depth	123 mm
Package width	123 mm
Package height	27 mm
Width	120 mm
Package weight	170 g
Depth	120 mm
Height	25 mm
Weight	139 g
Cable length	0.4 m
Packaging data
Package depth	123 mm
Package width	123 mm
Package height	27 mm
Package weight	170 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
