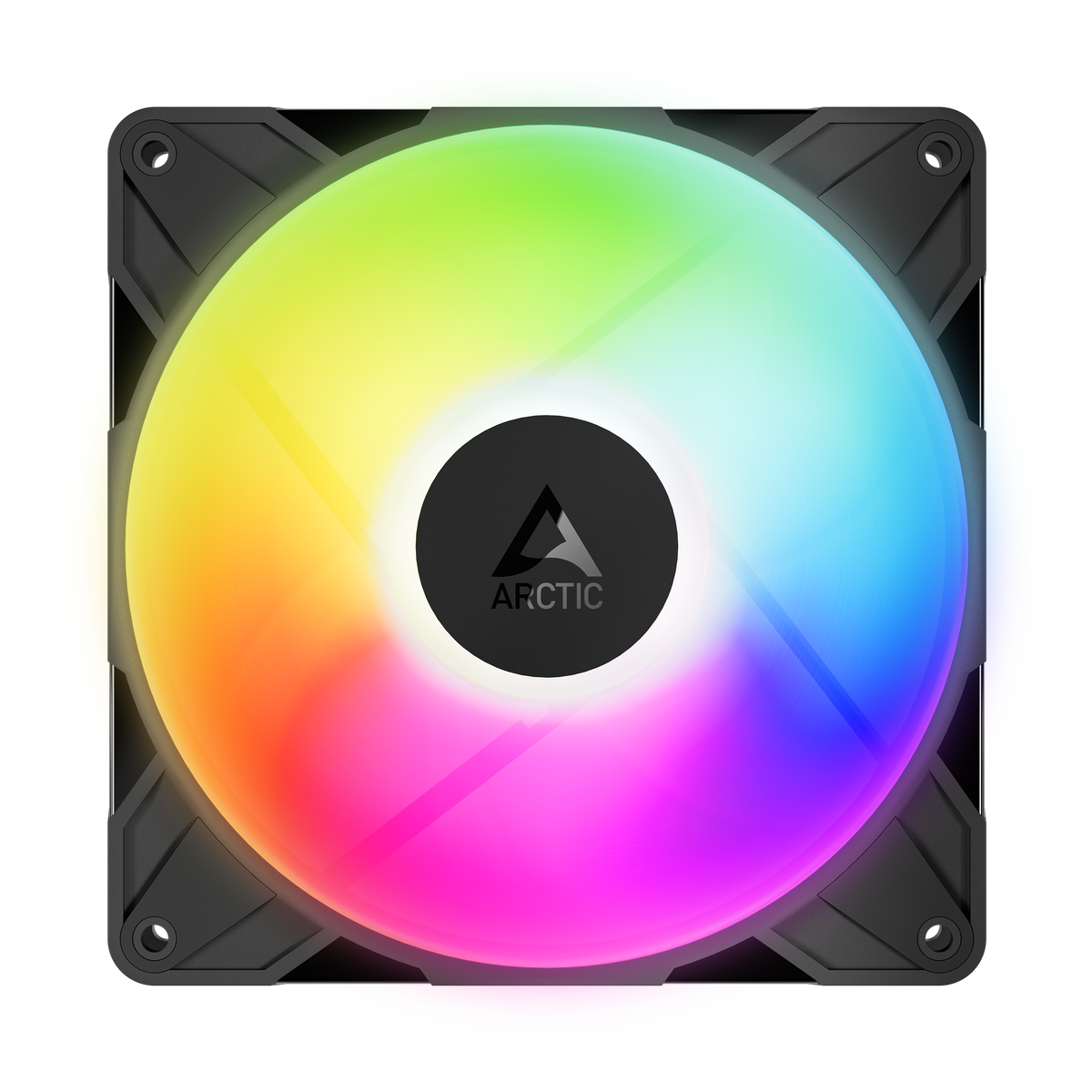

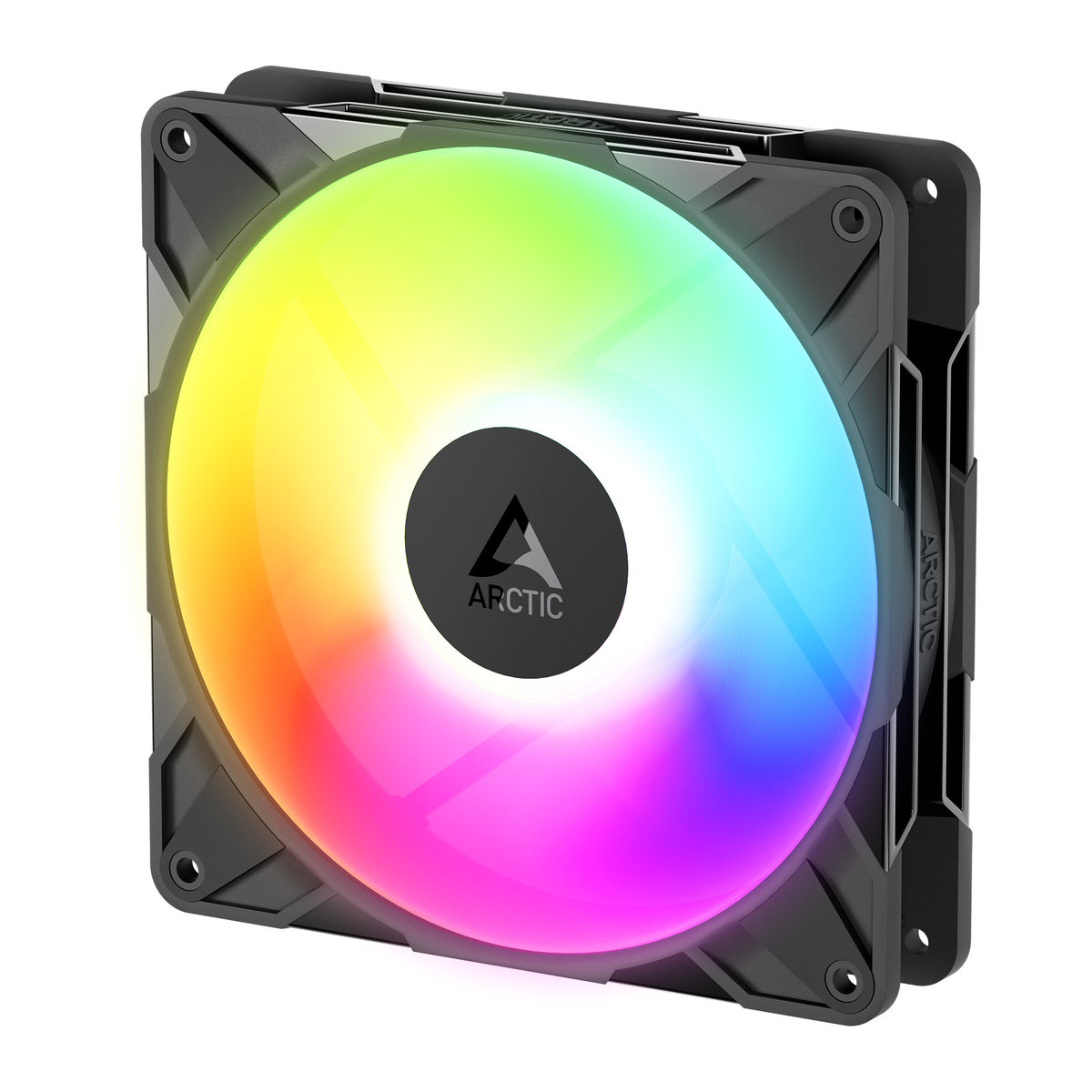

The ARCTIC P14 Pro Reverse A-RGB is a 140 mm case fan for PC builders who want to add intake airflow while keeping the fan’s appearance visible from the inside of a case. Its reverse airflow design suits builds where a conventional fan would compromise the look of the system.

PWM control adjusts the fan speed from 400 to 2650 rpm, with a 0 rpm mode below 5% PWM. The fan combines a fluid dynamic bearing with an airflow design intended to reduce resistance, turbulence and aerodynamic noise. A-RGB lighting adds a lighting option for compatible builds, while the included cable splitter supports daisy-chaining and synchronised PWM control across multiple fans.

Key features

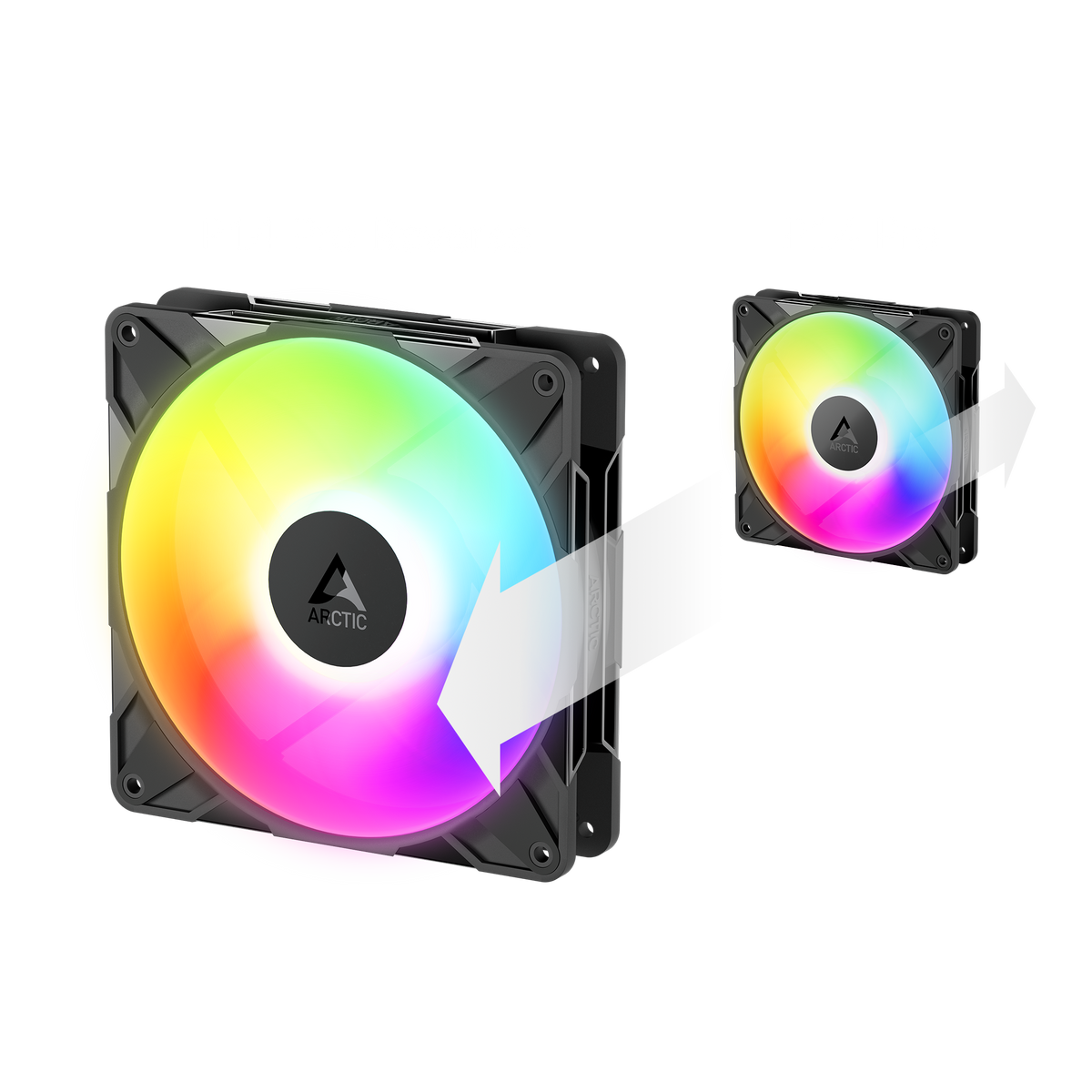

• Reverse airflow design draws air in from the back side of the fan.
• PWM speed control supports adjustment through a compatible motherboard header.
• Fan speed ranges from 400 to 2650 rpm, with 0 rpm below 5% PWM.
• Fluid dynamic bearing and extended shaft help reduce vibration and operating noise.
• Airflow is rated at 98 cfm and static pressure at 5.1 mmH₂O.
• 12 A-RGB LEDs provide digital lighting through a 3-pin A-RGB connection.
• Daisy-chain connections allow multiple fans to share PWM and A-RGB connections.

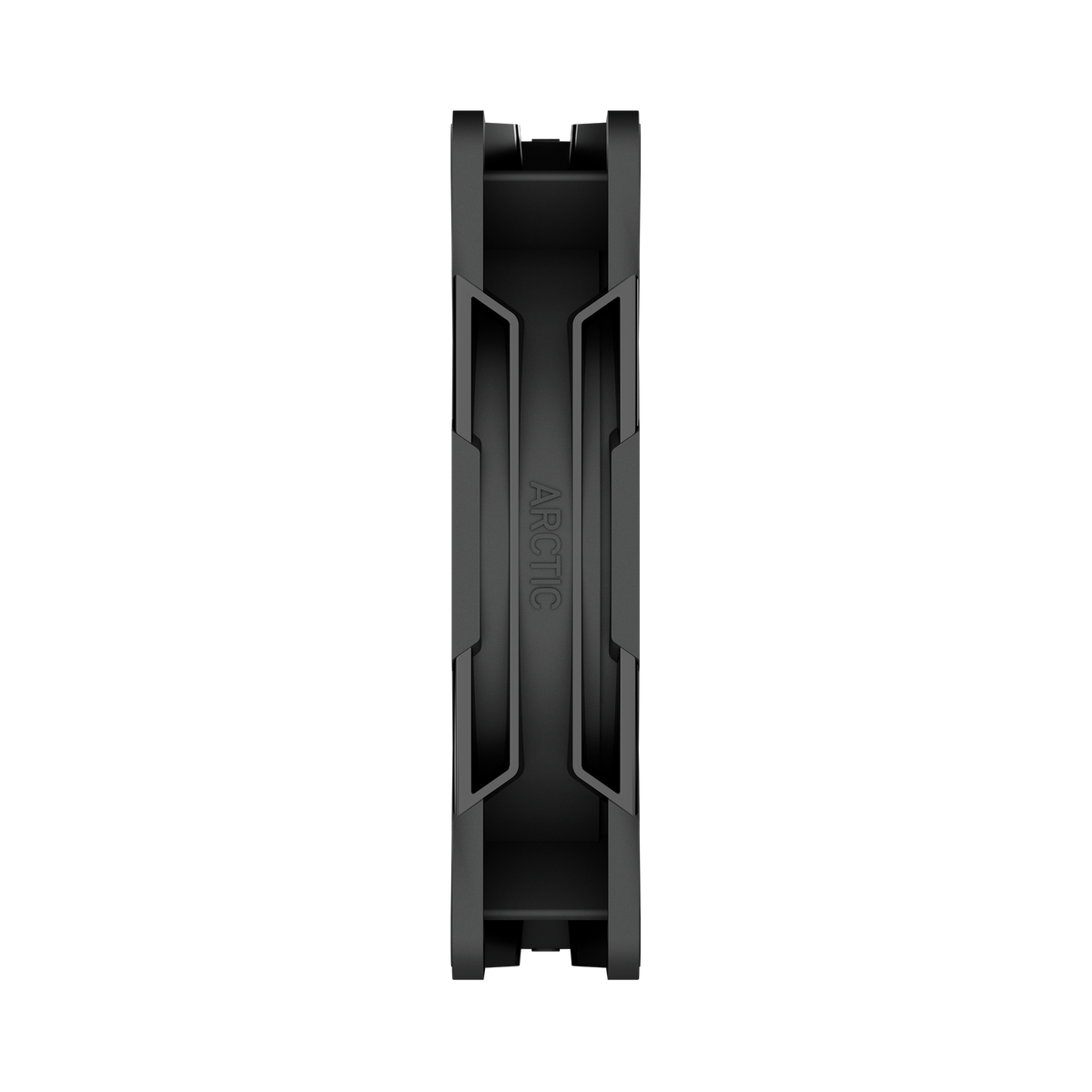

• Designed for 140 mm mounting positions and measures 30 mm thick.

Compatibility

Connect the fan’s 4-pin plug to a suitable motherboard fan header for PWM control, and connect the 3-pin A-RGB lead to a compatible 5 V A-RGB header. Check your case has room for a 140 mm fan with 30 mm thickness. A 3-pin fan socket can accept a 4-pin plug, but PWM control will not be available. Good to know: the motherboard header must supply enough power for the number of fans connected; ARCTIC advises checking the motherboard specifications and using a Case Fan Hub for connections of up to 10 fans.

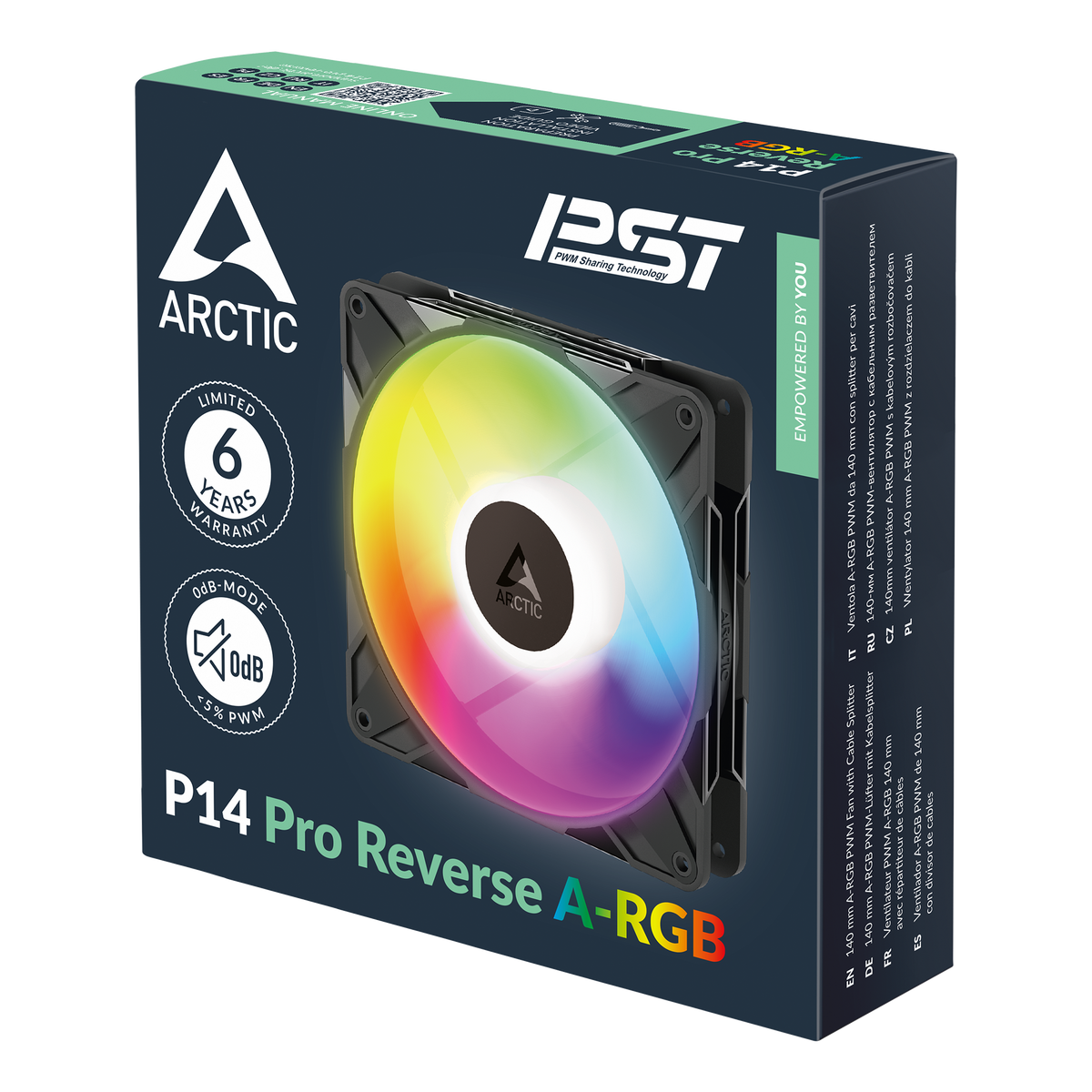

In the box

• ARCTIC P14 Pro Reverse A-RGB
• Mounting Screws x4

Specifications

For a system that needs carefully directed intake airflow, PWM speed adjustment and synchronised A-RGB lighting, the P14 Pro Reverse A-RGB brings those features together in a single 140 mm fan.
