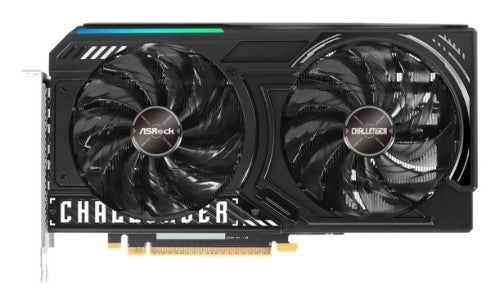

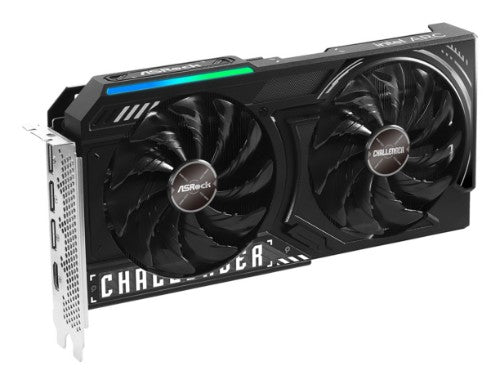

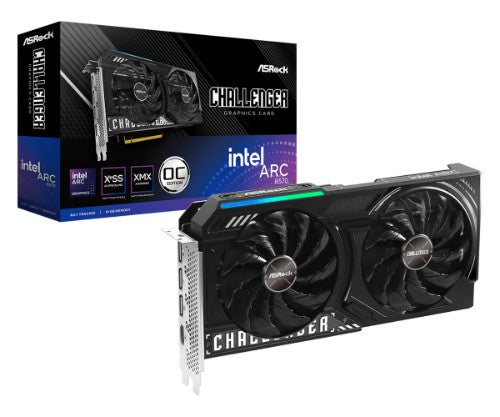

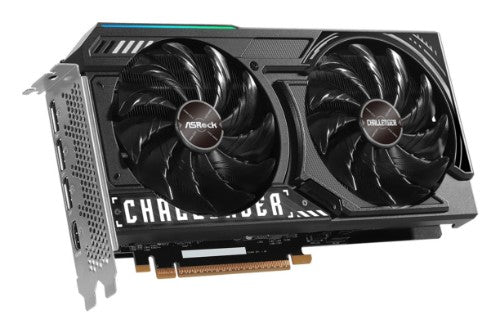

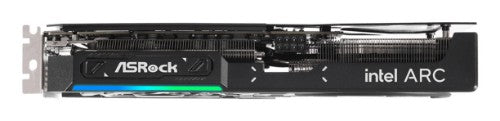

Asrock Challenger 90-GA5KZZ-00UANF graphics card Intel Arc B570 10 GB GDDR6

Intel Arc B570, 10 GB, 7680 x 4320, 160-bit GDDR6, DirectX 12 Ultimate, 1x 8-pin, 3x DisplayPort, 1x HDMI, 2600 MHz, 600 W

Key Features

• Dual Fan Design
• Stylish Metal Backplate
• Striped Axial Fan
• LED Indicator
• 0dB Silent Cooling
• Super Alloy Graphics Card

Description

Dual Fan Design
Optimized Cooling Efficiency.

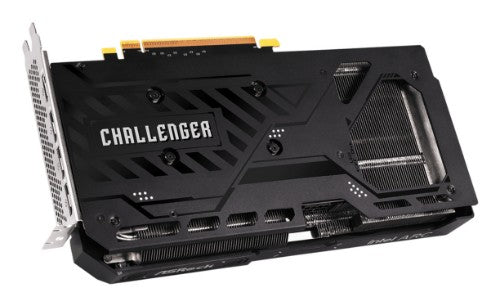

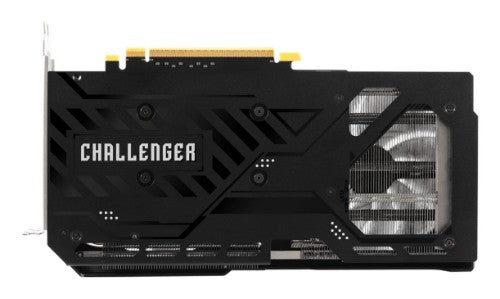

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

High-quality Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Game ready, feature packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.

Game-changing, modern tech
Increase performance, responsiveness, and more with Intel® Arc™ gaming technologies.

Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel® Xe Super Sampling (XeSS) technology.

Make your games play smoother and more responsive with Intel® XeSS Frame Generation and Intel® Xe Low Latency technologies from Intel.

Up-to-date, software releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.

A versatile creator toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode.Create content with support for the most popular media formats including cutting-edge AV1.

The powerful Xe media engine enables you to create and edit content quickly in high-res.

Built to explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private1 app, brings AI capabilities together into an easy-to-use experience.2

Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel® Arc™ Graphics called Xe Matrix eXtensions (XMX).

Specifications

Processor
Graphics processor family	Intel
Processor frequency	2600 MHz
Parallel processing technology support	Not supported
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Arc B570
Compute units	18
Memory
Discrete graphics card memory	10 GB
Data transfer rate	19 Gbit/s
Memory bus	160 bit
Graphics card memory type	GDDR6

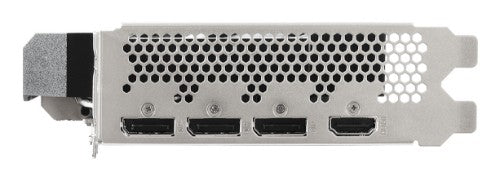

Ports & interfaces
HDMI version	2.1a
HDMI ports quantity	1
DisplayPort version	2.1
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 4.0
Video
DirectX version	12 Ultimate
Shader model version	6.7
OpenGL version	4.6
HDMI version	2.1a
HDCP	Yes
Dual Link DVI	No
Performance
DirectX version	12 Ultimate
Shader model version	6.7
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
Intel® Xe Matrix Extensions (Intel® XMX) Engines	144
Design
Cooling type	Active
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	600 W
Technical details
Cooling type	Active
TV tuner integrated	No
System requirements
Minimum system power supply	600 W
Weight & dimensions
Weight	720 g
Height	41 mm
Depth	132 mm
Length	249 mm
Packaging content
Quick installation guide	Yes
