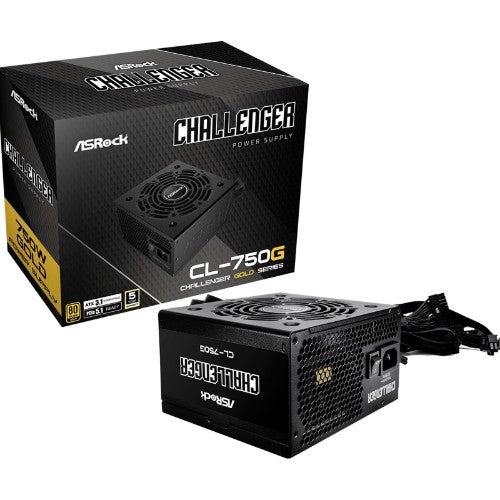

Asrock CL-750G 750W ATX Power Supply Unit, 80 PLUS GOLD Certified, 120mm Golf-Blade Fan, High Efficiency PSU

ASRock CL-750G 750W ATX Power Supply Unit, 80 PLUS GOLD Certified, 120mm Golf-Blade Fan, High Efficiency PSU

Description

ASRock Challenger CL-750G Power Supply Unit

Features
80 PLUS GOLD Certified
ATX3.1 & PCIe5.1 Ready
Native 12V-2x6 Connector Dual Color Design
120mm Golf-blade Fan
Auto iCool Intelligent Fan Control
Built-in 5V BOOST function
Reliable 5-Year Warranty

Native PCIe 12V-2x6 Cable Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

80 PLUS CERTIFIED
The Challenger series is crafted for value-conscious users, offering 80 PLUS Gold models in 850W, 750W, and 650W options, as well as 80 PLUS Bronze models in 750W, 650W, and 550W.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 5 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

80 Plus Efficiency
GOLD

ATX 12V Version
ATX 3.1

AC Input
100-240V~, 50-60Hz, 10-5A

Continuous 12V output
62.5A

Warranty (Years)
5

Dimensions(L x W x H)
140mm x 150mm x 86mm

Fan
120mm Golf-Blade Fan

iCOOL MODE
Yes (Auto)

Protections
OCP, SCP, OVP, UVP, OTP, OPP

Capacitors
All Taiwanese

5V BOOST
Yes (Built-in)

PCIe 5.1 Cable TempGuard
No

Total Power Excursion
200%

MTBF (Hours)@25C
100,000

Cable Type
24pin: Sleeved
Others: Flat

Motherboard cable (24pin)
1

EPS 12V CPU connectors (4+4pin)
2

PCIe5.1 connectors(12+4pin) Dual Color
1

PCIe connectors (6+2pin)
2

4-pin Peripheral connectors
2

SATA 5-pin connectors
4
