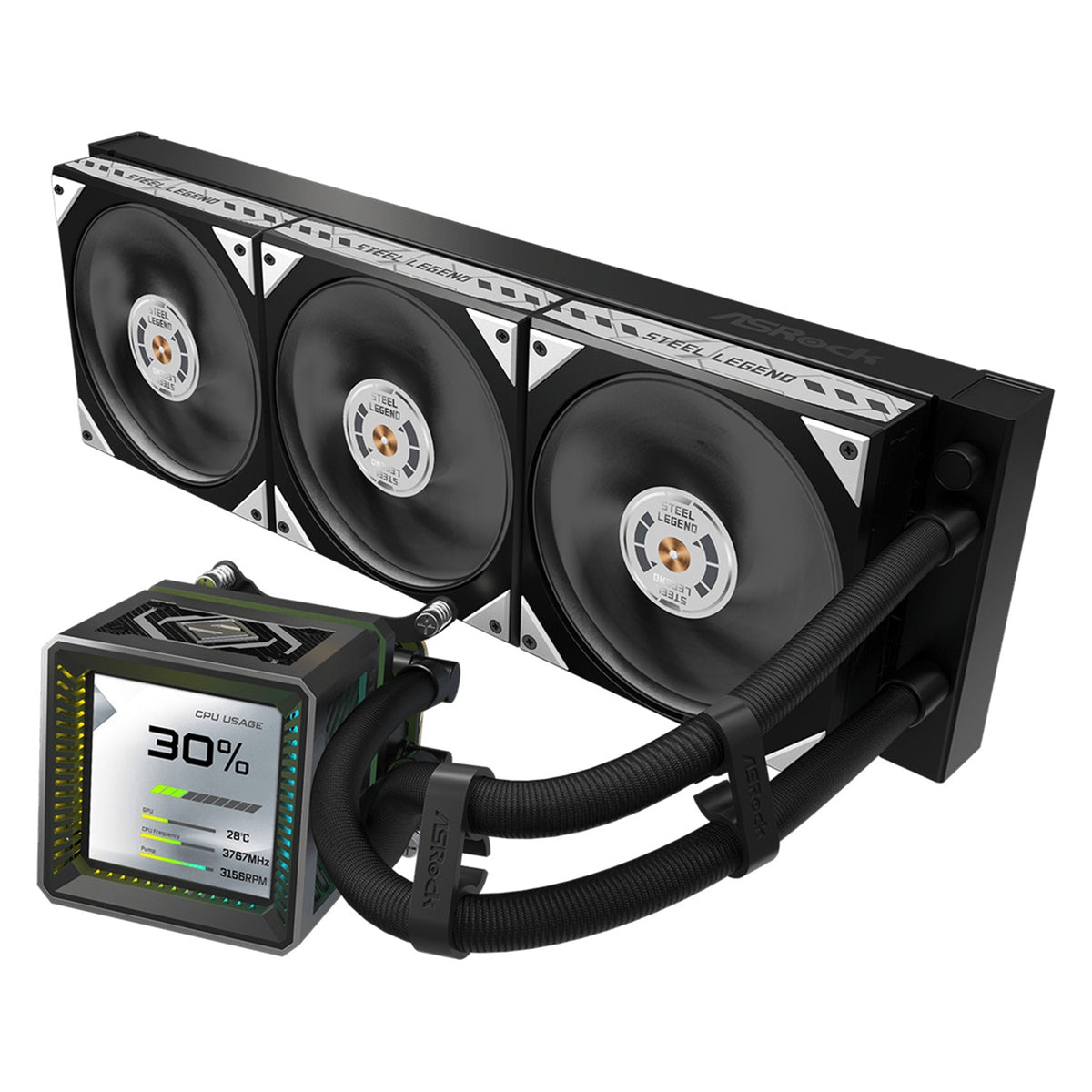

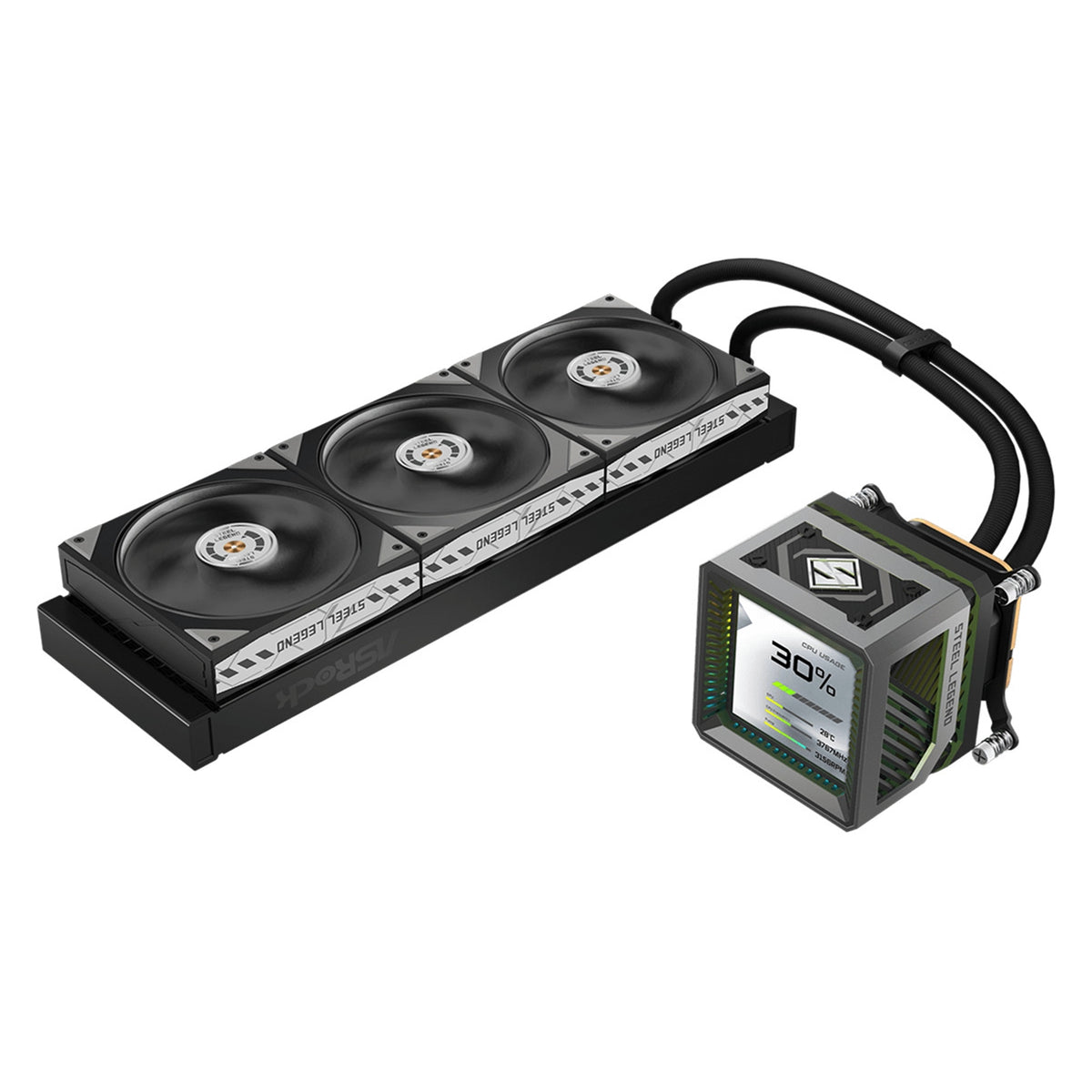

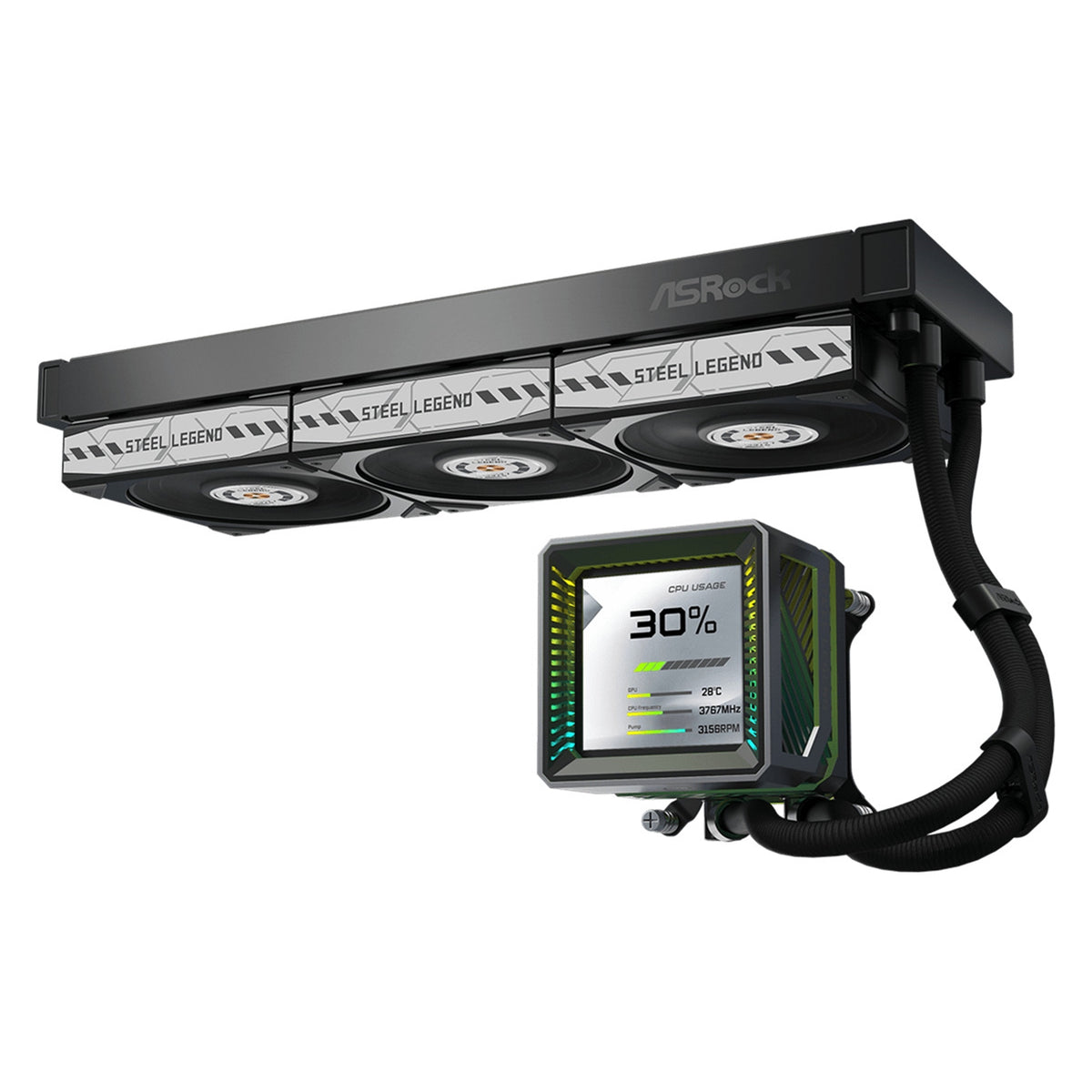

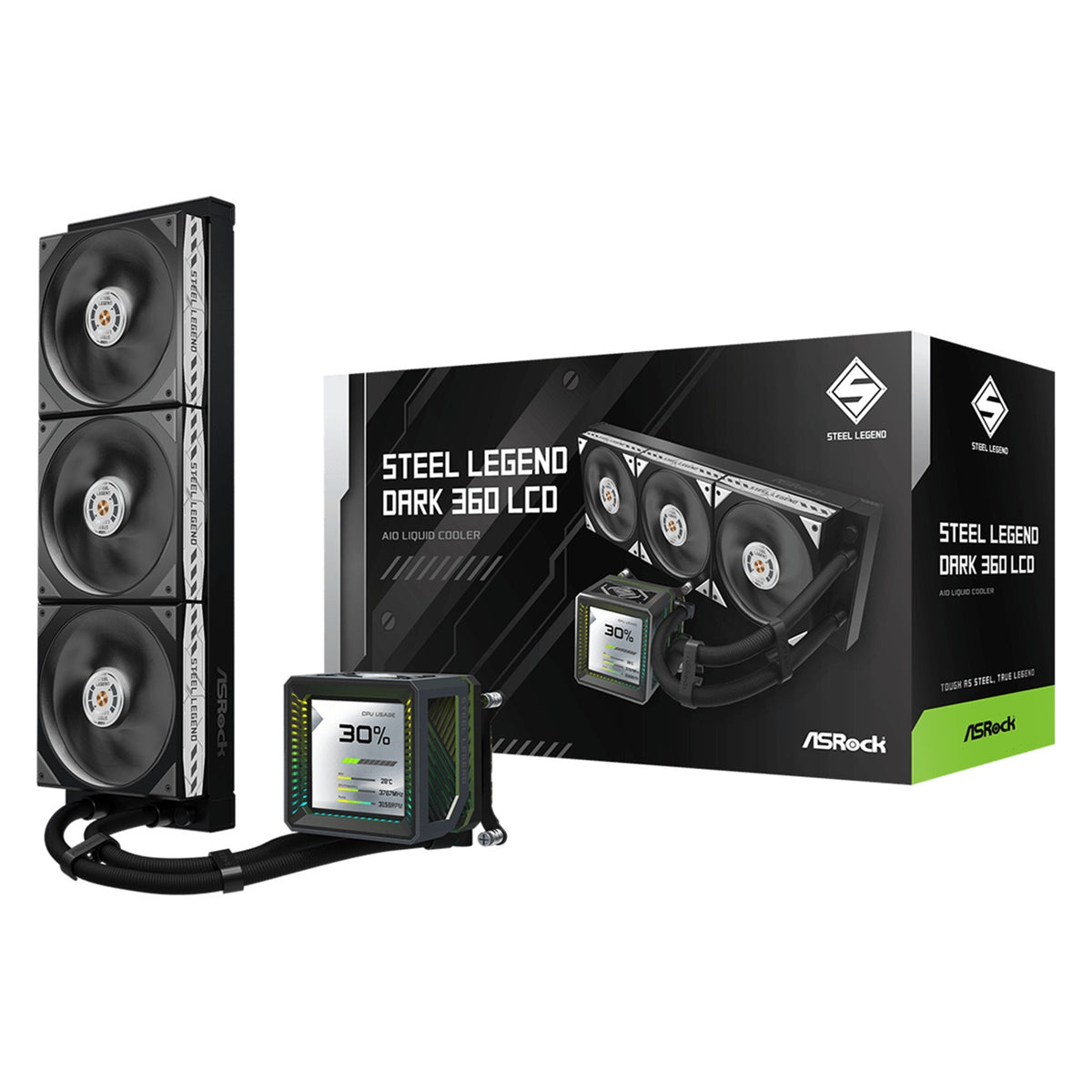

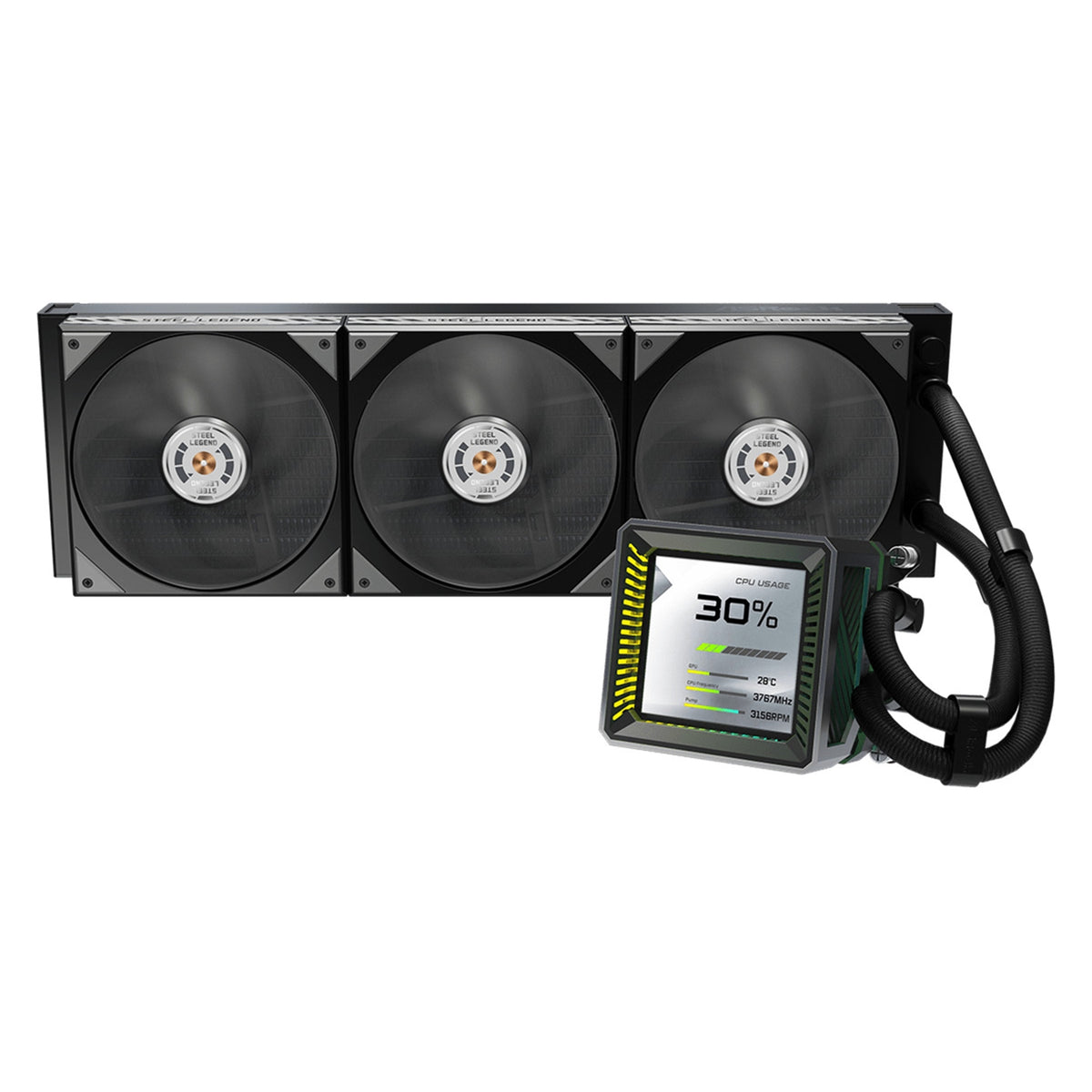

The ASRock Steel Legend Dark 360 LCD is an all-in-one liquid CPU cooler for desktop builders using compatible Intel or AMD platforms. Its 360mm radiator and three radiator fans suit gaming and performance systems that need substantial cooling capacity, while the integrated screen gives enthusiasts a place to show system information or custom visuals.
Specification
| Specification | Detail |
|---|---|
| Steel Legend 360 LCD | Steel Legend stands for uncompromising strength and enduring reliability. With industrial-grade dual-ball bearings and aerospace-grade LCP fan blades, it delivers steadfast cooling performance and long-lasting durability — a true legend forged in steel. |

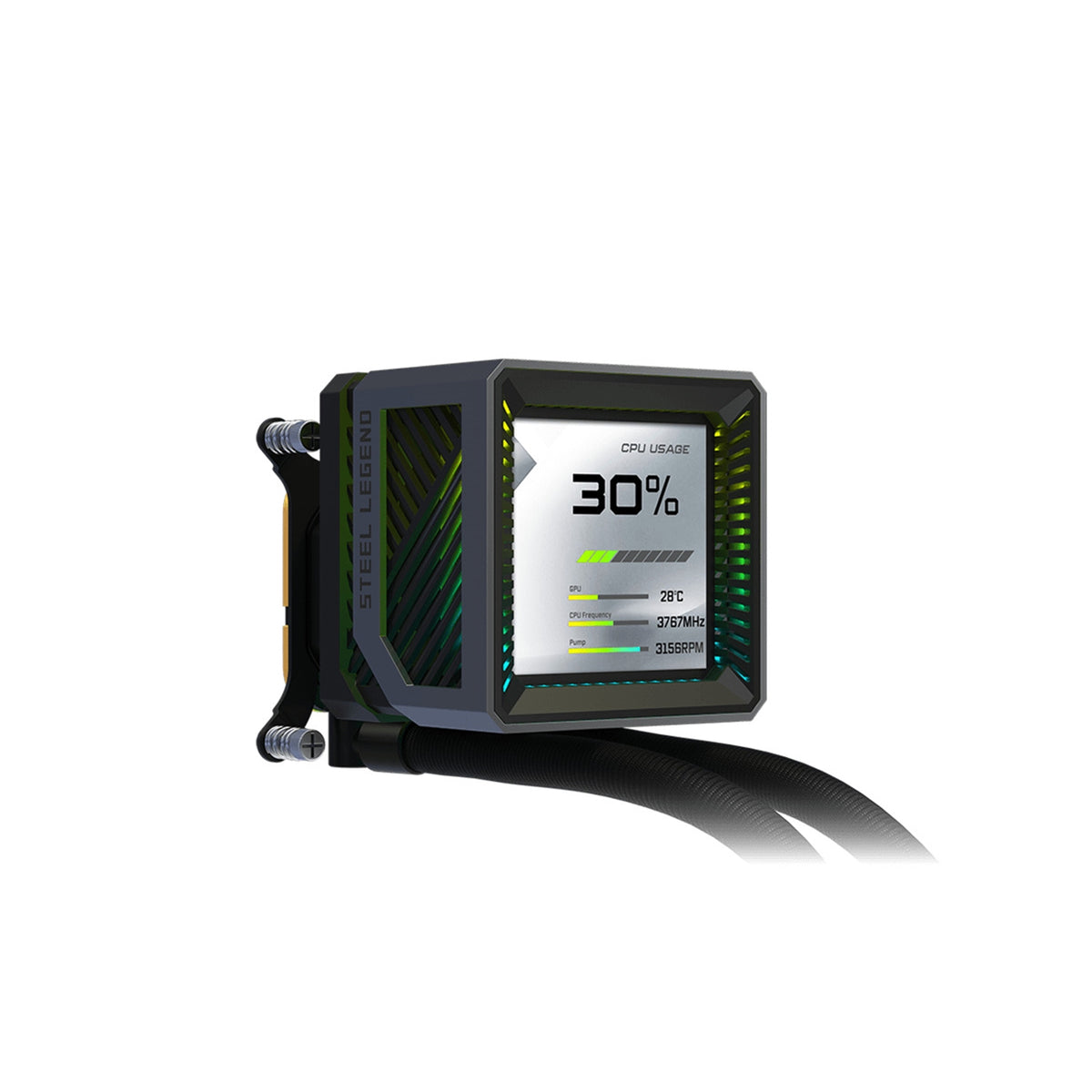

| 3.4" Full-Color LCD Display | A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail. |
| Polychrome DISPLAY | Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support. |
| Customizable Animations | Explore built-in animations or import your own for a fully customized display experience. |
| Next-Gen Cooling Pump | Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability. Continuous Magnetic Field: - Continuous rotating magnetic field for higher energy conversion efficiency. Low Torque Ripple: - Low torque ripple ensures smooth and stable operation. Balanced Current Load: - Balanced current distribution minimizes copper loss. Reduced Core Loss: - Reduced core loss improves overall operating efficiency. Lower Thermal Output: - Lower thermal output maintains efficiency during prolonged operation. Simplified Motor Architecture: - No starting capacitors or coils required, improving reliability. |
| Dual-Side Inlet Cooling Path | The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency. |
| Targeted Airflow Technology | Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency. |
| Striped Ring Fan | The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency. |
| LCP Blade Structure | Crafted from aerospace-grade LCP (Liquid Crystal Polymer), the blades maintain flawless geometry under extreme RPM and thermal stress — ensuring enduring precision, durability, and performance stability. |
| Copper Alloy Bearing Hub | Crafted for superior concentricity, ensuring stable and effortless rotation under extreme conditions. |
| Dual-ball Bearing | The dual-bearing mechanism delivers consistent, long-lasting performance even under continuous high-temperature operation. |
| 0dB Silent Cooling Technology | Fan stops completely under low load for absolute silence and extended lifespan. |
| POLYCHROME RGB | Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control. |
| SignalRGB | SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software. |
| Clean Build Aesthetic | Cables remain hidden between fans, with only a single cable required to connect to the motherboard for a cleaner build. |
| ASRock Therm-X1 Thermal Grease | High thermal conductivity enables efficient heat transfer, enhancing system stability and extending CPU lifespan. |
| Model Number | 90-ASLA36-BAAGA5 |
| Compatibility | AMD:AM5, AM4 Intel:LGA1851, 1700 |
| Water Block | Dimension:(L)100.4 x (W)86 x (H)107.6 mm Material (Cold Plate):Copper LEDs :ARGB |
| Radiator | Dimension:(L)397 x (W)120 x (H)27 mm Material:Aluminum |
| Pump | Speed:1200 - 3100 ± 10% RPM Current/ Voltage:0.38A/ 12V Connector:PWM (4-Pin) |
| VRM Fan | Dimension:(L)70 x (W)70 x (H)25 mm Speed:(Max.) 3000 ± 10% RPM Connector:PWM (4-Pin) Current/ Voltage:0.12A/ 12V |

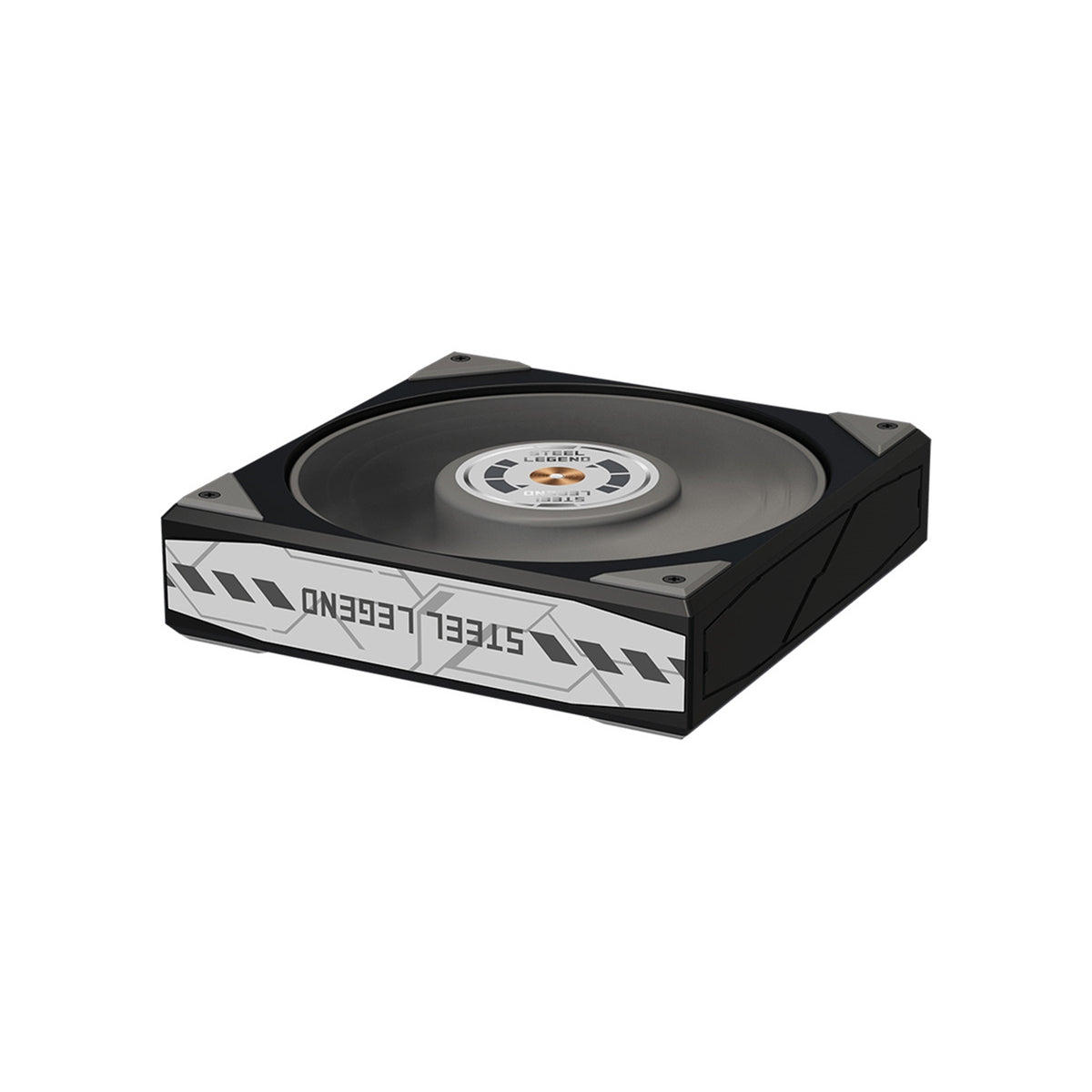

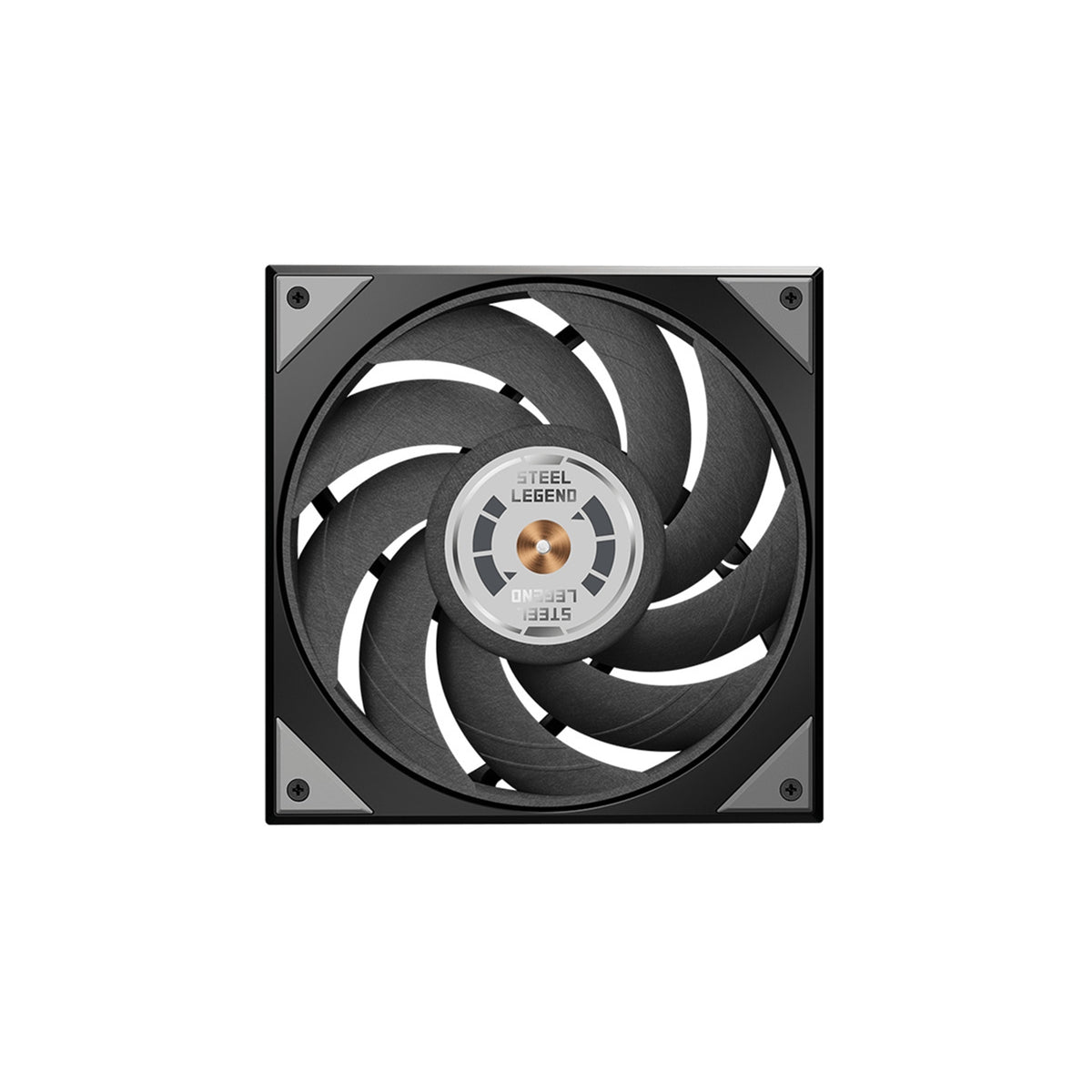

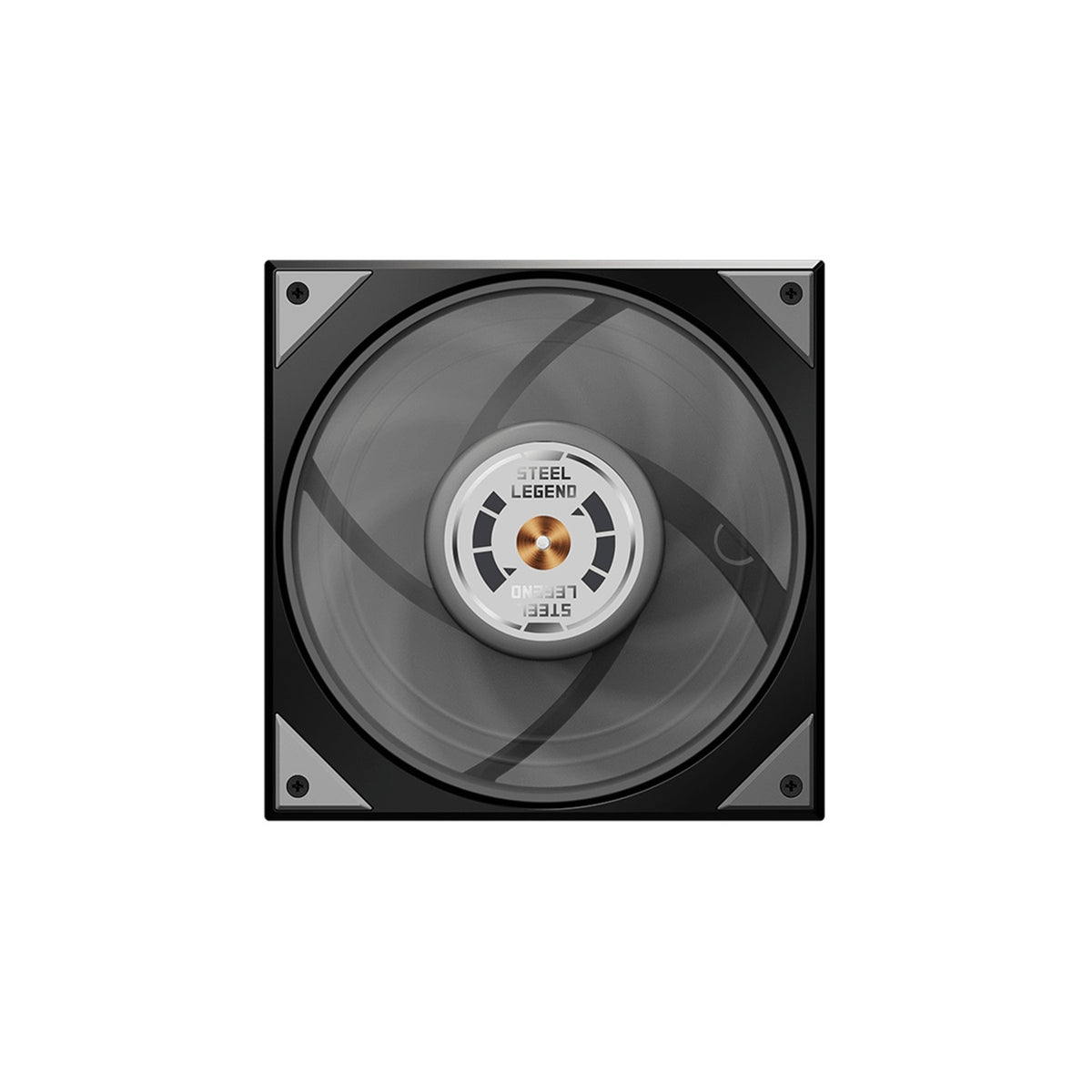

| Radiator Fan | Dimension:(L)120 x (W)120 x (H)28 mm Speed:0 - 2500 ± 10% RPM Air Flow:(Max.) 76.7 CFM Air Pressure:(Max.) 4.16 mmH20 Noise:(Max.) 38.3 dB(A) Connector:PWM (4-Pin) Current/ Voltage:0.30A/ 12V Bearing:Dual-ball Bearing LEDs:ARGB Gen1 |

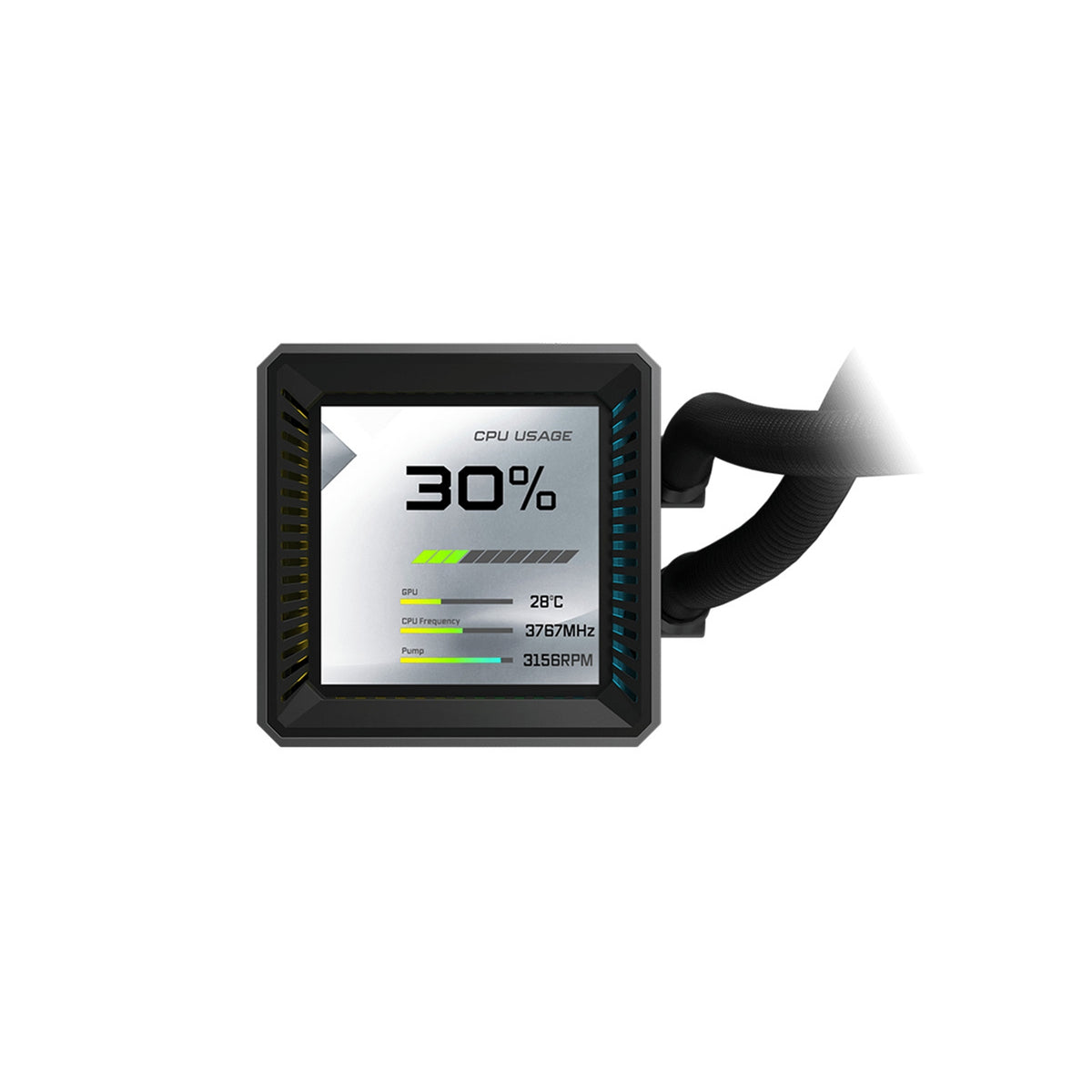

| Screen | Type:IPS LCD Size:3” Resolution:480 x 480 Display Color:24-bit Brightness:250 cd/m² Refresh Rate:60 Hz Frames Per Second (FPS):60 FPS Connector:USB Type-C to Motherboard 9-Pin |
| Tubing | Material:IIR + EPDM Length:450mm |
| Warranty | AIO Cooler Module:6 years Display Module:2 years |
-
