Asrock TC-1300T power supply unit 1300 W 20+4 pin ATX ATX Black

1300W, ATX 3.1, 135mm Striped Axial FDB Fan, 180mm x 150mm x 86mm

Key Features

• 80 PLUS® TITANIUM Certified
• Cybenetics TITANIUM and LAMBDA A+ Certified
• ATX3.1 & PCIe5.1 Ready
• Fully Modular Cable Design
• Native 12V-2x6 Connector Dual Color Design with TempGuard
• 100% Highly Reliable Japanese Capacitors

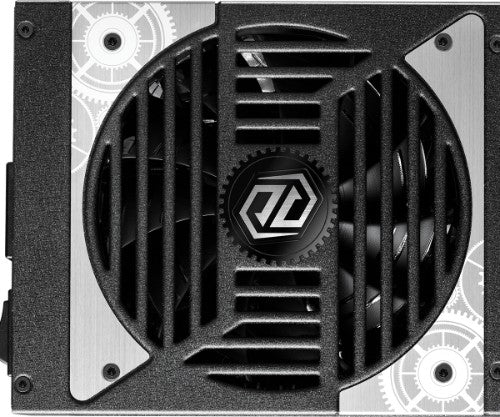

• 135mm Striped Axial FDB Fan

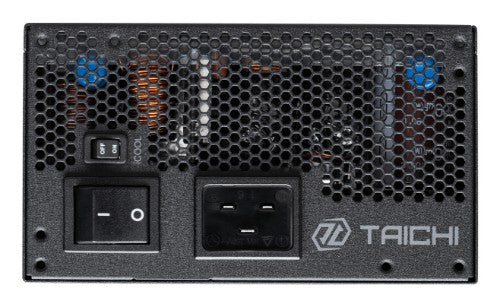

• iCool Intelligent Fan Control Mode
• 5V BOOST Mode

Description

Powerful Future
BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock TAICHI series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

+5V BOOST Mode
Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

iCOOL Intelligent Fan Control Mode
●iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

80 PLUS & CYBENETICS TITANIUM CERTIFIED
The TAICHI Series Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.

CYBENETICS LAMBDA A++
The Taichi TC-1300T power supply operates at less than 15 dB of noise on average, earning the prestigious Cybenetics Lambda A++ certification. This recognition underscores the Taichi series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

Infineon CoolMOS + SiC SBD
The industrial-leading components deliver high efficiency and reliability.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Titanium
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Cybenetics certification	Titanium
Cybenetics noise rating	A++
Design
80 PLUS certification	80 PLUS Titanium
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
On/off fan switch	Yes

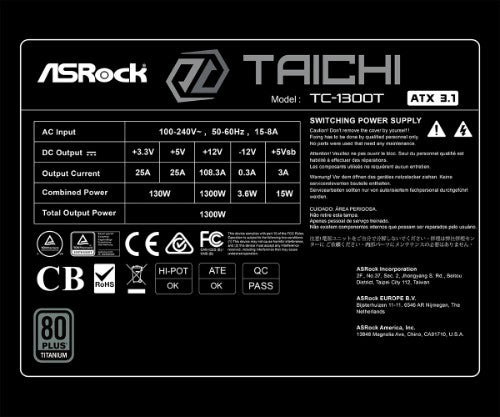

Power
Total power	1300 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 A
Power protection features	Over current, Over voltage, Overheating, Short circuit, Under voltage, Over power

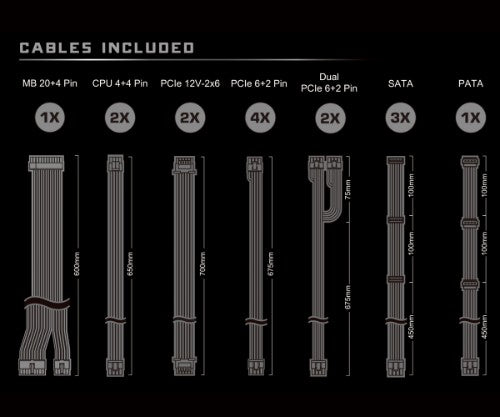

Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	100,450,650 mm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	8
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes

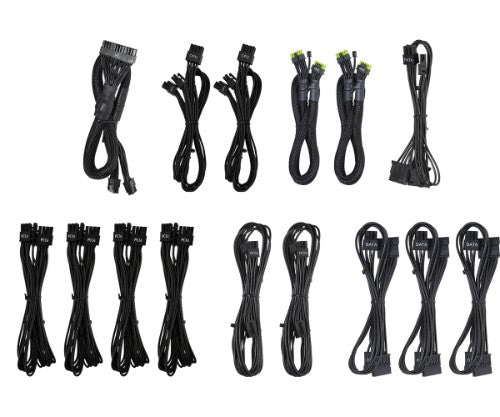

Cabling type	Fully-Modular
ATX power connector (12+4 pin)	Yes
Number of EPS connectors	2
Number of SATA power cables	3
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Titanium
