ASUS AAS01R 124.5 cm (49") Desk Black

ROG Ergo Monitor Arm AAS01R – Mechanical Spring Monitor Mount with Desk Clamp and Grommet Mount, Holds Up to 49-inch* within 13.5kg, Pivot/Swivel/Tilt/Rotation/Height Adjustable, Double-sided Cable Management, VESA 100 x 100 mm

Key Features

• Wide-Ranging Compatibility: Compatible with flat (3-13.5kg) and curved (3-10.5kg) screens featuring standard VESA 100x100mm mounts.
• Effortless Full Adjustment: A mechanical spring system allows for height, tilt, swivel, pivot, rotation, and distance adjustments

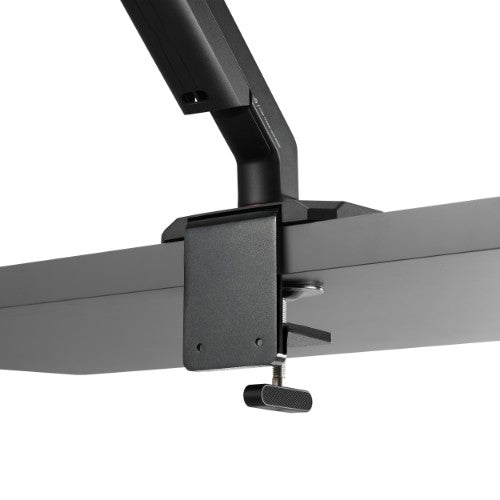

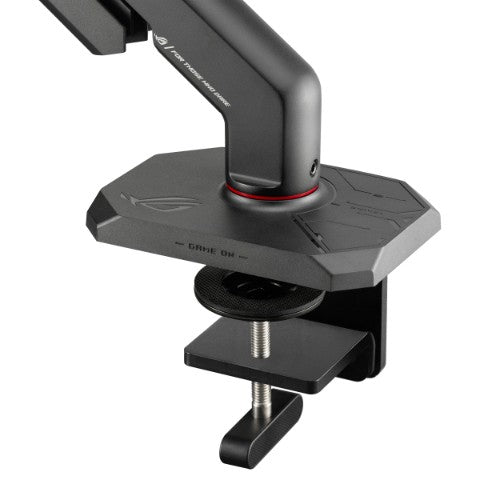

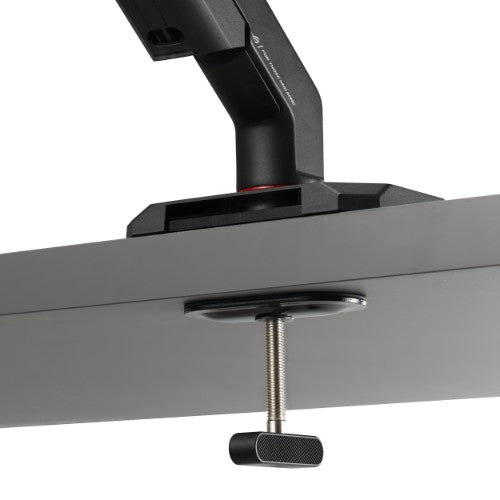

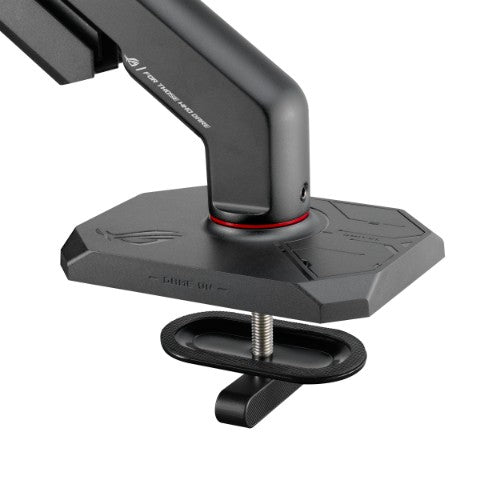

• Versatile Mounting: Support switchable desk clamp and grommet base mounting for versatile Installation

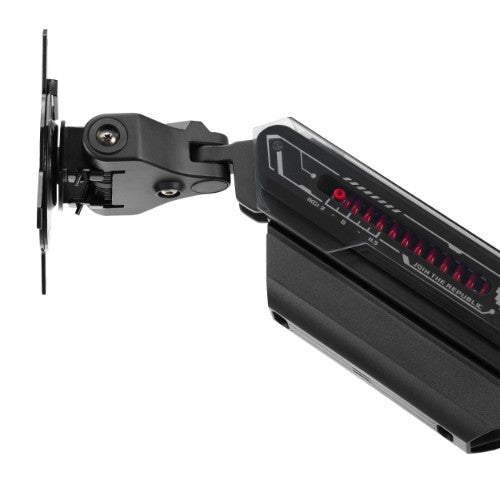

• Build for Ultra-Wide Monitors: Adjustable tension screw on the tilt head allows tightening to prevent large screens from sagging
• Tested to Ensure Durability: Undergoes stringent durability checks, including a 10,000-cycle range-of-motion test
• Clutter-Free Setup: Double-sided cable management design keeps your desktop neat and organized
• *Based on internal test on ROG 49-inch monitor (up to 10.5kg max. support for curved monitors)

Description

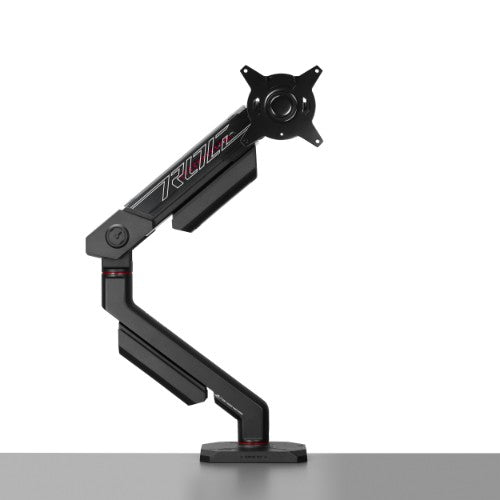

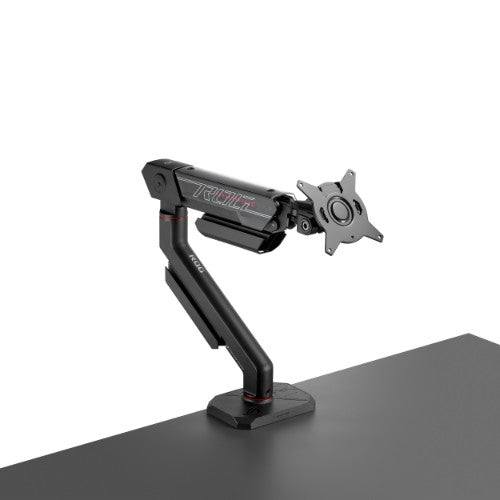

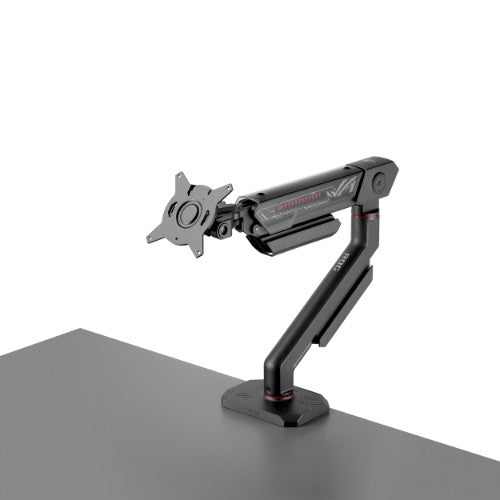

ROG ERGO MONITOR ARM
FREEDOM TO MOVE, FREEDOM TO GAME
Precision and Comfort
for Your Battlestation
Level up your gaming experience with the ROG Ergo Monitor Arm. Its compact bracket design maximizes desk space and provides perfect viewing angles with extensive height, tilt, and swivel adjustments for ultimate ergonomic comfort.

Specifications

Mounting
Maximum weight capacity (per display)	13.5 kg
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	13.5 kg
Maximum screen size	124.5 cm (49")
Extension arm (max)	63.8 cm
Clamp mount desk thickness (max)	8 cm
Mounting hole range	10 - 45 mm
Maximum weight capacity (per curved/ultra-wide display)	10.5 kg
Ergonomics
Cable management	Yes
Height adjustment	Yes
Pivot angle	0 - 360°
Swivel angle range	-90 - 90°
Tilt angle range	-25 - 80°
Angle of rotation	360°
Pan range	0 - 360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Technical details
Mounting type	Desk
Product colour	Black
Cable management	Yes
Weight & dimensions
Width	578 mm
Depth	656 mm
Height	154 mm
Weight	5.1 kg
Package width	775 mm
Package depth	135 mm
Package height	232 mm
Package type	Box
Package weight	6.6 kg
Packaging data
Package width	775 mm
Package depth	135 mm
Package height	232 mm
Package type	Box
Package weight	6.6 kg
Quantity per pack	1 pc(s)
Other features
Mounting type	Desk
Mounting	Clamp/Grommet
