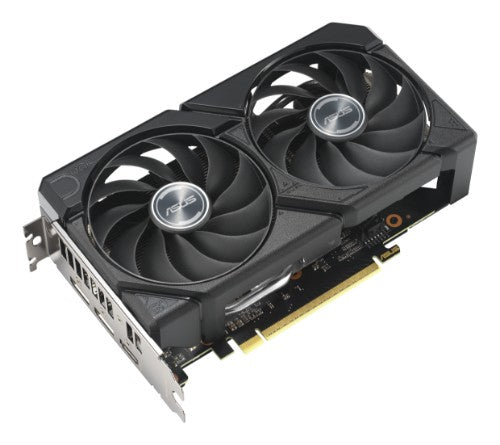

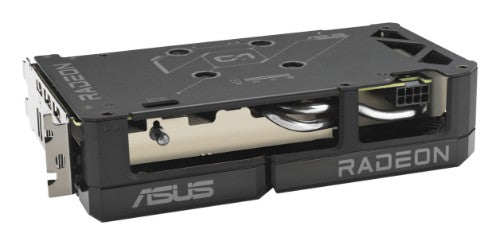

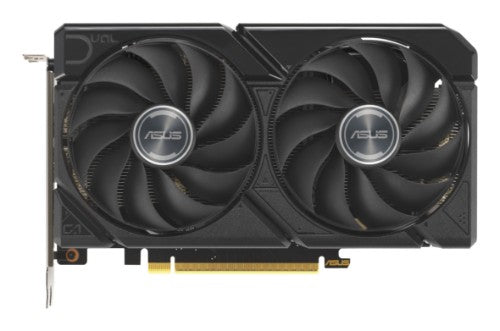

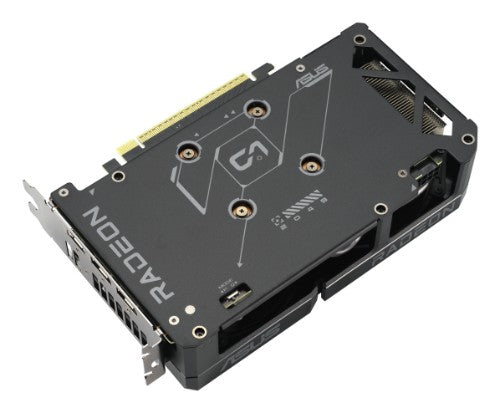

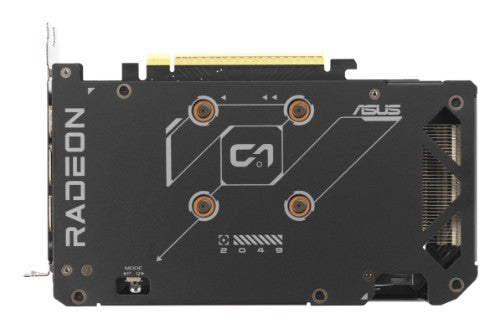

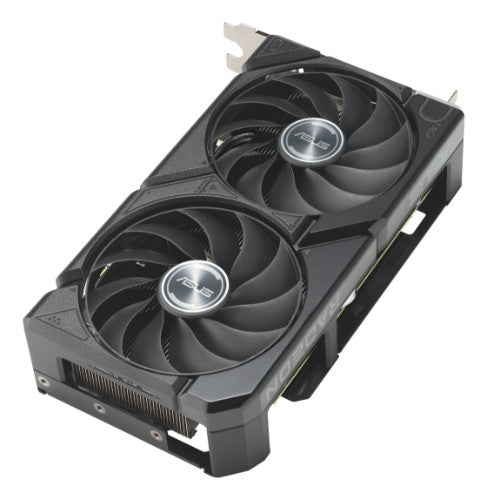

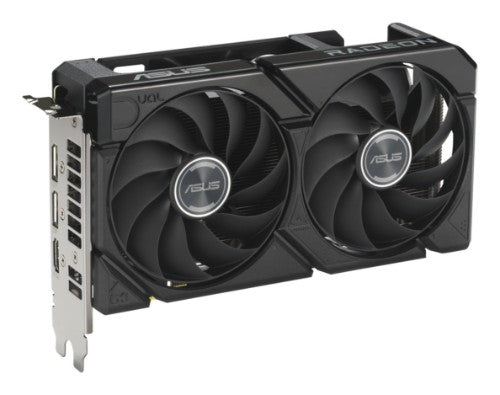

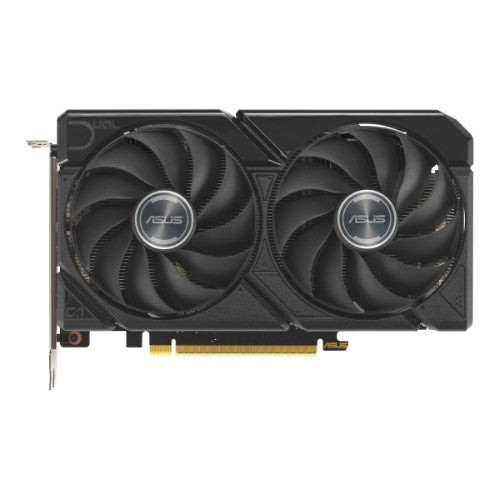

ASUS Dual -RX9060-8G AMD Radeon RX 9060 8 GB GDDR6

Dual Radeon RX 9060 8GB GDDR6

Description

Dual Radeon™ RX 9060
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

Specifications

Processor
Graphics processor family	AMD
Processor boost clock speed	2990 MHz
Stream processors	1792
Parallel processing technology support	Not supported
Maximum displays per videocard	3
CUDA	No
Maximum resolution	7680 x 4320 pixels
Graphics processor	Radeon RX 9060
Processor boost clock speed (OC mode)	3000 MHz
Processor boost clock speed (Gaming mode)	2410 MHz
Memory
Discrete graphics card memory	8 GB
Data transfer rate	18 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR6
Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 5.0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
Performance
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	2 fan(s)
Cooling type	Active
Product colour	Black
Number of slots	2.5
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W
Weight & dimensions
Number of slots	2.5
Height	120 mm
Depth	49 mm
Length	202 mm
Technical details
Cooling type	Active
Product colour	Black
TV tuner integrated	No
System requirements
Minimum system power supply	550 W
Packaging content
Manual	Yes
Packaging data
Manual	Yes
