ASUS

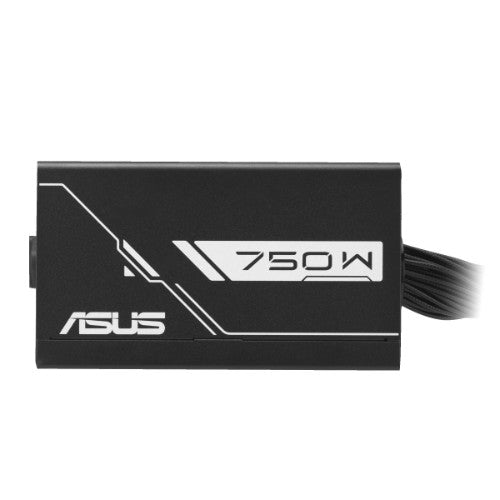

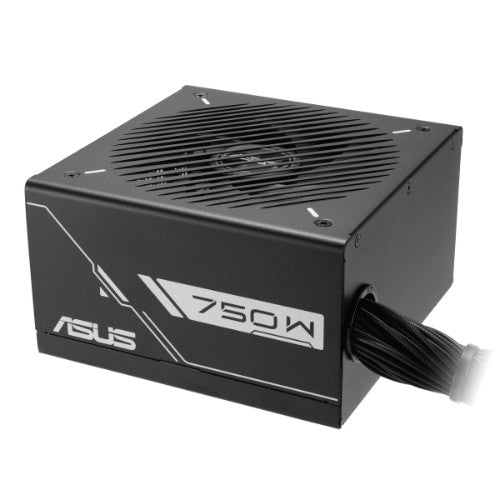

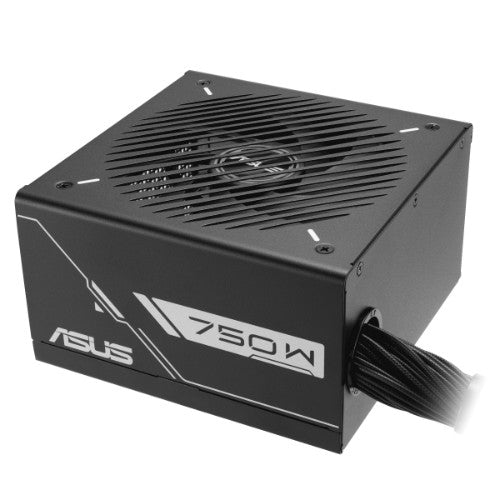

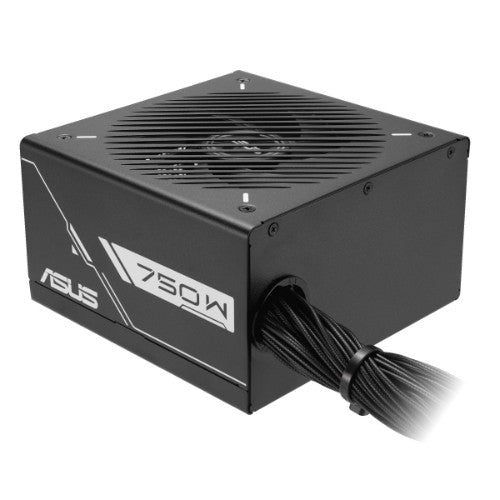

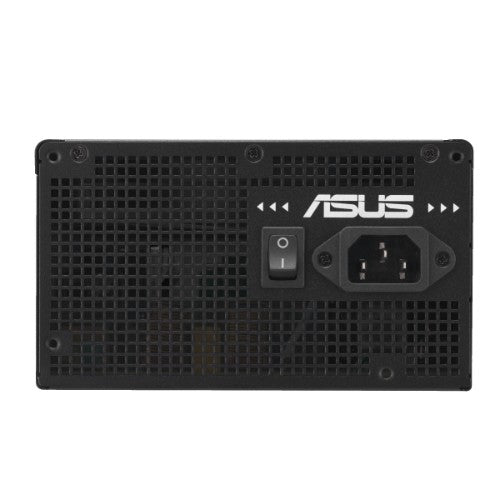

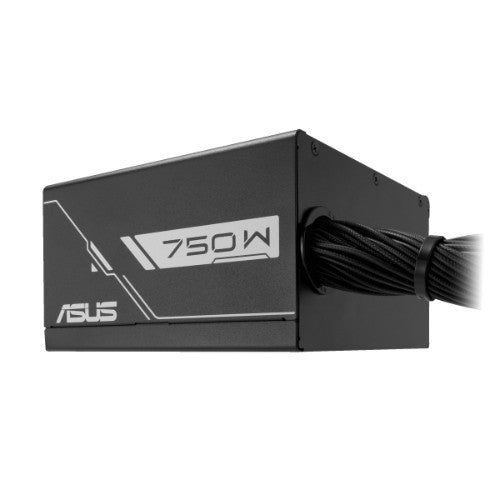

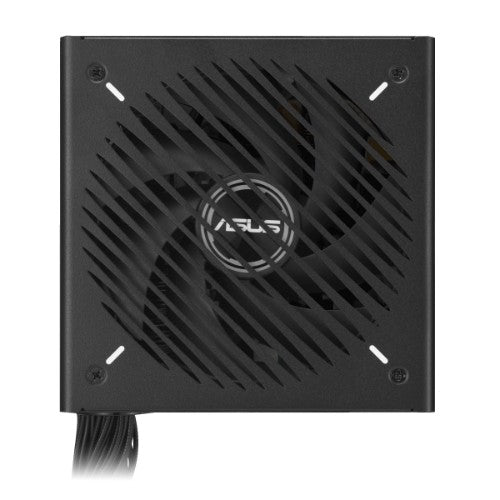

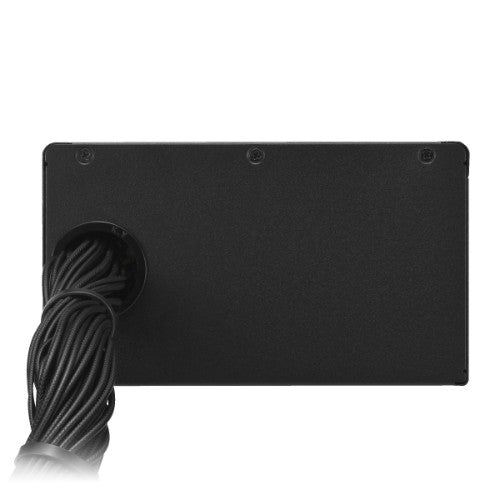

ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX

SKU 90YE00Y0-B0NA00
£57.88
£57.88
Excluding taxes
750W, 80+ Bronze, ATX12V, Active PFC, 100-240Vac, 2.2 kg

Key Features

  • Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
  • An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components
  • Etched cables can be bent easily during installation
  • 6-year warranty included

Description

ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.

Specifications

Cooling
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
Purpose PC
Mean time between failures (MTBF) 120000 h
Bearing technology Ball bearing
Design
80 PLUS certification 80 PLUS Bronze
Product colour Black
Fan diameter 13.5 cm
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan location Top
Cooling type Active
Power
Total power 750 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 750 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Power protection features Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length 60 cm
SATA power cable length 120,400 mm
Peripheral (Molex) power cable length 120,400 mm
CPU power cable length 80 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 3
PCI Express power connectors (8-pin) 3
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Cabling type Non-Modular
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Weight 1.92 kg
Packaging data
Package depth 196 mm
Package width 340 mm
Package height 115 mm
Package type Box
Package weight 3 kg
Certificates
80 PLUS certification 80 PLUS Bronze
