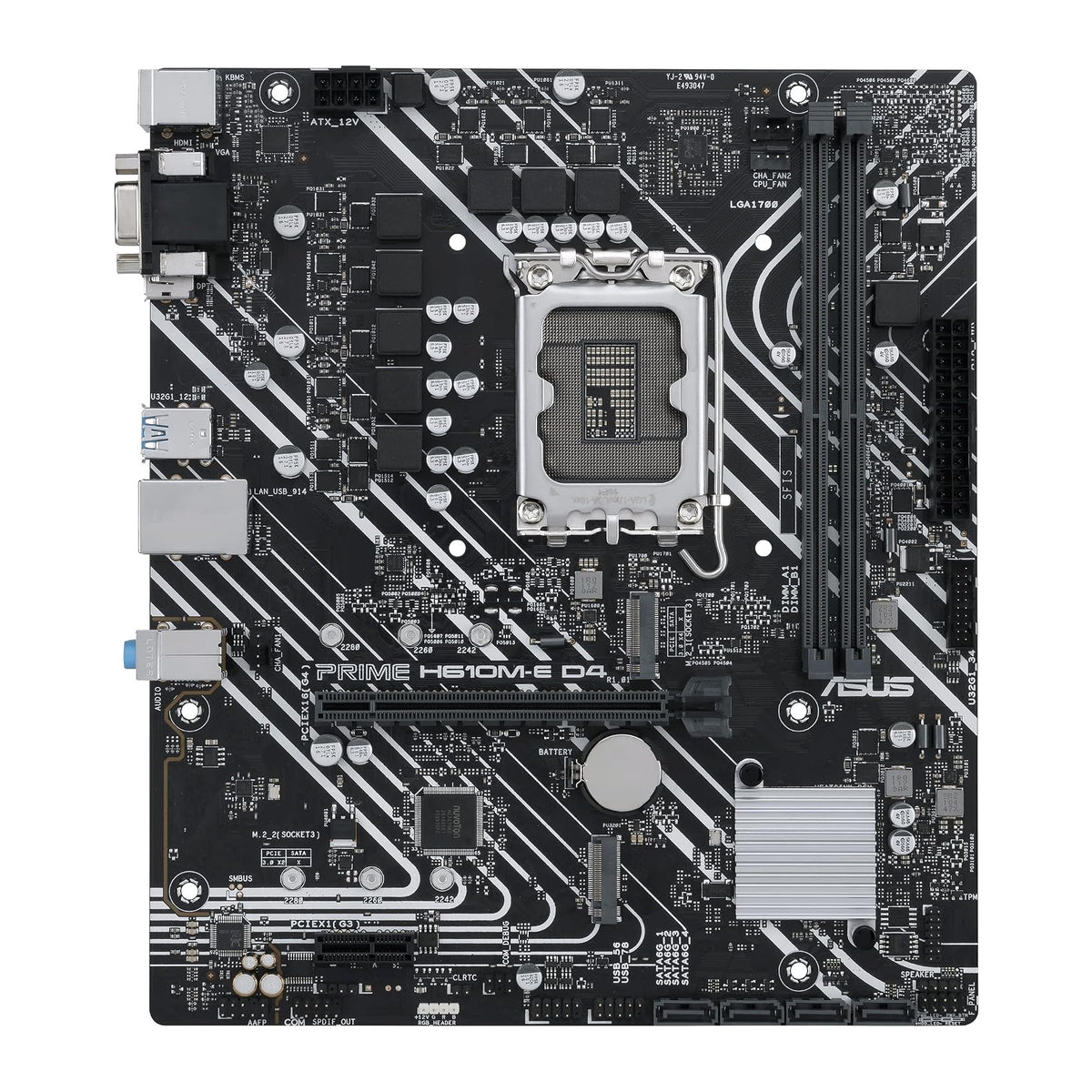

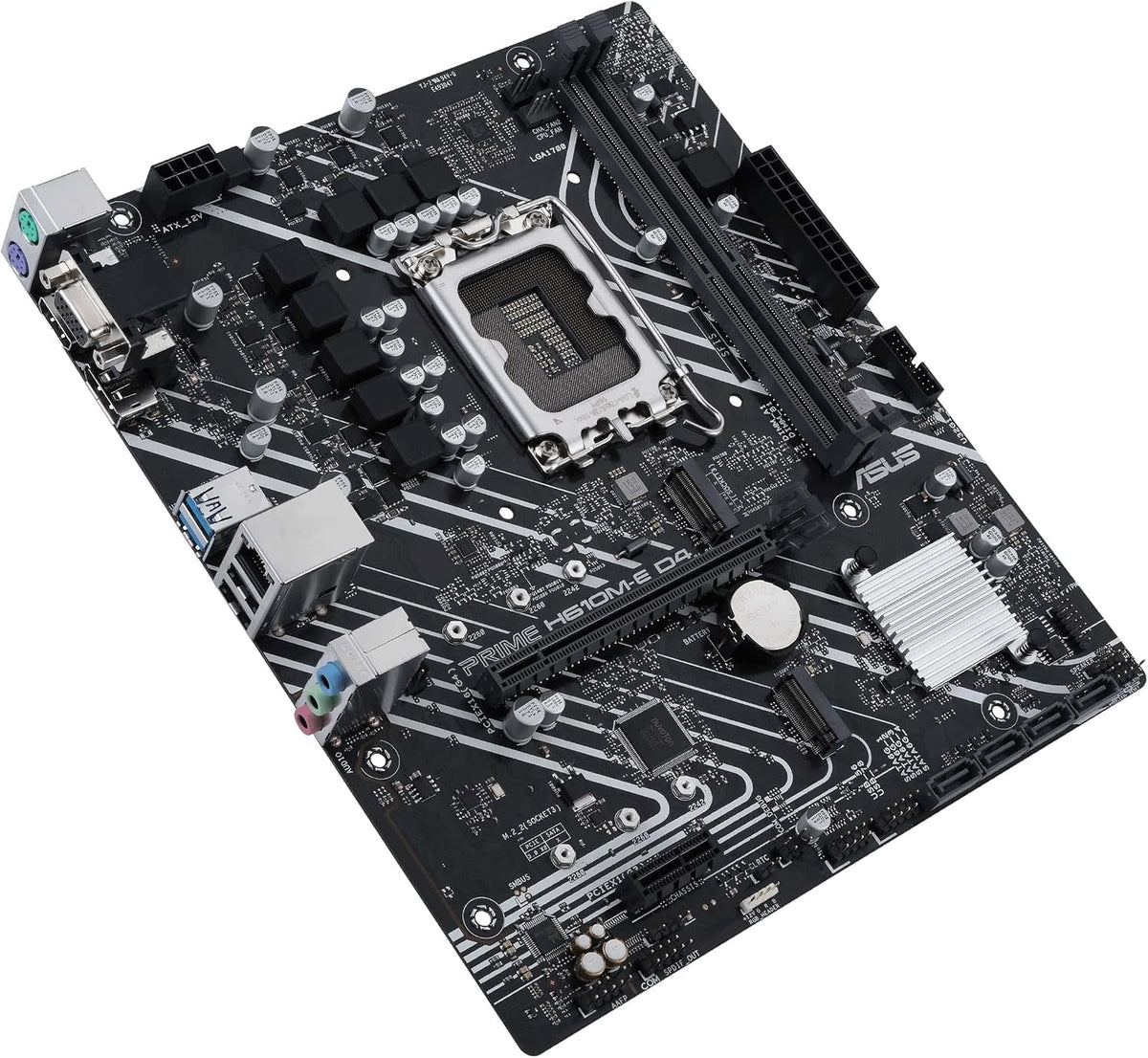

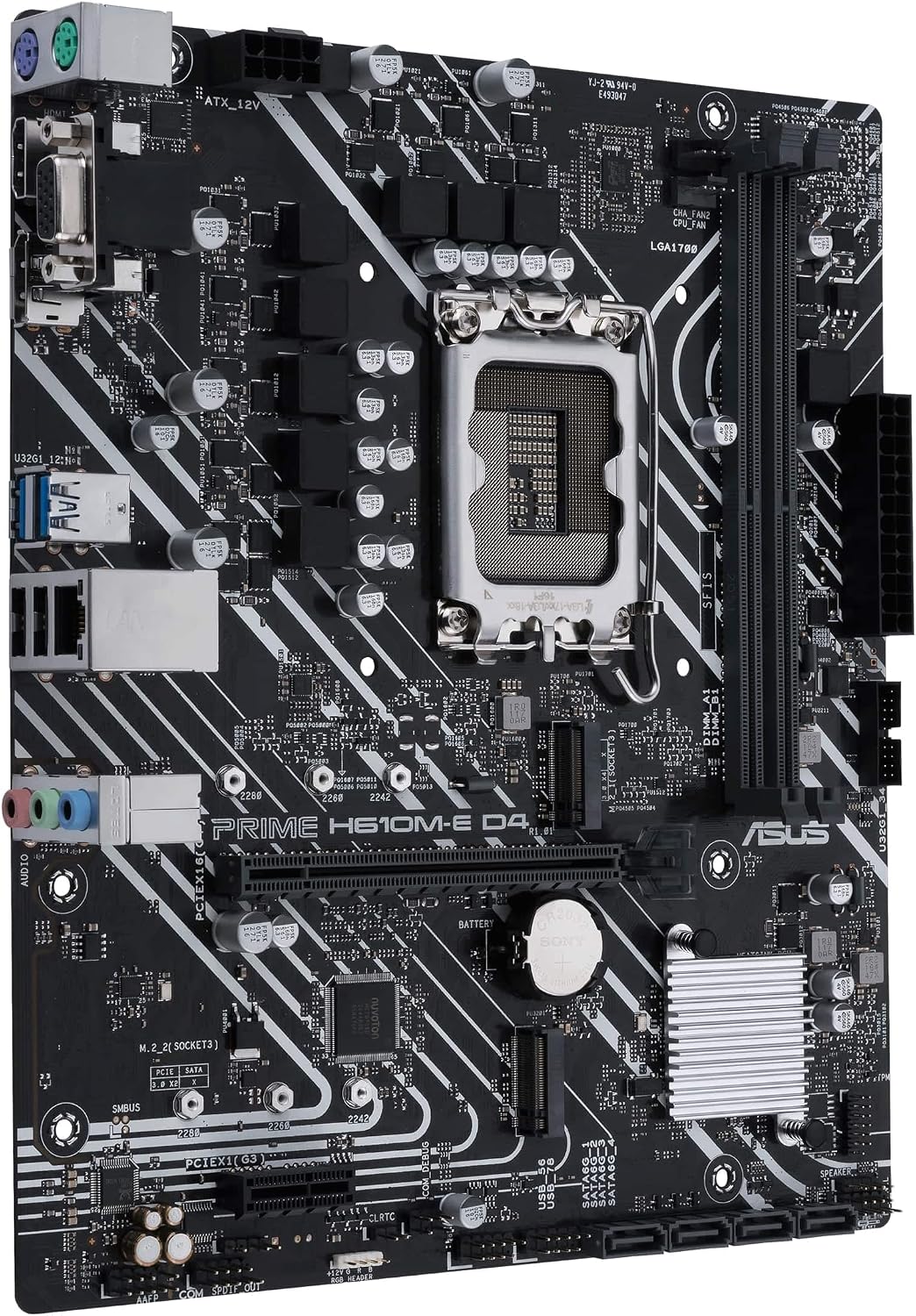

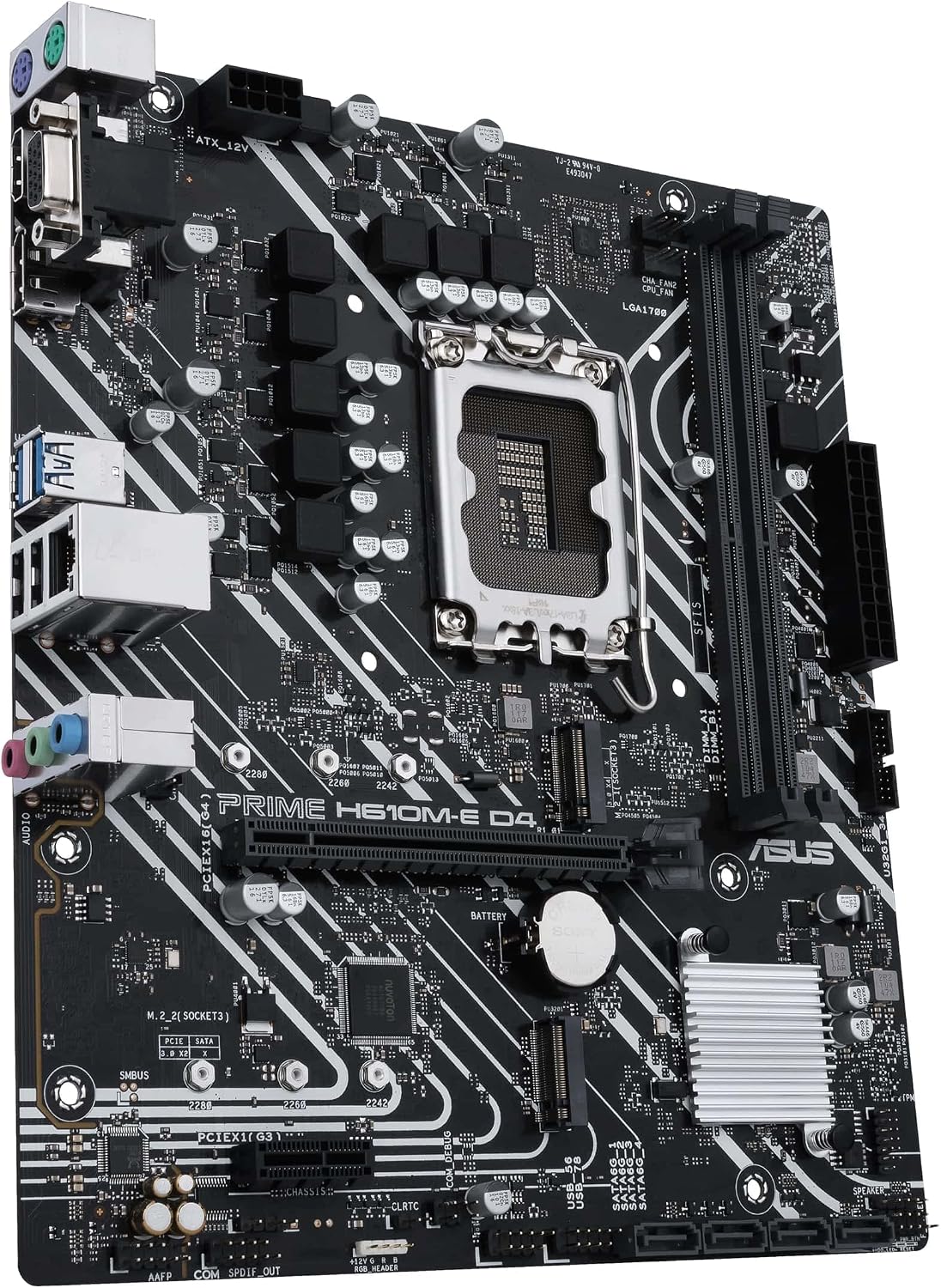

The ASUS PRIME H610M-E D4-CSM is a compact micro-ATX motherboard for PC builders putting together a desktop for everyday work, home use or a small office. Its LGA1700 socket supports compatible Intel Core processors, as well as Pentium Gold and Celeron models.

With two DDR4 memory slots, dual M.2 storage and four SATA ports, the board gives builders several options for memory and drives in a compact system. Rear DisplayPort, HDMI and D-Sub outputs offer display connections when paired with a processor that supports integrated graphics. A PCIe 4.0 x16 slot accommodates a compatible graphics card, while onboard Gigabit Ethernet and USB 3.2 Gen 1 provide wired networking and peripheral connectivity. The CSM edition also supports ASUS Control Center Express for IT endpoint management.

Key features

• Intel H610 chipset and LGA1700 processor socket
• Two DDR4 DIMM slots support up to 64GB of memory
• Two M.2 slots support 2242, 2260 and 2280 drives
• Four SATA 6Gb/s ports for additional storage
• PCIe 4.0 x16 and PCIe 3.0 x1 expansion slots
• DisplayPort, HDMI and D-Sub outputs for compatible processors
• Rear USB 3.2 Gen 1 Type-A ports and Realtek 1Gb Ethernet
• Fan Xpert 2+ and ASUS 5X Protection III features

Compatibility

The board supports compatible 14th, 13th and 12th Gen Intel Core processors, plus Pentium Gold and Celeron processors, using the LGA1700 socket. Memory must be DDR4; it has two DIMM slots and supports non-ECC unbuffered memory. Display output depends on the installed processor's graphics capability. Check processor and memory compatibility before purchase. Good to know: storage drives and the processor are not included; the box contents include two SATA cables, an I/O shield, an M.2 SSD screw package, a support DVD, an ACC Express activation key card and a user guide.

In the box

• ASUS PRIME H610M-E D4-CSM
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• 1 x Support DVD
• 1 x ACC Express Activation Key Card
• 1 x User guide

Specifications

This board brings essential storage, expansion and display connections together in a compact format, with CSM management support for systems that need straightforward IT oversight.
