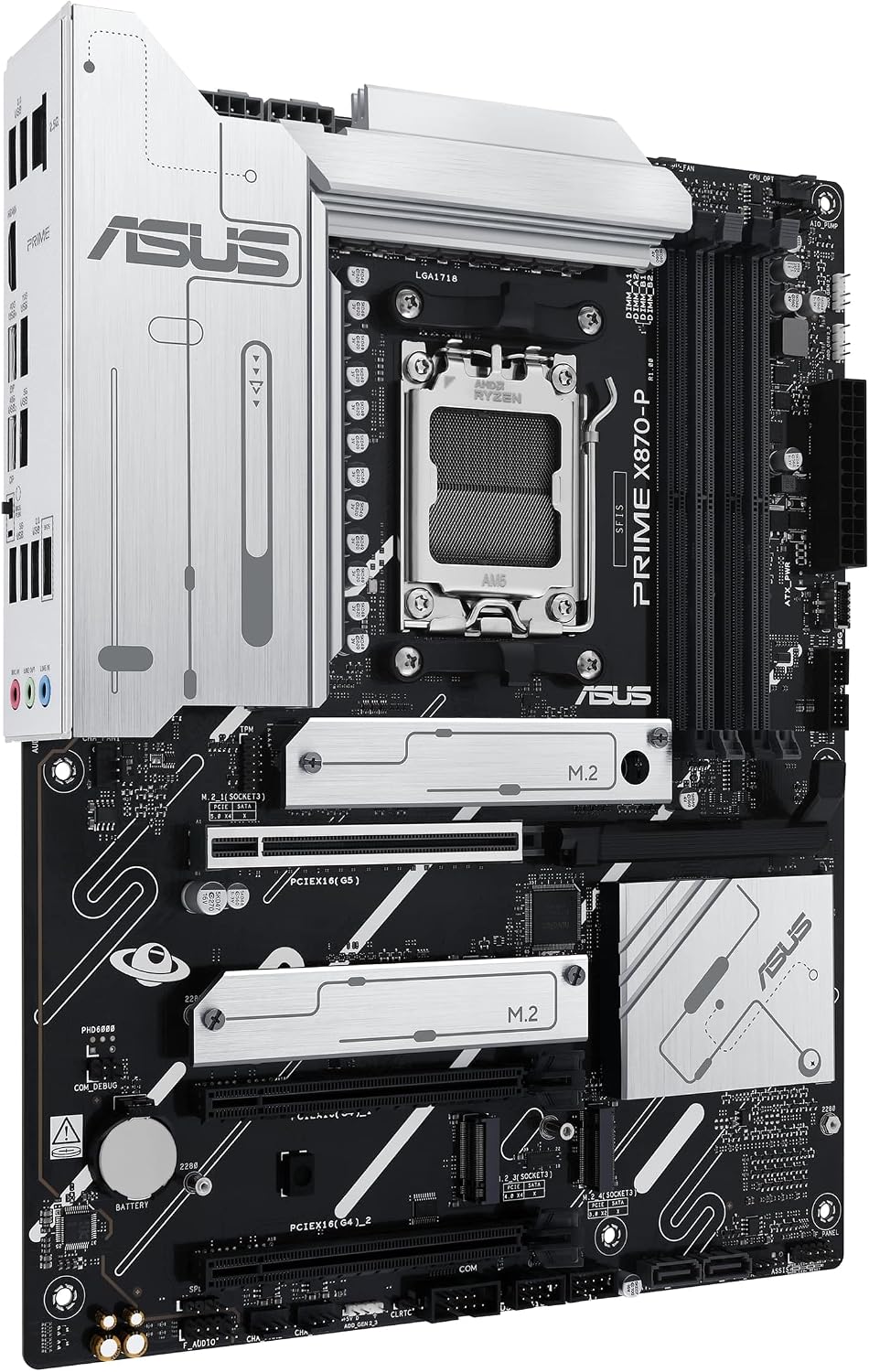

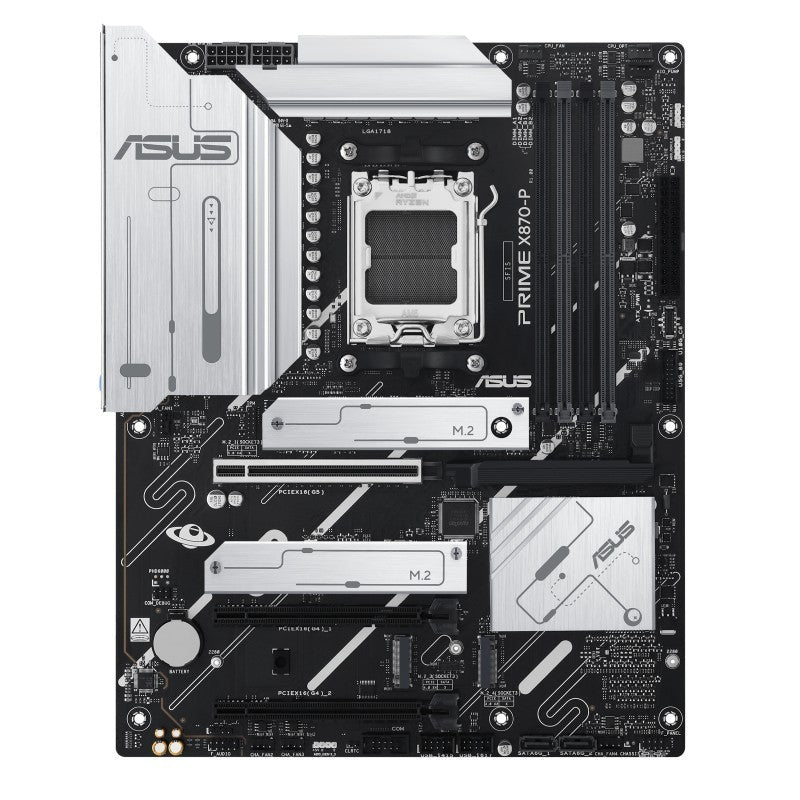

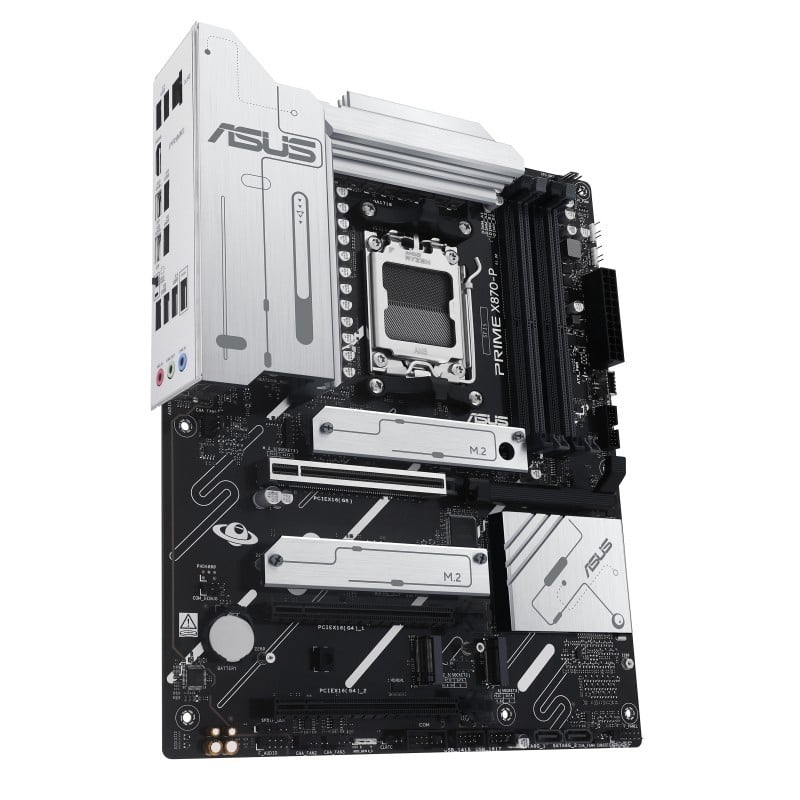

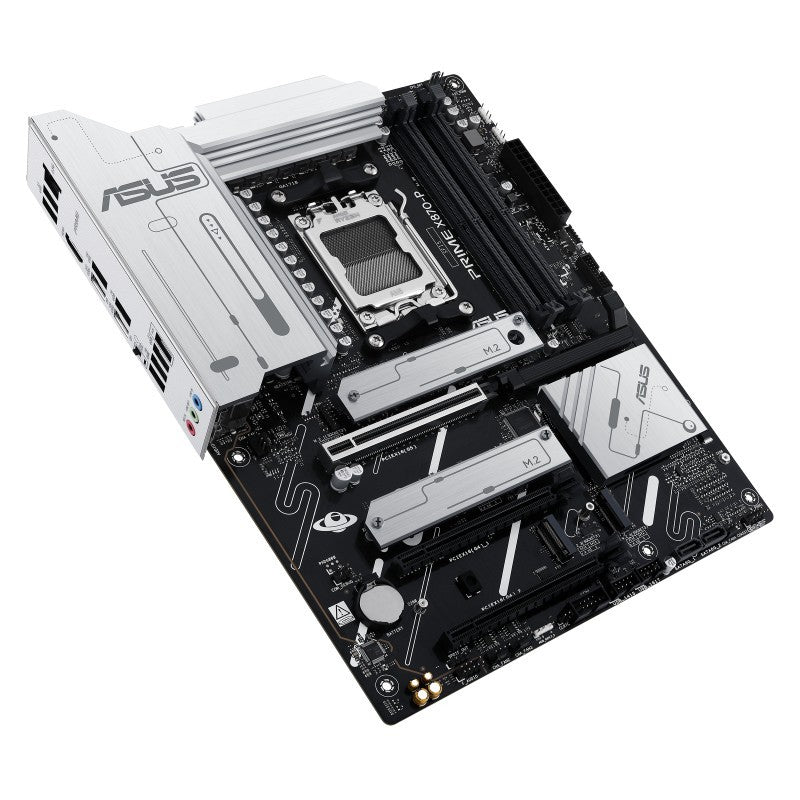

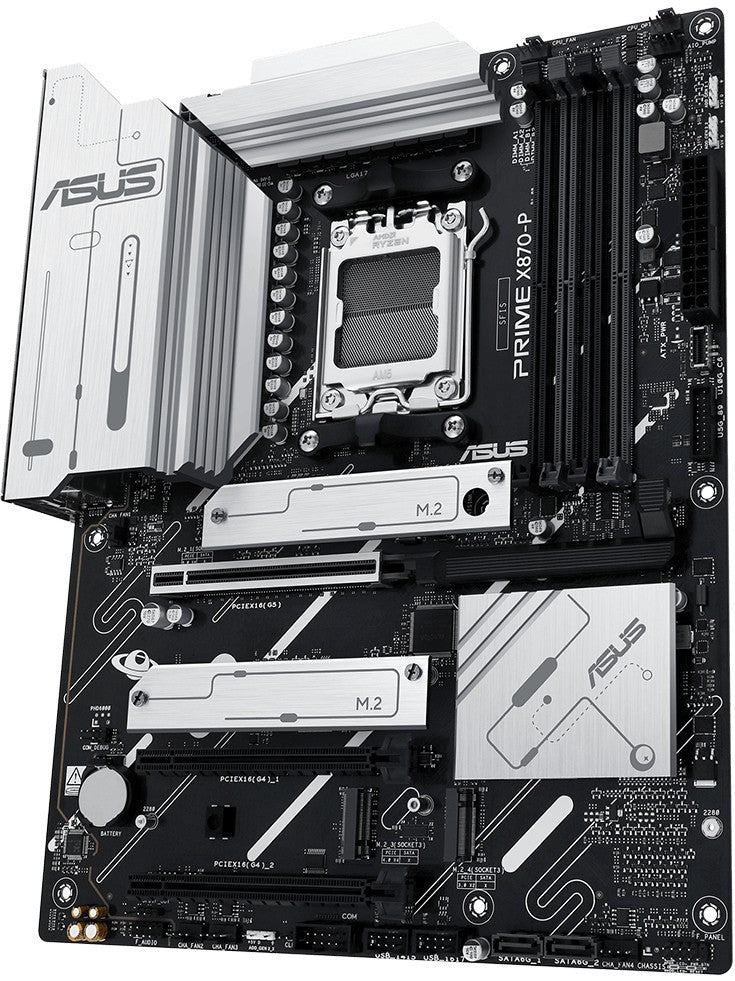

The ASUS PRIME X870-P is an ATX motherboard for desktop PC builders using AMD Ryzen 9000, 8000 or 7000 Series processors. It suits a new performance focused PC for gaming, creative work or demanding everyday applications, with a platform that offers room for fast memory, graphics and storage.

Its AM5 socket and AMD X870 chipset bring support for PCIe 5.0 graphics and NVMe storage, while four M.2 slots make it practical to add several SSDs. USB 40Gbps Type-C connectivity supports fast external drives and other devices, and the two Type-C ports can also be used for up to two external 4K displays. ASUS adds a robust power design, enlarged VRM heatsinks and multiple cooling and tuning options for builders who want to configure their system to suit its workload.

Key features

• Four DDR5 DIMM slots use a dual-channel memory architecture and support AMD EXPO and ASUS Enhanced Memory Profile.
• Four M.2 slots include one PCIe 5.0 x4 slot, two PCIe 4.0 x4 slots and one PCIe 3.0 x2 slot.
• A PCIe 5.0 x16 SafeSlot with Q-Release simplifies fitting and removing a graphics card.
• Two USB 40Gbps Type-C ports provide high bandwidth for compatible external storage and devices.
• Realtek 2.5Gb Ethernet provides a wired network connection for low latency gaming and large file transfers.
• AI Cooling II adjusts fan speeds in response to CPU temperatures.
• M.2 Q-Latch makes installing or removing compatible M.2 SSDs easier.
• Q-LED Core uses colour coded lights during startup to help troubleshoot the system.

Compatibility

The motherboard uses an AMD Socket AM5 processor and supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Check ASUS CPU and memory support information for the specific processor and memory kit before building. The ATX format needs a compatible case, and the system also needs a separate processor, memory, storage, power supply and graphics solution as required. Good to know: this is the PRIME X870-P model without Wi-Fi, so plan for a wired network connection or a separately purchased wireless adapter if needed.

In the box

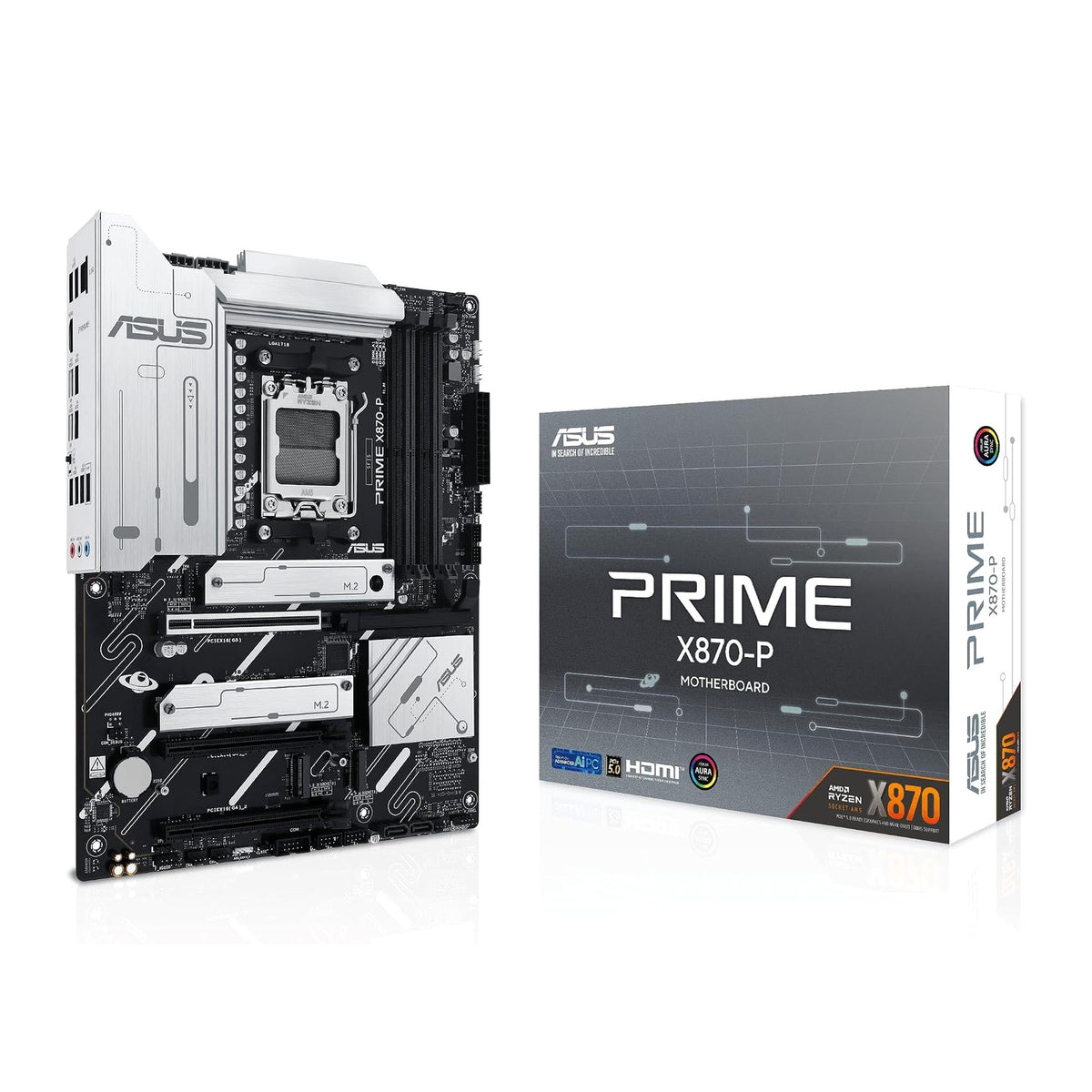

• ASUS PRIME X870-P

Specifications

For a Ryzen desktop build, the PRIME X870-P combines current generation expansion and storage support with useful setup and troubleshooting features, making it a capable foundation for a system you can expand over time.
