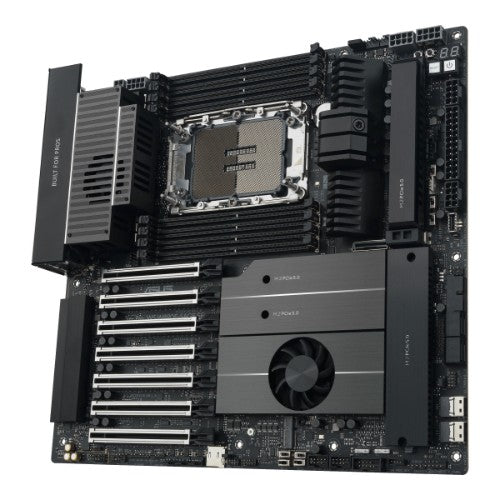

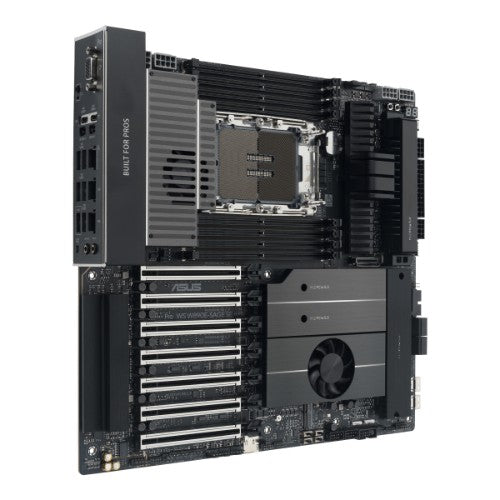

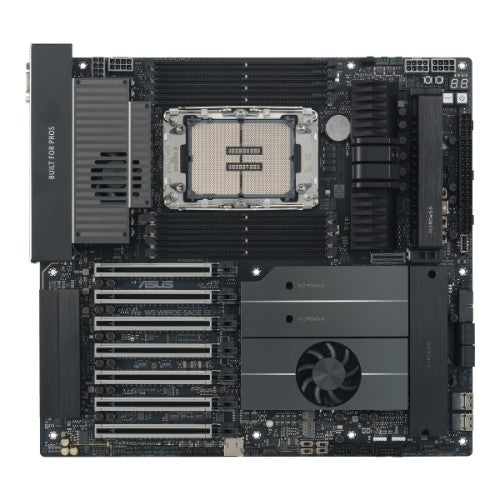

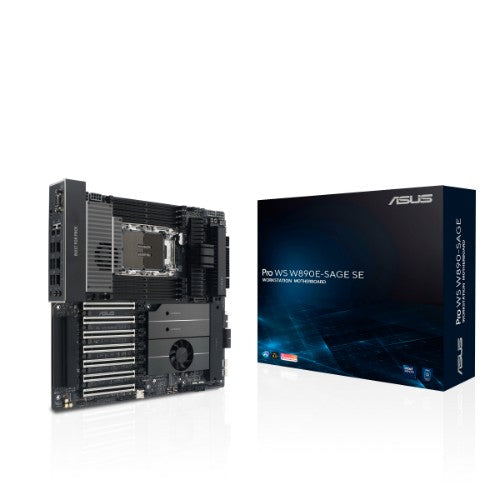

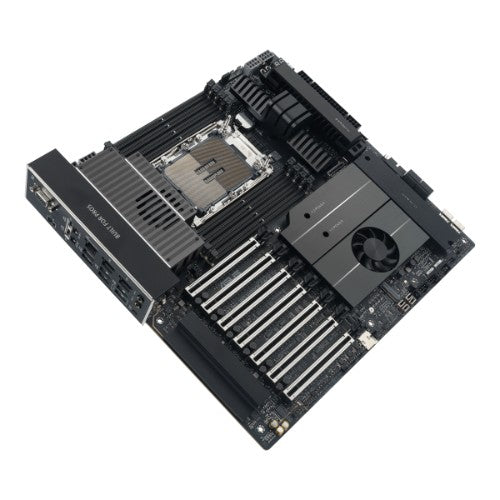

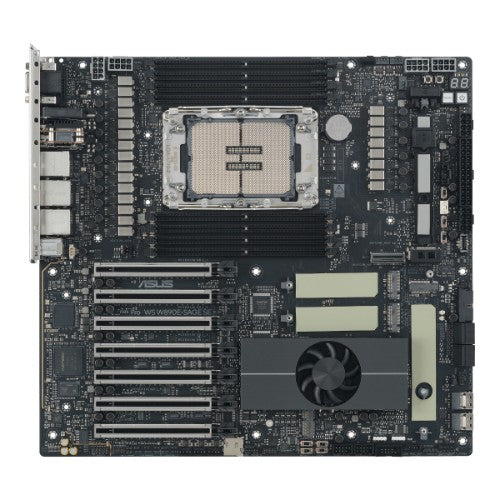

ASUS Pro WS W890E-SAGE SE Intel W890 LGA 4710-2 EEB

PRO WS W890E-SAGE SE Intel LGA4710-2 EEB Workstation Mainboard (7 PCIe 5.0 x16 slots, multi-GPU support, robust 16+2+2+1+2 power stage design, 4 PCIe 5.0 M.2 slots)

Key Features

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
• Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Description

The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Specifications

Internal I/O
Number of M.2 (M) slots	4
Number of M.2 (E) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III, SlimSAS
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Integrated SAS ports	2
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	5
Number of water pump connectors	1
Number of temperature sensor headers	1
Number of RGB LED pin headers	2
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
Supported processor sockets	LGA 4710-2
Parallel processing technology support	Not supported
Cooling type	Passive
Motherboard form factor	EEB
Component for	Workstation
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
RAID levels	0, 5, 1, 10
Supported processor sockets	LGA 4710-2
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	EEB
Component for	Workstation
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 4710-2
Processor socket	LGA 4710-2
Memory
Number of memory slots	8
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Octa-channel
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
RAID levels	0, 5, 1, 10
Number of storage drives supported	10
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	7680 x 4320 pixels

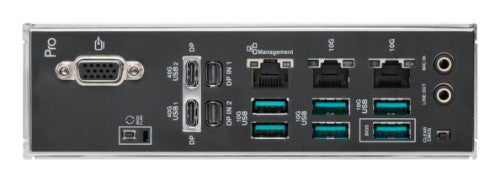

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
Mini DisplayPorts quantity	2
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	3
DVI-D ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB4 Gen 3x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
Supported processor sockets	LGA 4710-2
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	EEB
Component for	Workstation
Audio chip	Realtek ALC1220P
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
Number of M.2 (E) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	7
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
BIOS flashback button	Yes
Power
Power source type	ATX
Video
Maximum resolution	7680 x 4320 pixels
Packaging data
Package width	362 mm
Package depth	377 mm
Package height	103 mm
Package weight	3.7 kg
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Height	50 mm
Package width	362 mm
Package depth	377 mm
Package height	103 mm
Package weight	3.7 kg
Weight	3.4 kg
Width	305 mm
Depth	330 mm

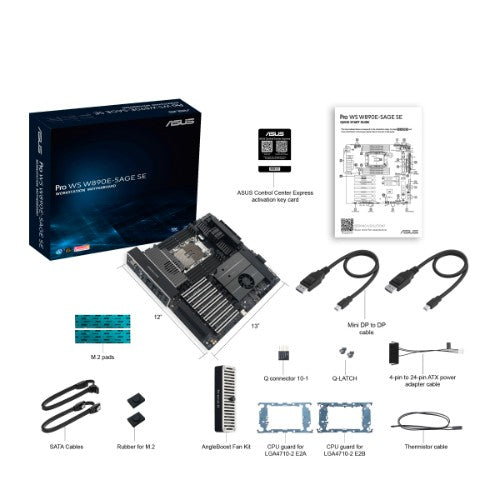

Packaging content
Cables included	SATA, DisplayPort
Screws included	Yes
Other features
Number of M.2 (E) slots	1
Height	50 mm
Package width	362 mm
Package depth	377 mm
Package height	103 mm
Package weight	3.7 kg
Mini DisplayPorts quantity	2
Weight	3.4 kg
