ASUS ThunderboltEX 5 interface cards/adapter Internal Mini DisplayPort, PCIe, USB 2.0, Thunderbolt 5

Thunderbolt 5, DisplayPort 2.1, PCIe 4.0 x4, JHL9580, Windows 11

Key Features

• Intel® certified Thunderbolt™ 5 add-on card
• Dual USB Type-C® ports support up to 130 watts total of fast charging, and up to 96W for one device
• Up to five Thunderbolt™ devices can be daisy-chained
• Up to 120 Gbps of bandwidth for superfast data transfers and video output
• DisplayPort™ 2.1 port supports up to three 8K 60 Hz displays with DSC

Description

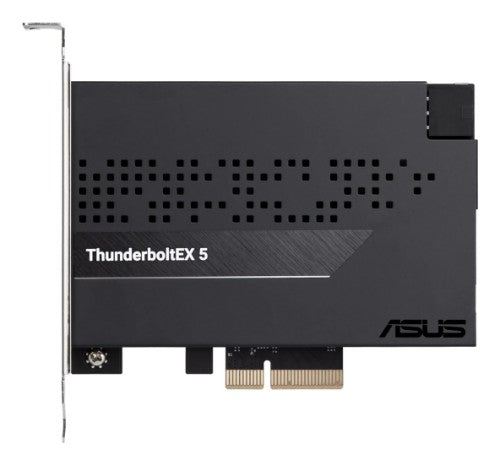

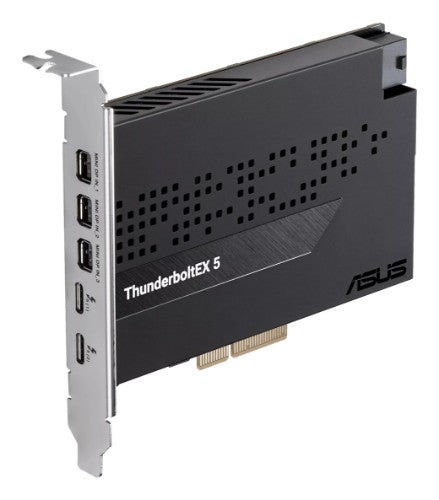

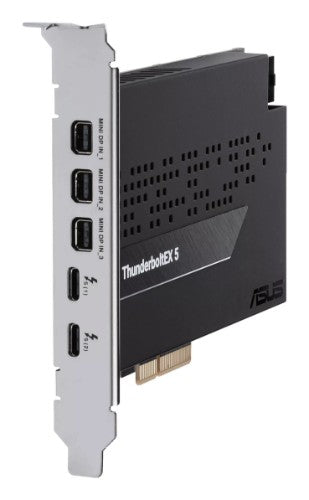

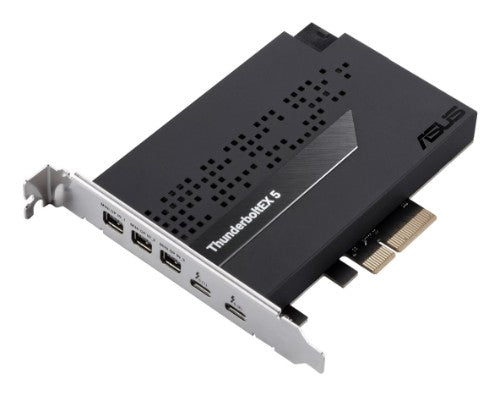

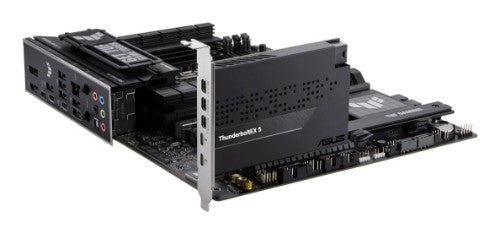

ASUS ThunderboltEX 5 Expansion Card : Dual Thunderbolt™ 5 USB‑C ports, DisplayPort™ 2.1, PCIe 4.0 x4 Interface

Experience Lightning-Fast Speed and Versatile Connectivity
The ASUS ThunderboltEX 5 card offers up to 120 Gbps of Thunderbolt™ 5 bandwidth, support for DisplayPort™ 2.1 with a compatible GPU, USB4® compatibility, plus support for up to five Thunderbolt™ devices in a daisy-chain and up to 130 total watts of fast charging.

Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.

*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.

One Cable, Multiple Devices
Simplify your setup by daisy-chaining multiple Thunderbolt™ devices to one Thunderbolt™ 5 port.

Optimized for Blistering Data Transfer Speeds

Specifications

Ports & interfaces
Internal	Yes
Output interface	Mini DisplayPort, PCIe, USB 2.0, Thunderbolt 5
Host interface	PCIe
Expansion card standard	PCIe 4.0
Technical details
Chipset	Intel JHL9580 Thunderbolt 5 Controller
Purpose	PC
Data transfer rate (max)	120 Gbit/s
Quantity per pack	1 pc(s)
Performance
Chipset	Intel JHL9580 Thunderbolt 5 Controller
Purpose	PC
Data transfer rate (max)	120 Gbit/s
Product colour	Multicolour
Colour
Product colour	Multicolour
Design
Purpose	PC
Internal	Yes
Product colour	Multicolour
Features
Chipset	Intel JHL9580 Thunderbolt 5 Controller
Data transfer rate (max)	120 Gbit/s
System requirements
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	88.9 mm
Depth	119.5 mm
Packaging data
Package type	Box
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Other features
Maximum resolution	7680 x 4320 pixels
Chipset	Intel JHL9580 Thunderbolt 5 Controller

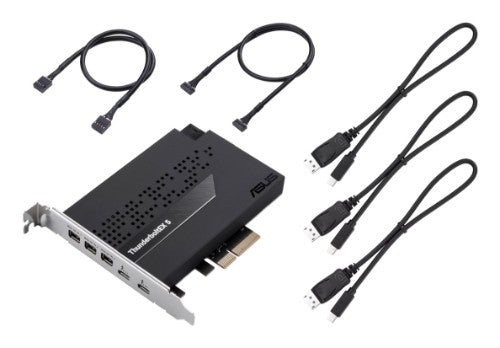

Packaging content
Package type	Box
