ASUS Triple Display USB-C Dock DC300 Docking USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

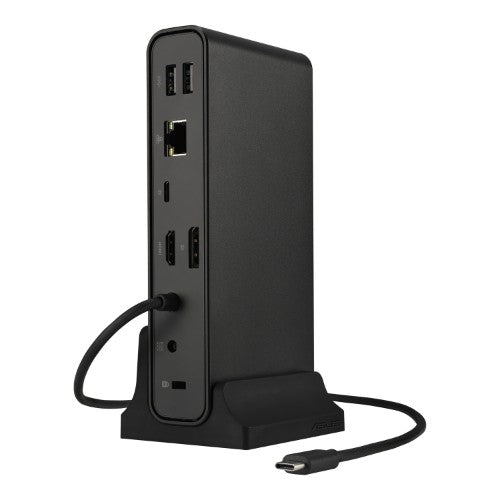

Triple Display USB-C Dock DC300

Key Features

• BUILT-IN more monitor connectivity
• Enables eight connections to peripherals at the same time
• One click to wake up your laptop with monitors
• Update laptop software remotely
• Power up to 90W
• Enjoy up to 10 Gbps data transfer speeds and charging via a USB-A or USB-C connection

Reasons To Buy

Compact productivity magic

ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organised while setting you up for work in the blink of an eye.

Ready for triple 4K displays

Connect up to three displays via HDMI®, DisplayPort™ and USB-C® for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock even supports up to three 4K displays for exceptional visuals.

Connect up to 8 devices

ASUS Triple Display USB-C Dock has a multitude of I/O ports: three external screens can be connected via HDMI®, USB-C® and DisplayPort™, two USB 3.2 Gen 1 Type-A ports support a keyboard and mouse, and there’s a USB-C® port, a USB Type-A port, an RJ45 network port, an audio jack for earphones, and a SD card reader for data transfers. That’s a total of 12 functions.

Connect at super speeds

Enjoy 10 Gbps data-transfer speeds via convenient USB-C® and USB-A ports — up to 4x faster than USB 3.0 — so large files and folders can be moved or copied in moments.

Charge fast, charge in tandem

ASUS Triple Display USB-C Dock supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C® port that delivers up to 15 watts.

One-button wake up

Press the dock’s power button to wake up your laptop and multiple connected monitors during standby mode.

Remote IT management

Enable IT management to update software with Wake-on-LAN (WoL) and PXE.

Enable IT management to update software with Wake-on-LAN (WoL) and PXE.

ASUS Triple Display USB-C Dock’s compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package — empowering you to get to work in moments.

Description

Compact productivity magic
ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors*1 — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye.

ASUS Triple Display USB-C Dock DC300

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DC-in jack	Yes
Connectivity technology	Docking
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Country of origin	China
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
Compatible memory cards	SD
Cable lock slot type	Kensington
Housing material	Metal, Plastic
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Power
Power source type	DC, USB
Output voltage	20 V
Output current	7.5 A
Power supply	150 W
USB cable length	0.6 m
Software
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	514 g
Width	160 mm
Depth	80 mm
Height	32 mm
Package width	235 mm
Package depth	210 mm
Package height	62.5 mm
Design
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Yes
Country of origin	China
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package width	235 mm
Package depth	210 mm
Package height	62.5 mm
Packaging content
Stand included	Yes
Manual	Yes
AC adapter included	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)
Logistics data
Commodity code	8471800000
