ASUS

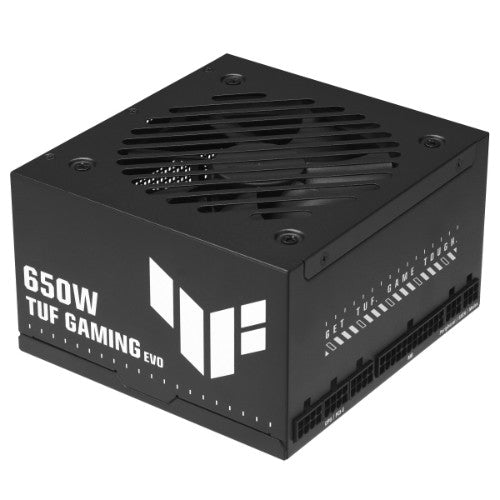

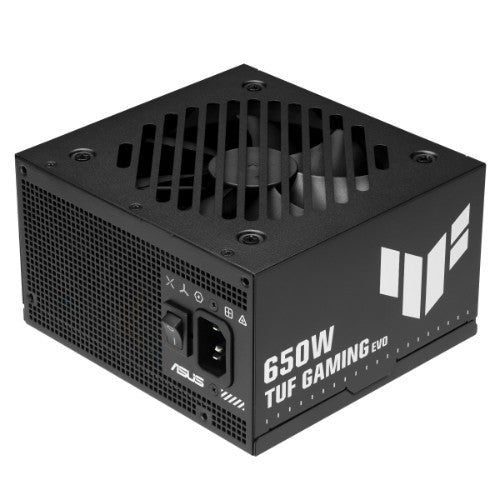

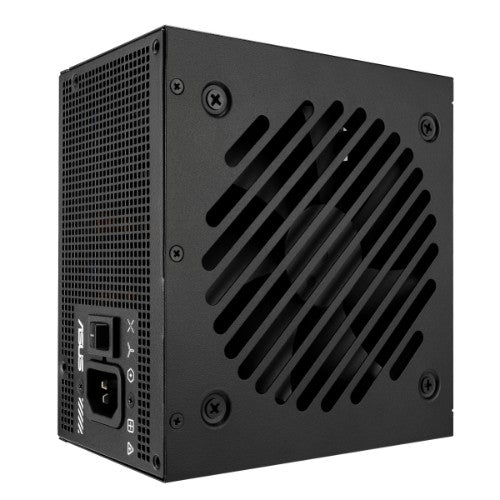

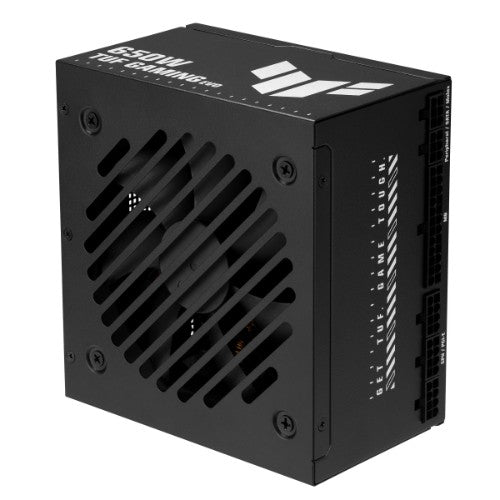

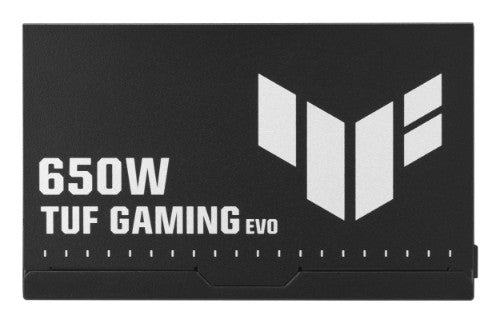

ASUS TUF-GAMING-650B-EVO power supply unit 650 W 20+4 pin ATX ATX Black

SKU 90YE00D6-B0NA00
£69.99
£53.75
£69.99
£53.75
Excluding taxes
TUF Gaming 650W Bronze EVO PSU

Key Features

  • Capacitors and chokes pass demanding tests to achieve military-grade certification.
  • ATX 3.1 compatible ensuring enhanced voltage and current regulation for the latest hardware.
  • Dual-ball fan bearings can last up to twice as long as sleeve bearings.
  • A Protective PCB coating protects against moisture, dust, and extreme temperatures.
  • 80 Plus Bronze certification due to low-ESR electrolytic capacitors and other premium components.
  • Fully modular design with premium cables helps create a clean and tidy setup.
  • Etched cables offer high flexibility for easy installation.

Description

Built For The Long Haul
TUF Gaming Bronze EVO series PSUs deliver dependable power with military-grade components, a robust cooling solution, and ATX 3.1 compatibility. High-quality capacitors and chokes endure rigorous testing to meet military specifications. The dual-ball fan bearings ensure longevity, making this PSU ideal for TUF Gaming rigs or any build designed for years of AAA gaming.

Specifications

Cooling
Number of fans 1 fan(s)

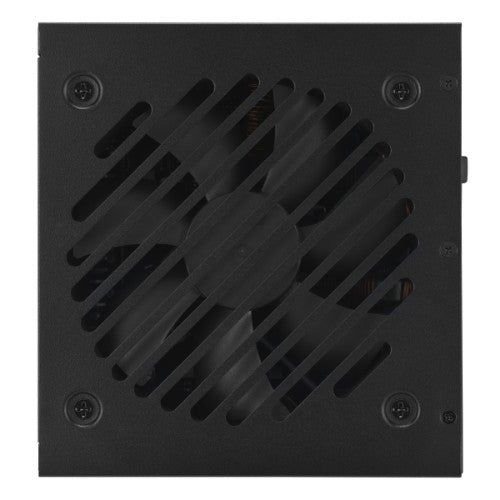

Fan location Top
Cooling type Active
Performance

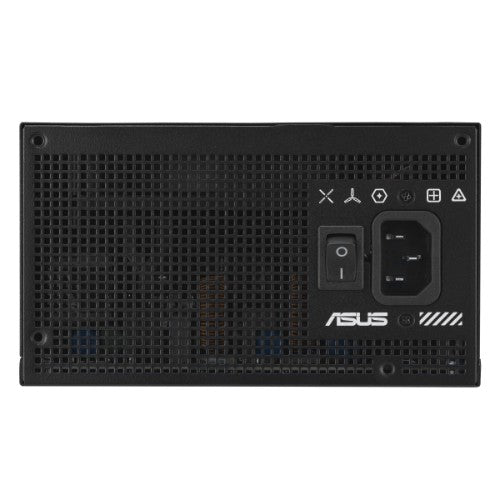

On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
Purpose PC
ATX version 3.1
Mean time between failures (MTBF) 120000 h
Bearing technology DBB
Design
80 PLUS certification 80 PLUS Bronze
Product colour Black
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan location Top
Cooling type Active
Power
Total power 650 W
AC input voltage 100 - 240 V
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 80 W
Combined power (+12V) 650 W
Combined power (+5V) 80 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 12 A
Max output current (+12V) 54.16 A
Max output current (+5V) 12 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power cable length 50 cm
SATA power cable length 400,120 mm
Peripheral (Molex) power cable length 400,120 mm
CPU power cable length 65 cm

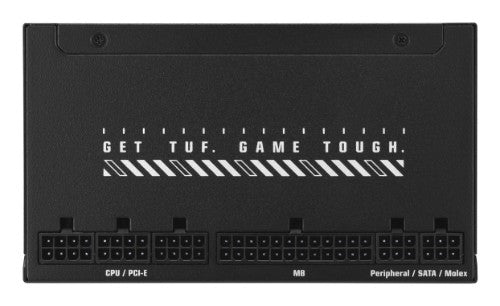

Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 4
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 2
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
Packaging content
Cables included CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width 140 mm
Depth 150 mm
Height 86 mm
Weight 1.25 kg
Packaging data
Cables included CPU, PCIe, Peripheral (Molex), SATA
Package depth 182 mm
Package width 282 mm
Package height 127 mm
Package type Box
Package weight 2.07 kg
Certificates
80 PLUS certification 80 PLUS Bronze
